Dust collecting equipment /Industrial Dust Collector/pulse bag dust collector
Model |
Air flow rate |
Total filter area | Chamber qty |
Quantity of filter bag | Pulse Valve |
Compressed air consumption |
Weight (without insulating layer) | |
Quantity |
Spec. | |||||||
(pcs) | (pcs) | (pcs) | (inch) | (N m³/min) | (kg) | |||
PPC32-4 | 8930 | 124 | 4 | 4 | 0.37 | 3400 | ||
PPC32-6 | 13390 | 186 | 6 | 6 | 0.55 | 5400 | ||
PPC64-4 | 17800 | 248 | 4 | 64 | 4 | 2 ½ | 1.2 | 6900 |
The introduction of dust collector:
DMC dust collector makes the compressed air as driving force for cleaning air, uses pulse injection organization releases the compressed air instantly and induces the severalfold secondary air into the filter bag at high speed to make the bags expand rapidly so as to impact,shake and reverse flow to clean the dust.
The products are a series of products with the filter bag for a set number 12, mainly in 24 bags, 36 bags, 48 bags, 60 bags, 72 bags, 84 bags, 96 bags, 112 bags, 120 bags.
The features of dust collector:
- High Purification efficiency, ability to handle large gas
- Stable performance,long service life
- Convenient operation and maintenance
- Suitable for dust removing of a variety of multiple points of dust producing
Structure of dust collector:
Dust catcher is made of five parts: the upper, middle, lower box, ash systems, and blowing system, blowing system include control instrument, solenoid valve, blowpipe, and gas bge .Box include inlet and outlet box, perforated plate, filter material, dragon skeleton and Venturi tube . Details please refer to the operating instruction manual.
Operating principle of dust collector:
Dusty gas from the air inlet of dust collector into the middle and lower box, through the bag filter's effect, separate the dust from gas, dust was adsorbed on the surface of dust bag, clean air is discharged to the outlet through filter bags, dust attached to the surface of the filter bag grows thicker as time goes by.
According to the setting of injection procedure, pulse injection valve receives the order issued by the controller, trigger to open in order, the compressed air in the gas bag spray out from each hole of injection tube and jet into each corresponding filter bag via venturi, the dust attached to the surface of filter bags fall off into the ash hopper and expel from ash valve.
Applicable of dust collector:
It is widely applicable to cement, electronics, chemicals, food processing, metallurgy, casting, carbon materials, machining, Timber and building materials etc. industries.

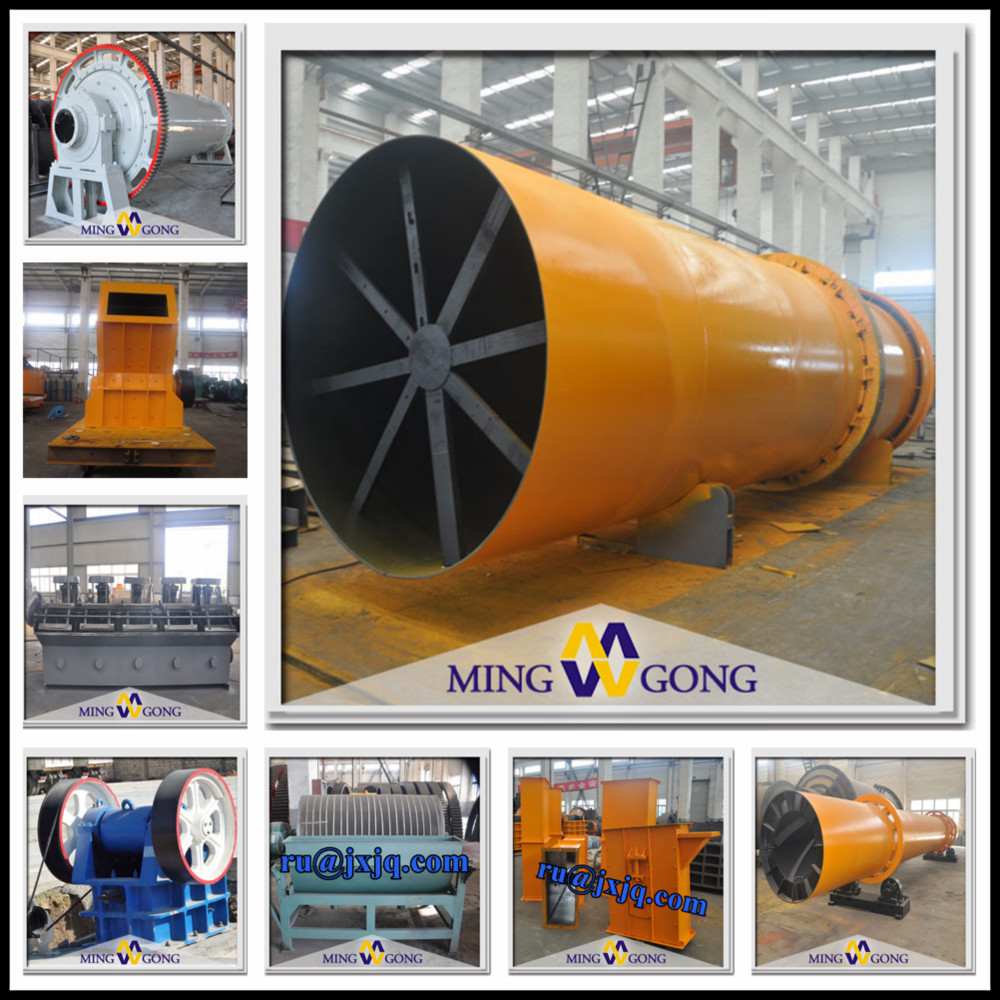

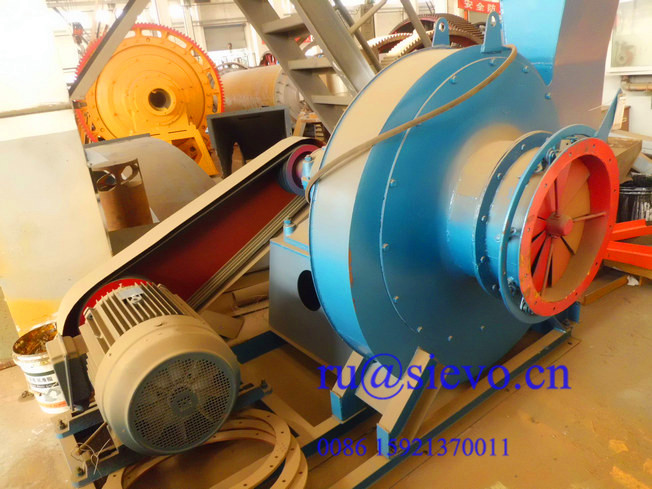

Other Products of our company
Our exhibition /trade show

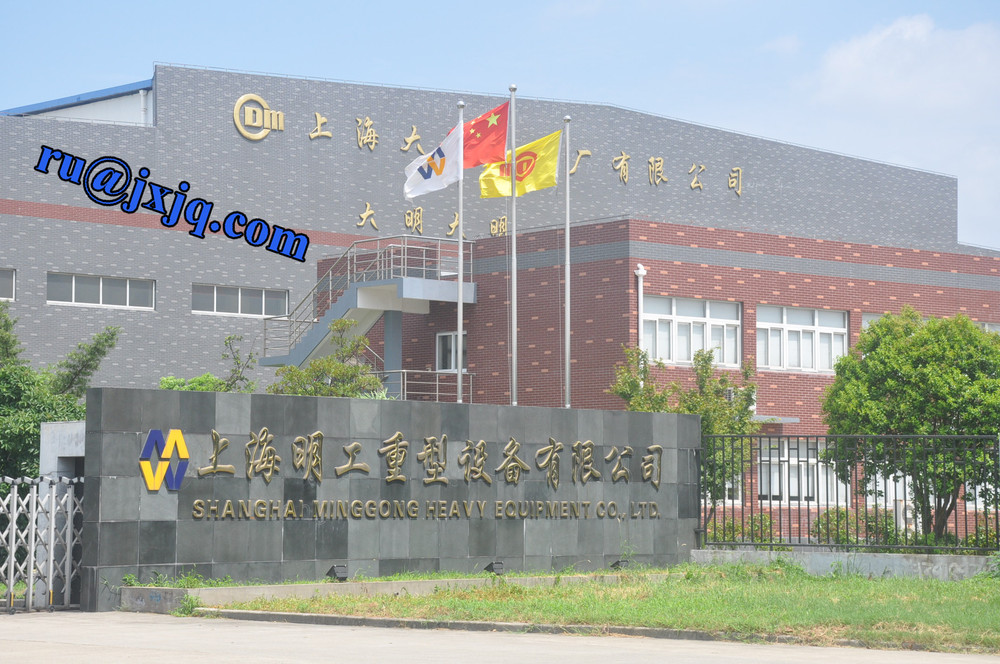

About our company Shanghai Minggong Heavy Equipment co.ltd is founded in 1956 (formerly the shanghai daming iron Works),
