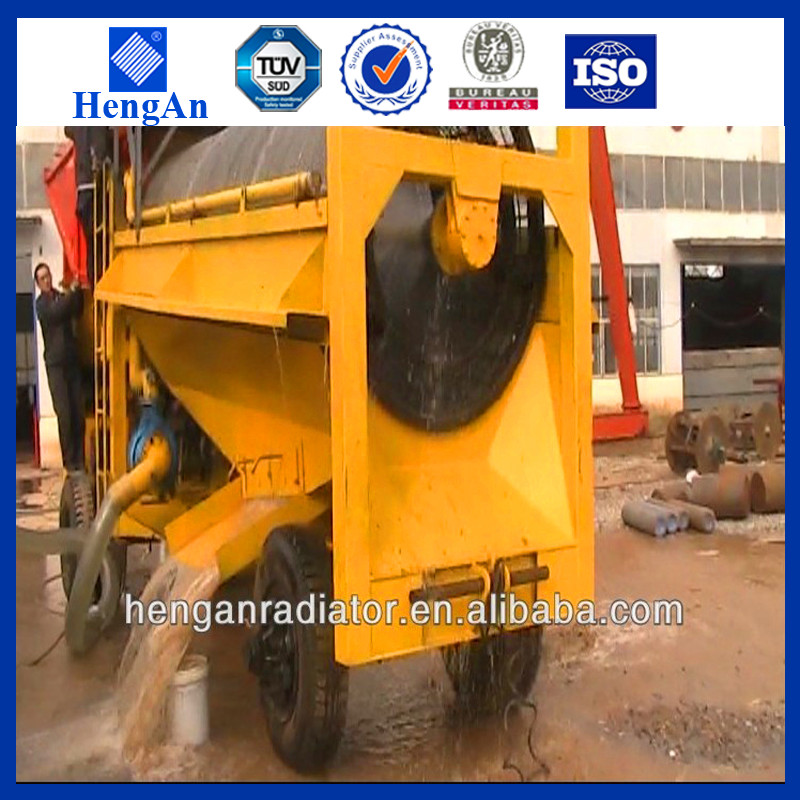

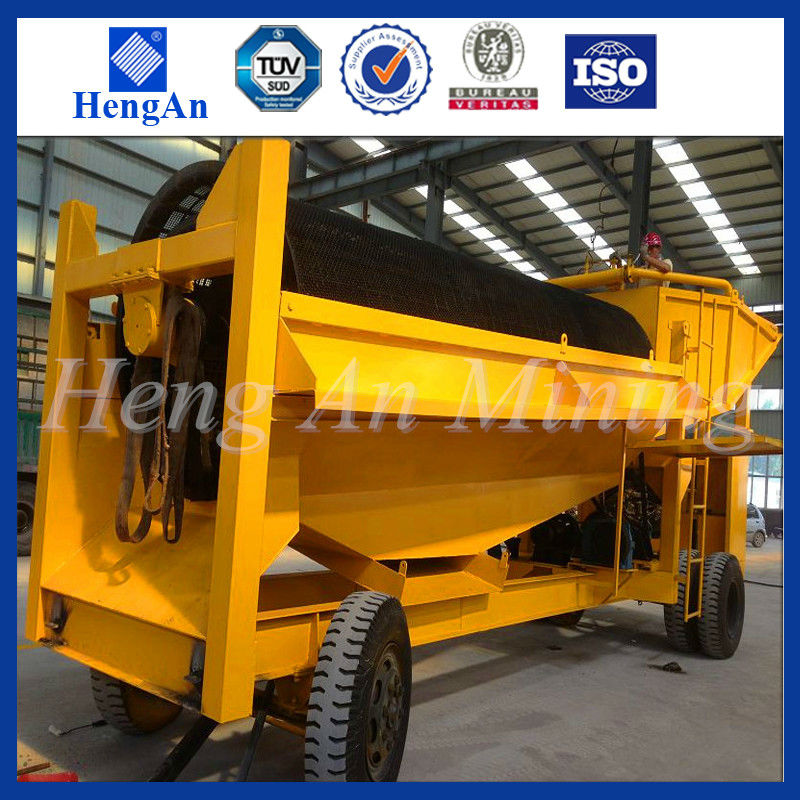

1.Introduction of Gold Mining Machine
Heng An Mobile Gold Mining Equipment is a land removable gold mining equipment. It’s high
integrated, unitary, easy control, big capacity, stable working, easy maintain, and easy moving.Our
engineer can go oversea to install our plant.

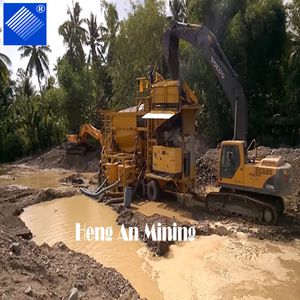

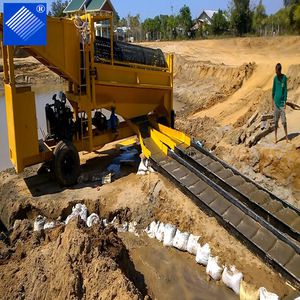

2.Work principle and process of Gold Mining Machine
1. This machine can be moved and disassembled. After installation in the mine area, using excavator to feed the raw
ore materials in the hopper.
2 .The raw ore materials flow into the trammel to be separated by the water impulsive force
3.The separated small stones will be kicked out and the rest sand and gold mixture will flow into the sluicebox to be extracted.
4.The gold will be left on the gold blanket and sand will be flow out .
3.Advantages of Gold Mining Machine
1.Patent design and professional design,good quality material
2.Strict testing before shipment
4. Technical parameter of Gold Mining Machine
Main Parameter | ||
Model | HATJ-100 | HATJ-200 |
Performance | ||
| ||
Dimension (L*W*H) (mm) | 8300*2400*4200 | 9800*3000*5175 |
Processing Capacity (t/h) | 100-300 | 300-500 |
Main Power | ||
| ||
Diesel engine | Weichai | Weichai |
Power | 50kw | 75kw |

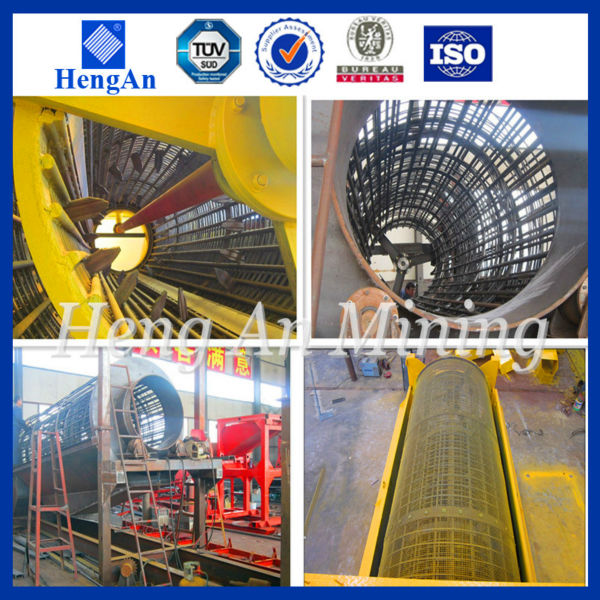

Trommel Screen | ||
| ||
Size (dia*length) | 1500x4500mm | 2000x5000mm |
Power | 15kw | 30kw |
Screen material | 20CrMo | 20CrMo |
Feeder hopper | ||
| ||
Size (L*W*H) | 3000*2200*1800mm | 3800*3000mm |
Water system | ||
| ||
Pump Power | 22kw | 30kw |
Water flow | 224m3/h | 240m3/h |
Head | 27.8m | 32m |
Optional equipment | ||
| ||
Grizzly, Conveyor, Sluice, Concentrator etc.
|

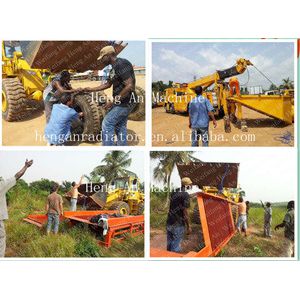

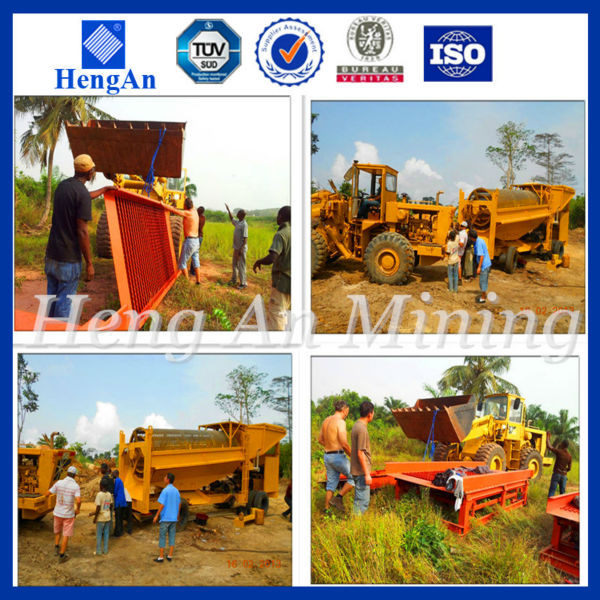

5.Engineer go aborad to install Gold Mining Machine
.
6. Other Implements Of Gold Mining Machine

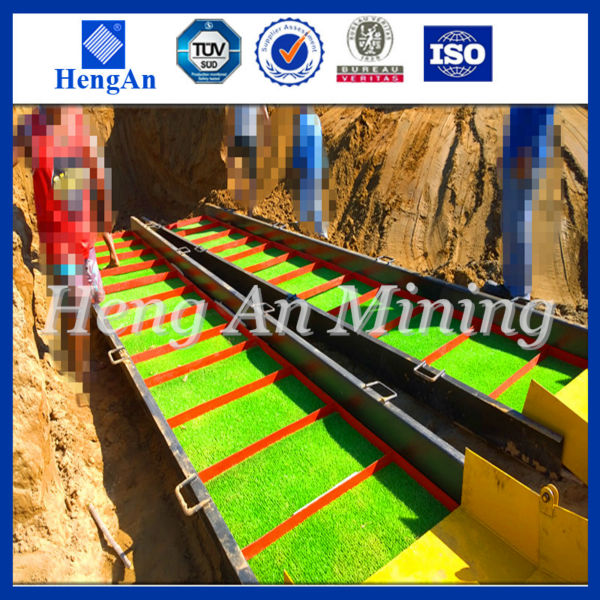

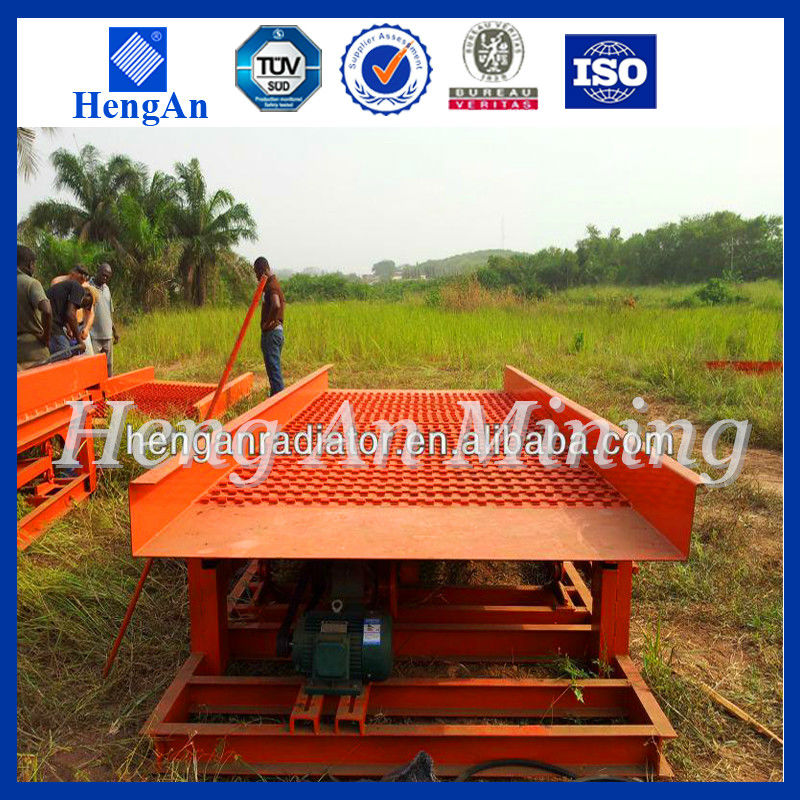

(1) Sluice box
(2)Gold Concentrator

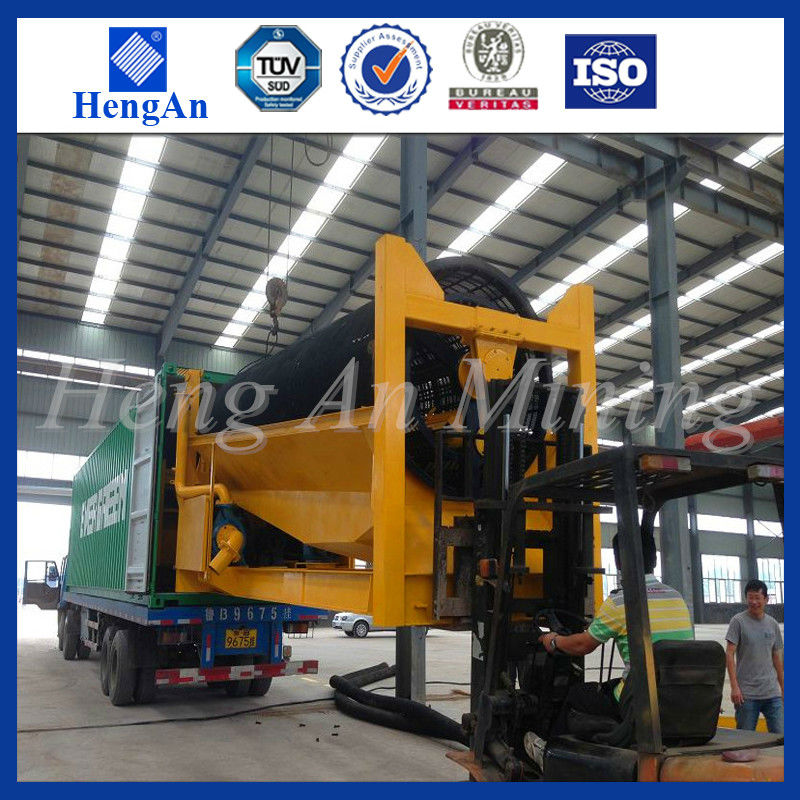

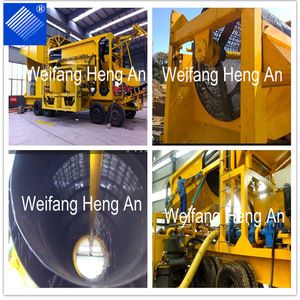

7.Professional loding of Gold Mining Machine
8.Please Feel Free To Contact Us About Gold Mining Machine
