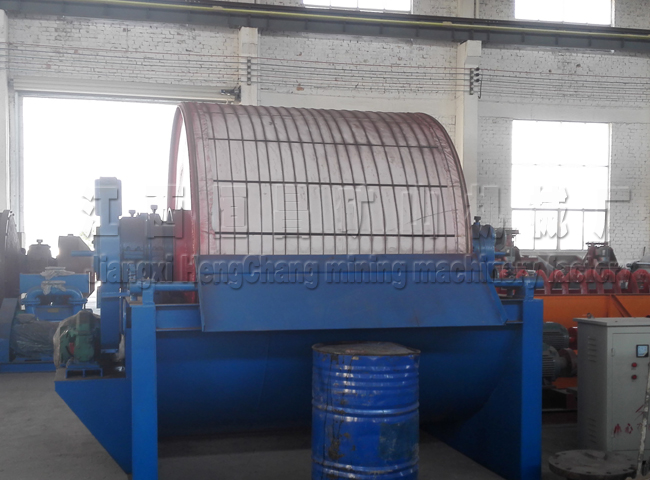

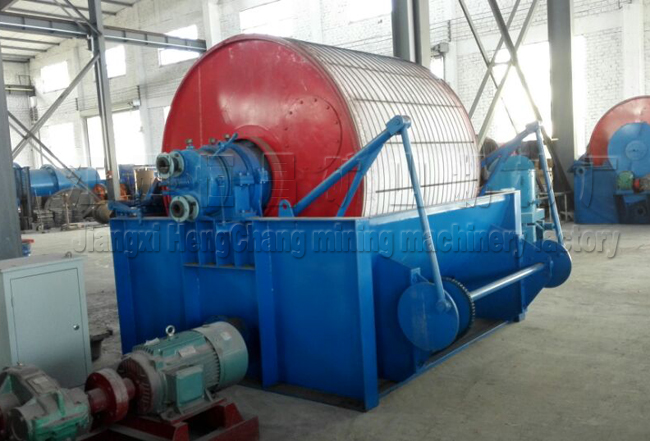

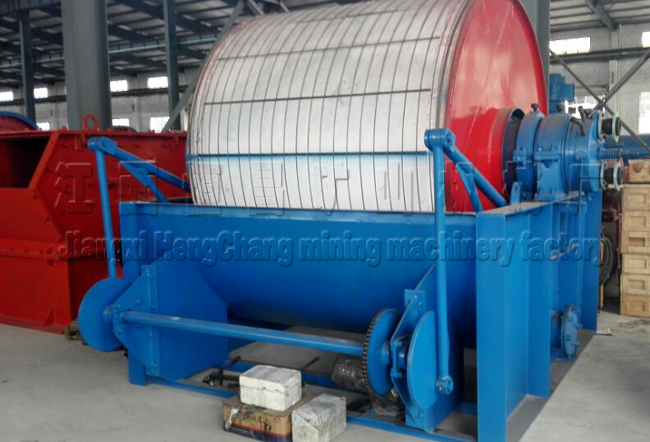

China Gold Mining Dewatering Machine Rotary Drum Filter From Jiangxi Hengchang

 Mining dewatering machine of Advantages:

Cylindrical external filtration type filter is normal filter realizing stepless speed change by adjusting the motor revolution.It has the advantages of simple structure, low price, convenient operation, little wearing parts etc..

  Mining dewatering machine of working principle

The cylinder is main part of filter. The large size cylinder is made of welded steel plate, the small size made of cast cylinder, and some old-fashioned filter cylinder made of thick wood. The filter cylinder is divided to some filtering chambers by strip along the circumferential direction. These chambers are strictly sealed without ventilation between each other. Filter plate is laid on filter chamber forming a channel for filtrate and supporting filter cloth.

The cylinder is wrapped in filter cloth in order to ensure the sealing between each chamber.

There is a pipe at one end of the cylinder body which has the same number of channels with chambers.Each channel connects with corresponding filter chamber. The transmission mechanism drives the cylinder, and could transform several speeds.

 Mining dewatring  machine of features:

GW cylinder external filter is a kind of common fiter,mainly used for filtering the ore pulp with fine grain size and requiring low water content.

through adjusting the motor,variable speed control can be achieved.

it has the advantages like simple structure, convenient operation, low price, less maintenance required and less wearing parts.

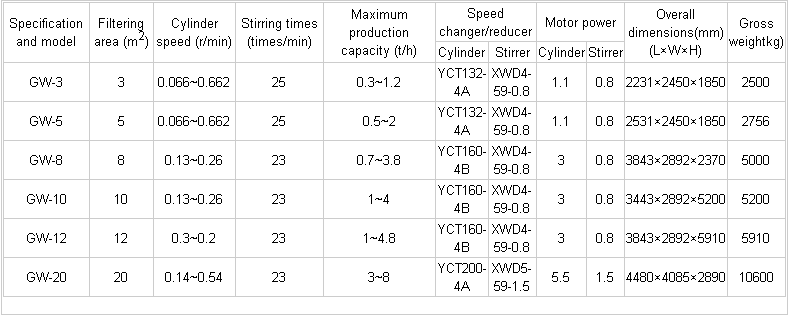

Technical parameters of GW mining dewater machine  :

Customers Notes for selection:

it should be matched with air-extraction system and air-water separation system (automatic water discharging filtrate cylinder).

the matching products should be ordered separately(vacuum pump,pressure water tank system of air extractor)

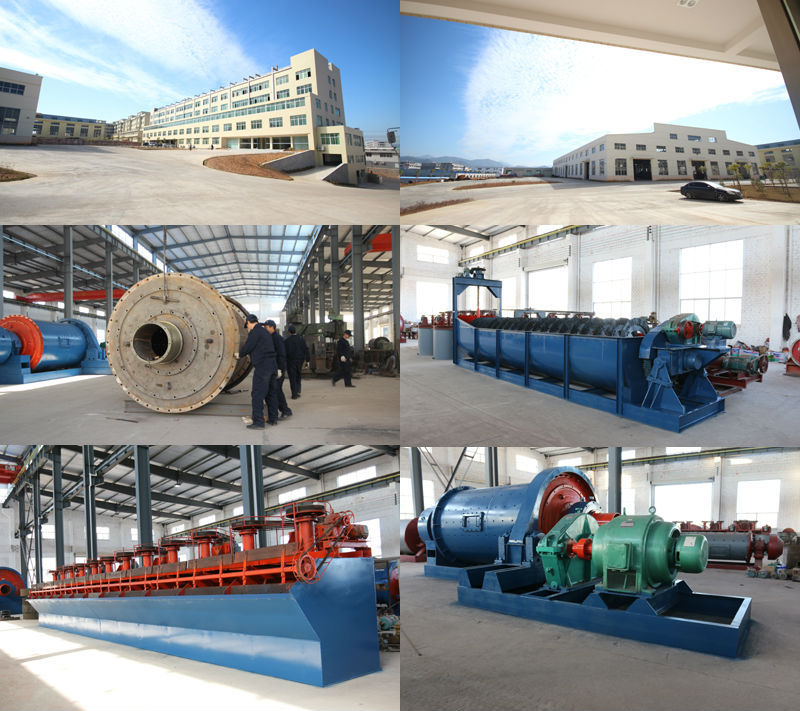

Welcome to visit our factory in your free time :

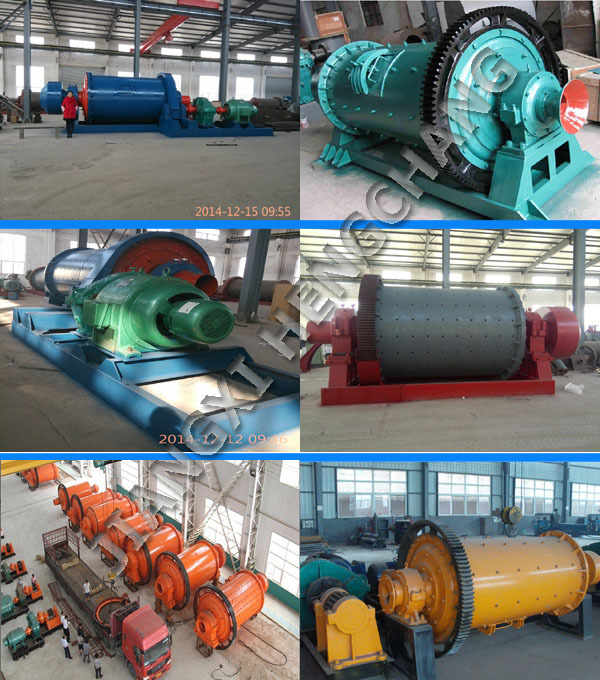

We aslo have many kind of grinding mill and gravity machine:
