Save labor gluten washer with high efficiency

At the wheat starch production line, dough mixing, gluten separating and removing is the first important procedure, the Automatic wheat gluten washing machine made by Henan Doing Machinery is based on various equipment at home and aboard, designed indepen

Technical Feature

  • Henan, China (Mainland)
  • DOING
  • DY043
  • Grain Processing Equipment
  • Engineers available to service machinery overseas
  • gluten washer
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$12~16

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
DOING
Model Number
DY043
Type
Grain Processing Equipment
After-sales Service Provided
Engineers available to service machinery overseas
Name
gluten washer
Color
Silver
Capacity
As your requests
Material
Full stainless steel
Function
gluten making
Application
gluten processing
Raw material
wheat
Power
1.1kw
Voltage
380v/50hz
Feature
High Efficiency

DETAIL DESCRIPTION

Save labor wheat gluten washer introduction:

At the wheat starch production line, dough mixing, gluten separating and removing is the first important procedure, the Automatic wheat gluten washing machine made by Henan Doing Machinery is based on various equipment at home and aboard, designed independently, and applied for a national patent. Now it is widely used in the wheat starch factory.



Save labor wheat gluten washing machine working principle::

Drive the screw propeller in the direction of rotation, make the dough to stir in many directions, mix well with water, then squeeze and rub the dough.

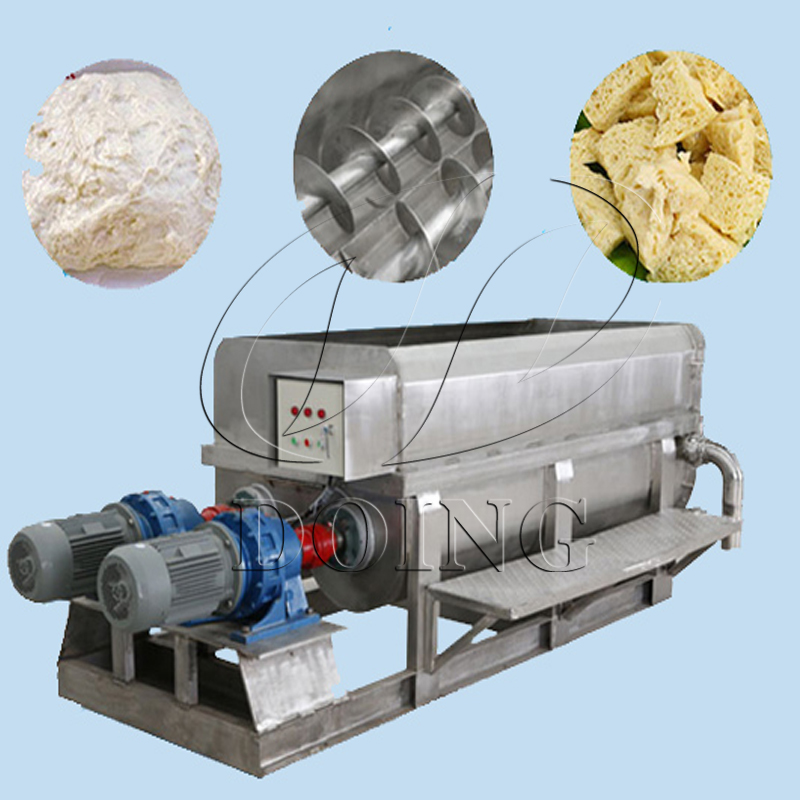

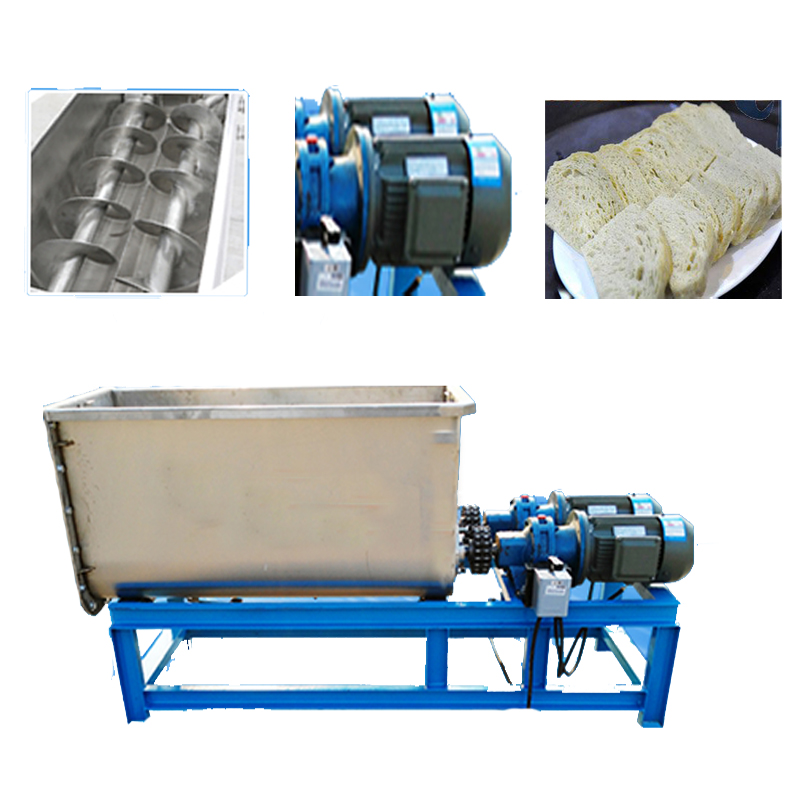

Automatic wheat gluten washing machine structures:
This Automatic wheat gluten washing machine is composed of machine body, double helix axis and driven system. The stock outlet adopted valve disc, can reduce the amount of broken gluten exhaust, another outlet is in the middle and lower part, can be discharge automatically after opening the door, saving manpower.

Automatic wheat gluten washing machine working process:
(1) Before start, add the water, then put the flour at one time.(the ratio of water to flour is two to one) water temperature about 20 degree.
(2) Knead dough: need 12 minutes, veering 5-6 minutes, inversion 5-6 minutes, then stop to let the dough not less than 12 minutes.
(3) Wash dough: After (2) steps, add the water about 15kg to hopper, start washing dough, 3 minutes later, stop the machine to discharge the batter.
(4) The second washing time not exceed 5 minutes, and following 2 times could be longer. Above all, wash, discharge, filter, four times, then the gluten will be finished.
(5) Effect: make 25kg flour, need about 45minutes.(not include the stop time) Every 1kg flour can make 0.45kg gluten.

Packaging & Shipping

FAQ

1. Q: Are you a trading company or a manufacturer ?
   A: We are a manufacturer, which has long experience in this industry.

2. Q: How can I get to your company ?
   A: You can get a flight to Xinzheng Airport. We are just about 40- 50mins away from Xinzheng Airport.

3. Q: How long is your guarantee ?
   A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.

4. Q: Will you send engineers to install the plant?
   A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.

5. Q: Do you have some foreign customers using your equipment?
   A: yes, we have our company has established business relationships with customers in Nigeria,Ghana , South Africa, Ukraine, Vietnam, Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,,Jordan,Syria, Libya etc.
