Hot selling types of stainless steel high shear emulsifying mixer homogenizer for cosmetic, chemical, food
2- The overhead stirrer consists of the high-speed motor, the working head of homogeneous dispersion, speed controller and other components.
3- The host is made of high quality engineering plastic and die-cast aluminum to ensure steady operation.
4- The working head is made of stainless steel for wide experimental application.
5- The Operating Speed is controlled by a microprocessor to compensate for any sudden rotating speed change caused by overload changes or voltage fluctuations.
6- The constant rate and built-in soft-startup can ensure the operating safety.
7- Stepless regulation of the speed can make sure you can modify the speed accordingly.
8- the digital speed display on the H-type can be of great help for you to collect experimental data; and the timer function can ensure the control of the operating time in experiment.

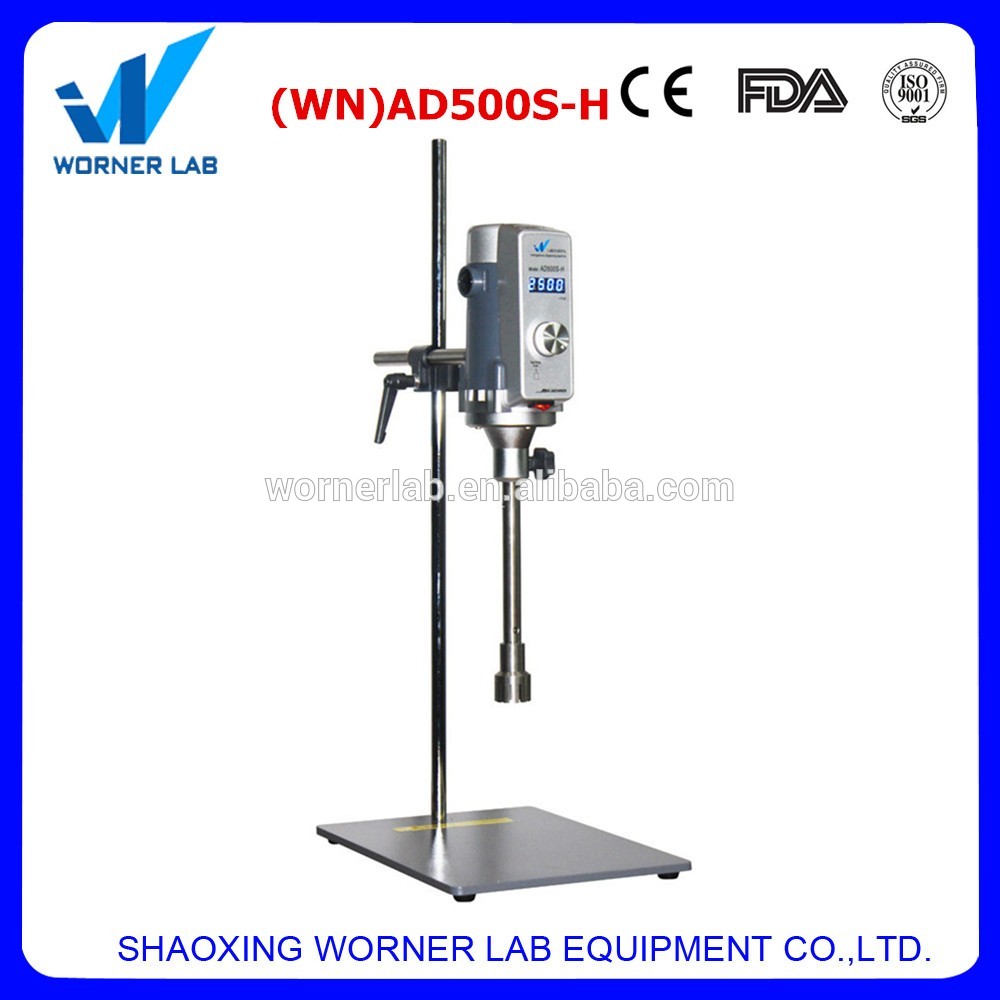

| Model | (WN)AD500S-P | (WN)AD500S-H | |||
| Rated voltage | AC220V | ||||
| Rated frequency | 50/60Hz | ||||
| Motor rating input | 850W | ||||
| Motor rating output | 500W | ||||
| Nominal torque | 17.1N.cm | ||||
| Speed range(rpm) | 2000~28000 | ||||
| Speed display | NO | Digital speed display | |||
Permissible ambient temperature | ≤40°C | ||||
Permissible relative humidity | ≤90% | ||||
| Dimensions(mm) | 600x310x160 | ||||
| Weight | 12kg | ||||

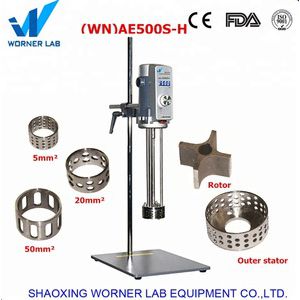

| Working Head | 12G | 18G | 24G | 30G | 36G |
| Bearing material | PTFE | ||||
| Throughput(H2O) | 30~800ml | 50~1500ml | 80~5000ml | 100~8000ml | 150~13000ml |
| Maximum viscosity | 1000mPa.s | 2000mPa.s | 5000mPa.s | 6000mPa.s | 7000mPa.s |
| oal(mm) | 215 | 222 | 225 | 235 | 238 |
| Stator dia(mm) | 12 | 18 | 24 | 30 | 36 |
Minimum immersion liquid height(mm) | 35 | 45 | 50 | 60 | 65 |
Maximum immersion liquid height(mm) | 150 | 160 | 165 | 170 | 175 |
Advantages
1.Our sales man will be most delighted to answer all your inquiries
2. We can print your logo if you need.
3. We can customised your plug and power as your need.
4. We will check the quality before packing.
5.If you sale the homogenizer in your country well , we also are glad to set up distributer in your country .
6 All homogenizer
are supplied with a warranty of 12 Months from the date of shipment.
