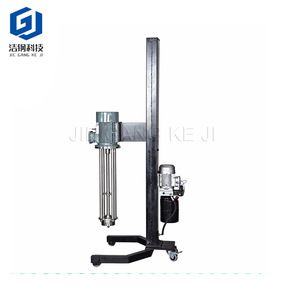

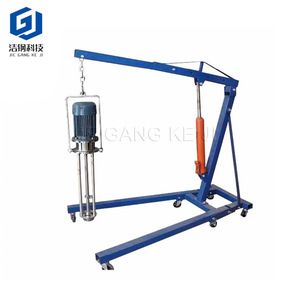

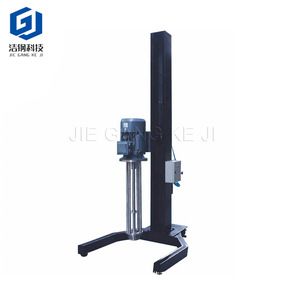

BRL high shear dispersing emulsifier mixer
JIegang high shear dispersing emulsifier effectively, quickly and evenly disperse a phase or usually, there phases are dissolvable to each other. The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect ,therefore ,the material in the narrow slotamong stator and rotor receives strong forces from mechanical and liquid shearing ,centrifugal force, pressing ,liquid fraction, clashing ,tearing and rush water .The dissolvable solid ,liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictives and finally products with stable high quality are made.
Mix:syrup,shampoo,clean solution,juice concentrate,yogurt,desserts,mix milk products,printing ink.
Emulsion:medicine lotion,ointment,face mask,emulsion flavor,oil-water emulsion,emulsion asphalt,resin emulsion,wax emulsion and pesticide.
Homogeneous:medicine lotion,ointment,face mask,tissue homogenate,dairy products homogeneous,fruit juice,printing ink and jam.
| Name | High shear mixer |
| Function | Mix,emulsify,homogenize |
| Max | Handling capacity: 10T |
| Type | Fixed and movable |
| Power | 1.1KW-75KW |
| Manufacturer | 20 years specialized manufactuer |
| Main Parameters | ||||
| Model | Power | Speed | Length | Handing Capacity |
| BRH-80 | 1.1 | 2800 | 350 | 10-40 |
| BRH-90 | 1.5 | 2800 | 350 | 10-50 |
| BRH-100 | 2.2 | 2800 | 650 | 50-100 |
| BRH-120 | 3 | 2800 | 750 | 100-200 |
| BRH-120A | 4 | 2800 | 750 | 100-300 |
| BRH-140 | 5.5 | 2800 | 900 | 200-600 |
| BRH-140A | 7.5 | 2800 | 900 | 200-800 |
| BRH-160 | 11 | 2800 | 1050 | 500-1500 |
| BRH-180 | 18.5 | 2800 | 1200 | 600-2000 |
| BRH-200 | 22 | 1400 | 1200 | 800-2500 |
| BRH-220 | 30 | 1400 | 1355 | 1000-3500 |
| BRH-240 | 45 | 1400 | 1395 | 1500-5000 |
| BRH-270 | 55 | 1400 | 1600 | 2000-8000 |
| BRH-290 | 75 | 1400 | 1650 | 3000-10000 |
hear homogenize
Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
Daliy Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpoaste, Shampoo, Shoe Polish, Cosmestics etc.
Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, BIological Products etc.
