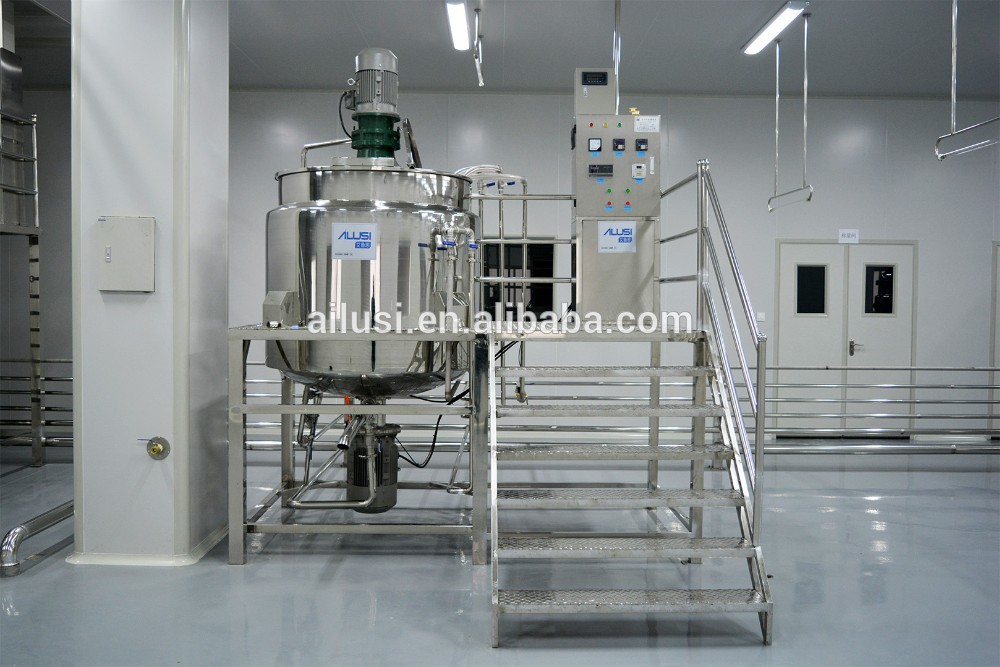

liquid detergent production line blending tank industrial homogenizer has high speed disperser, mixing and disperse viscously, solid and liquid etc. various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period
Main adopts stepless timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed
To produce liquid washing products, like shampoo, liquid soap, bath shower, dish washing, hand washing, lubricating oil, etc.
Finished products can be discharged by valve or match a screw pump.
| Item | Heater(KW) | Mixer(KW) | Mixer Speed(RPM) | Homogenizer(KW) | Homogenizer Speed(RPM) |
| 200L | 6KW | 1.5KW | 0-75 | 4KW | 0-3600 |
| 300L | 9KW | 2.2KW | 0-75 | 4KW | 0-3600 |
| 500L | 18KW | 3-4KW | 0-75 | 5.5KW | 0-3600 |
| 1000L | 27KW/steam | 4-5.5KW | 0-75 | 7.5KW | 0-3600 |
| 2000L | 27KW/steam | 5.5KW | 0-75 | 11KW | 0-3600 |
| 3000L | 36KW/steam | 7.5KW | 0-75 | 15KW | 0-3600 |
| 5000L | 48KW/steam | 11KW | 0-75 | 22KW | 0-3600 |
Main Features
1) Full of SUS304, contact materials parts SUS316L, GMP standard..
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Double jackets and insulation provide electric heating or steam heating..
4) High effection mixer and homogenizer emulsion products 2um.
5) Apply to cosmetics, shampoo, liquid soap, detergent, dish washing etc products.

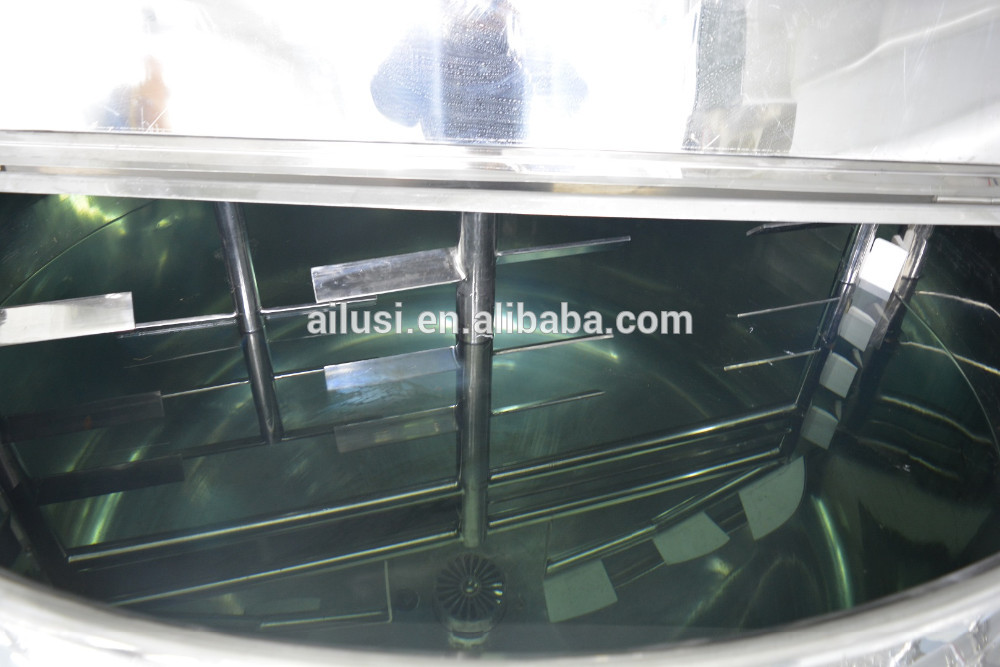

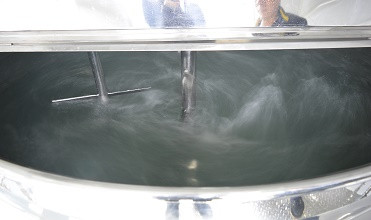

Mixing part
Name: Frame oar scraping blender with 1 fixed oar
Material: SUS316L
Speed: 0-75rpm, frequency inverter
Siemens motor + reducer provide strong and stable power for mixer, Panasonic brand frequency inverter, PTFE material scrape blade, Flange shaft coupling.

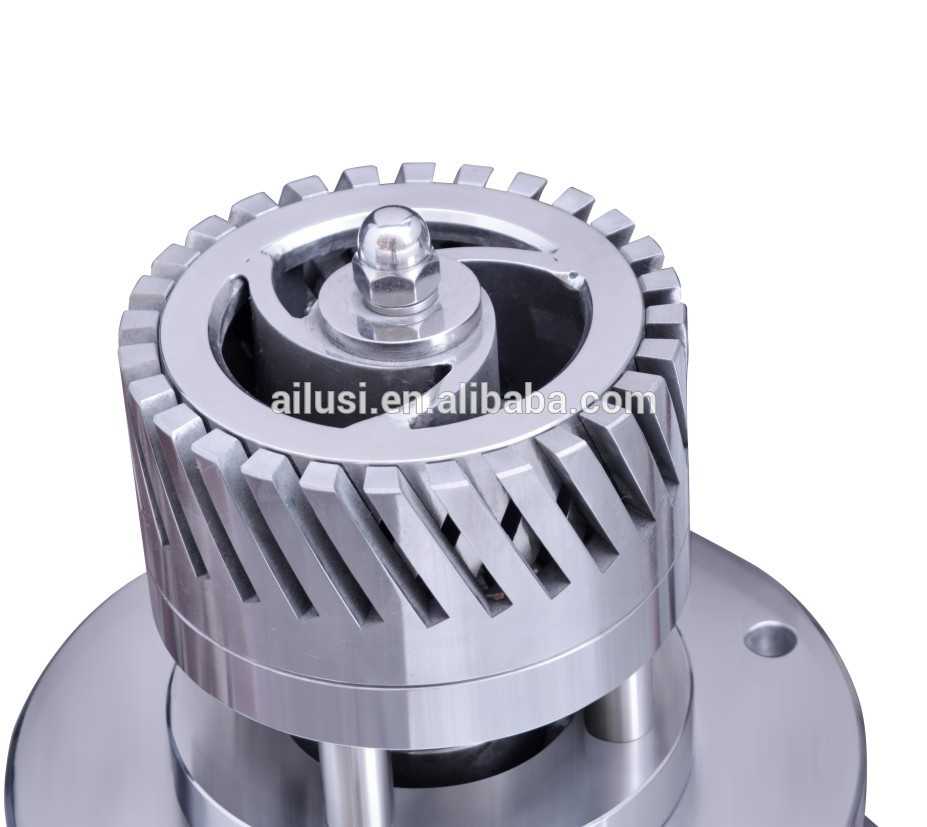

Homogenizer part
Name: High shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm, frequency inverter
Rotor and stator high shearing homogenizer, soomth emulsion to 2μm, equipped Burgmann seal two sides tungsten seal. NSK bearing. water circulation cooling homogenizer.

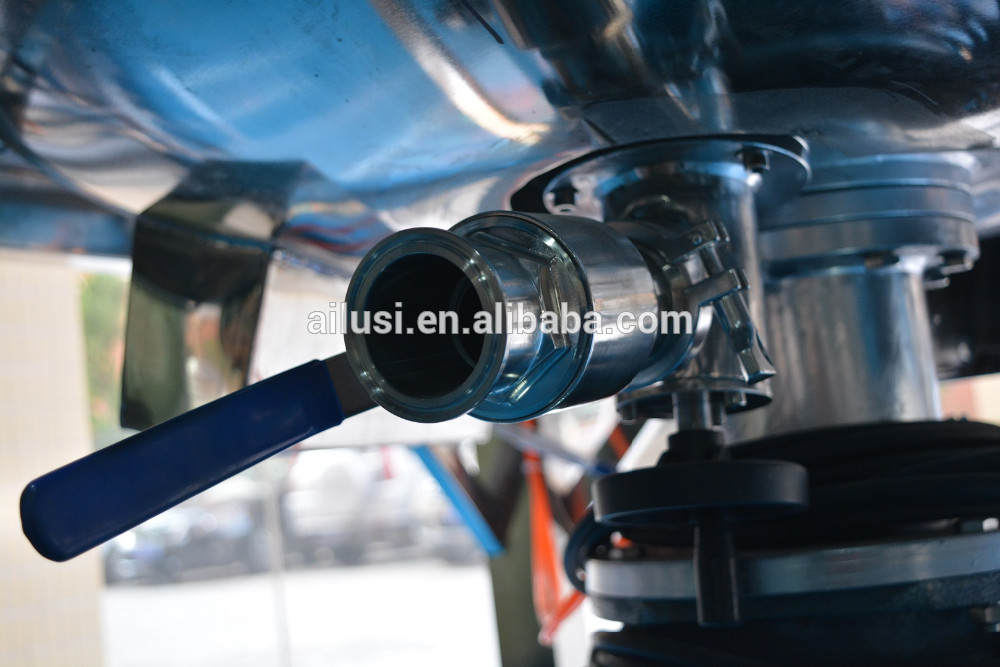

Discharge part
Name: Flat valve outlet
Size: DN50/63
Material: SUS316L
New designed flat valve for bottom discharge. Non residual, Angle of ourlet suitable for products dischage easily. fast connection with pipes and pumps.

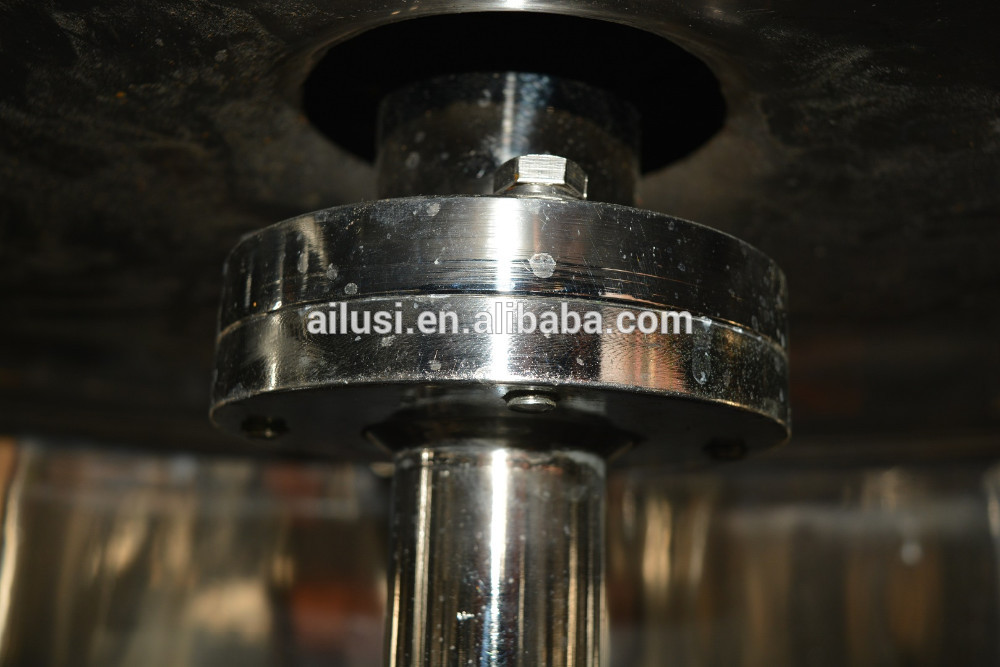

Flange part
Name: Flange
Material: SUS316L
Easy installtion, stable quality.
ALW-1000L liquid washing mixer
91.8% Response Rate
ALW-5000L liquid washing mixer
91.8% Response Rate
ALW- Multi-funcion liquid washing mixer (Combined tank)
91.8% Response Rate
| Packaging | |
| Size | 2230(L) * 850 (W) *2400 (D) |
| Weight | 800KG |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Pre-Sales Service
* Inquiry and consulting support.
* Turn key service from start to the end.
* View our Factory.
After-Sales Service

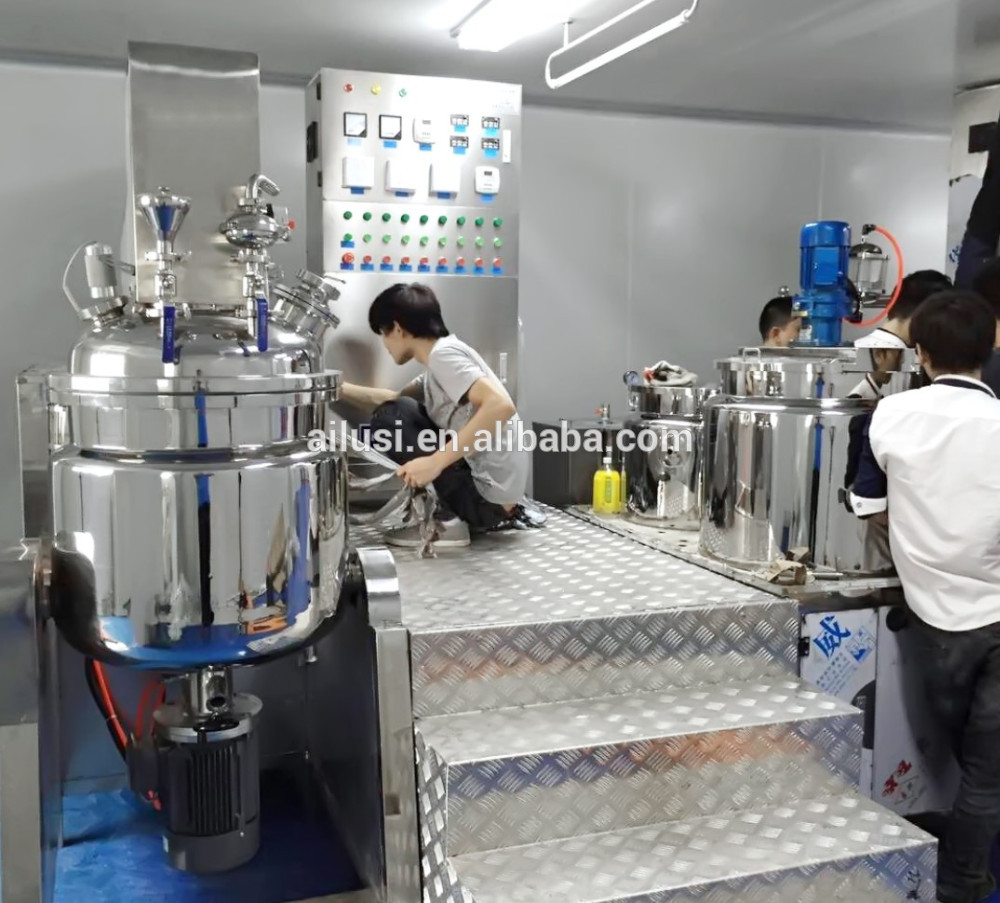

* Training how to instal the machine, training how to use the machine.
