Mini Industrial Powder Homogenizer, Laboratory Ultrasonic Extraction, Ultrasonic Homogenzier
1. Typical application include cell disruption & disintegration, extraction, degassing as well as sonochemical process.
2. A great ecchancement from the operational view is the colored screen allows easy setting the amplitude/power and display the working frequence.
3. The intelligent automatic frequence tuning will drive the device at the optimal operational frequence to imporves the overall energy efficiency and reliability.
ultrasonic homogenizer, ultrasonic extraction homogenizer
| Model | YPS17B-HB | YPS15B-HB | YPS11B-HB |
| Power | 1000W | 500W | 500W |
| Frequency | 20Khz | 28Khz | 40Khz |
| Amplitude | 50-100% | 50-100% | |
| Handling Capacity | 0.5-5L | 0.5-2L | |
| Effective Depth of Horn | 80 mm | 150mm | 80mm |
| Diameter of Horn | 16 mm | 14 mm | 8 mm |
| Standard Features | ultrasonic probe, ultrasonic homogenizer sonicator | ||

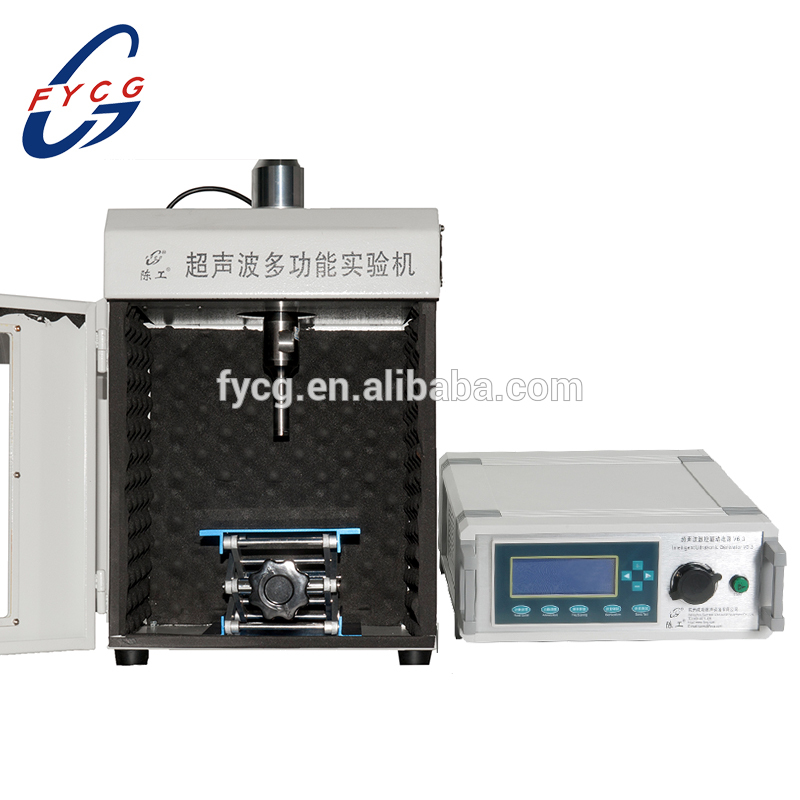

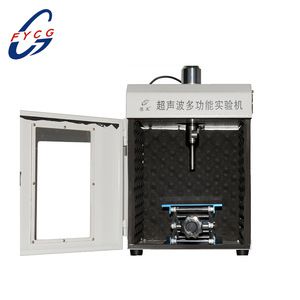

| Optional | soundproof box, alarm output, remote control |

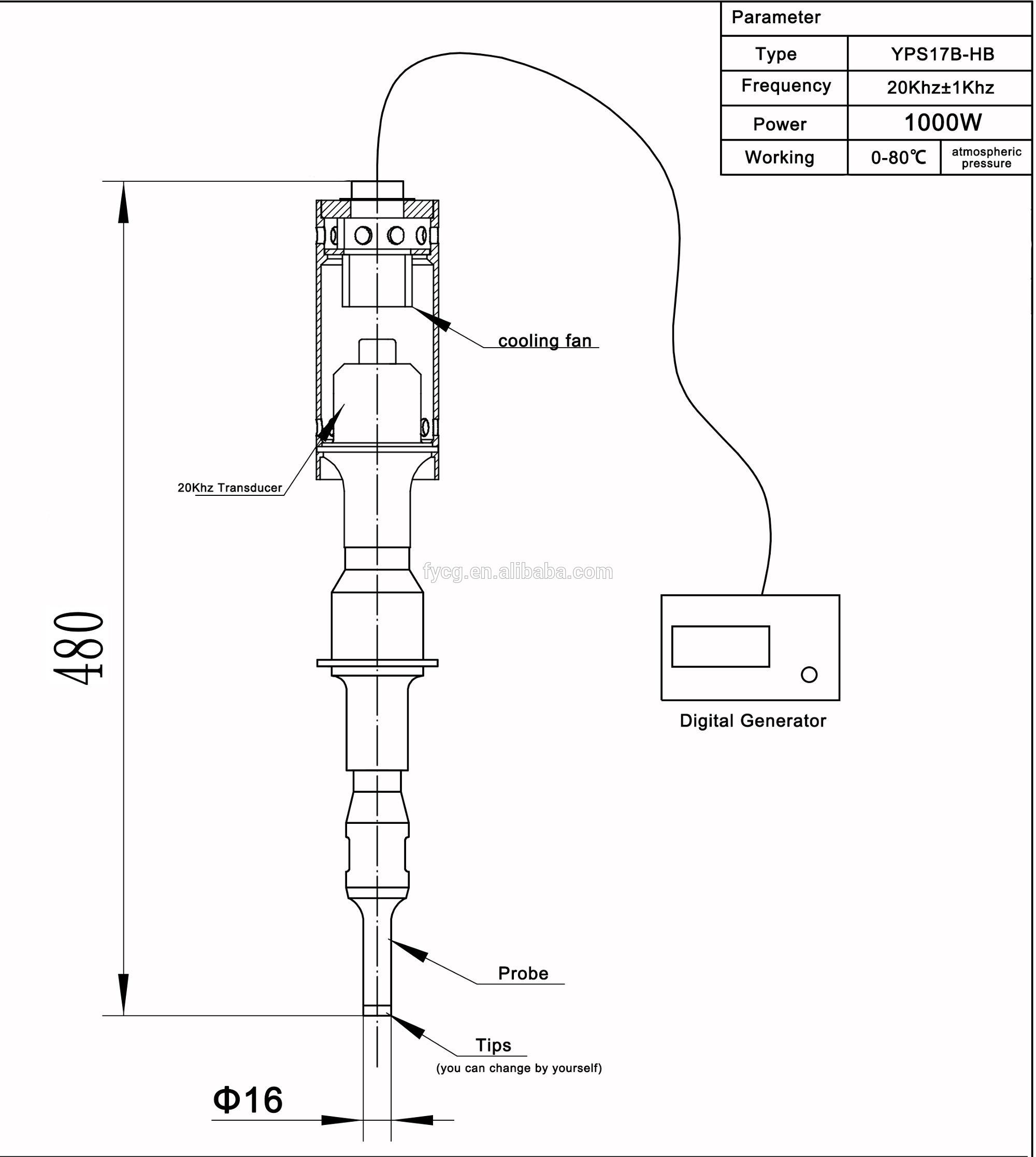

Technical Drawing of ultrasonic homogenizer:
ultrasonic homogenizer, ultrasonic extraction homogenizer

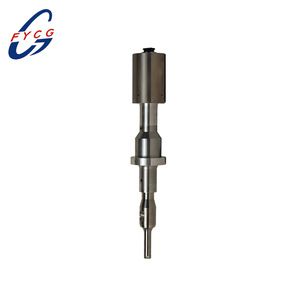

1. The Horn is made by Titanium alloy

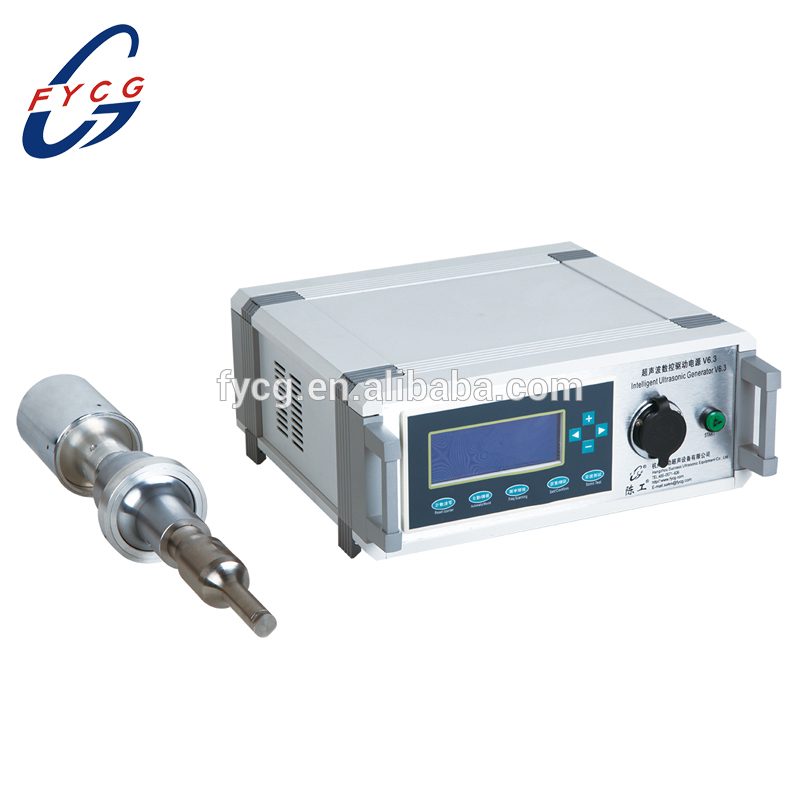

2. Equipped with Digital Generator, LCD display, and the operator can adjust the amplitude between 20-100%

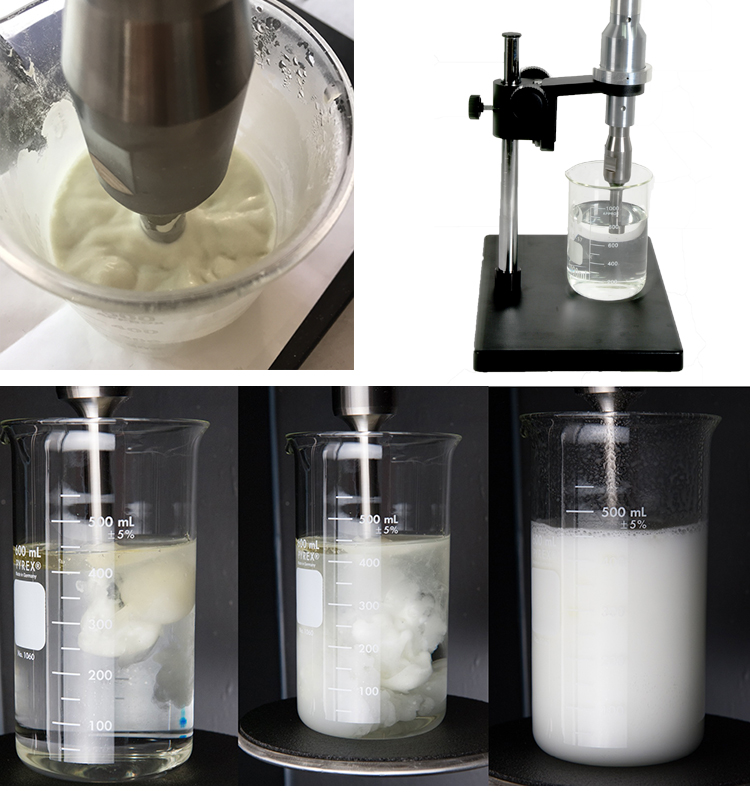

Application:
ultrasonic homogenizer, ultrasonic extraction homogenizer
ultrasonic homogenizer, ultrasonic extraction homogenizer
Typical application include cell disruption & disintegration, extraction, degassing as well as sonochemical process.
Our Company:

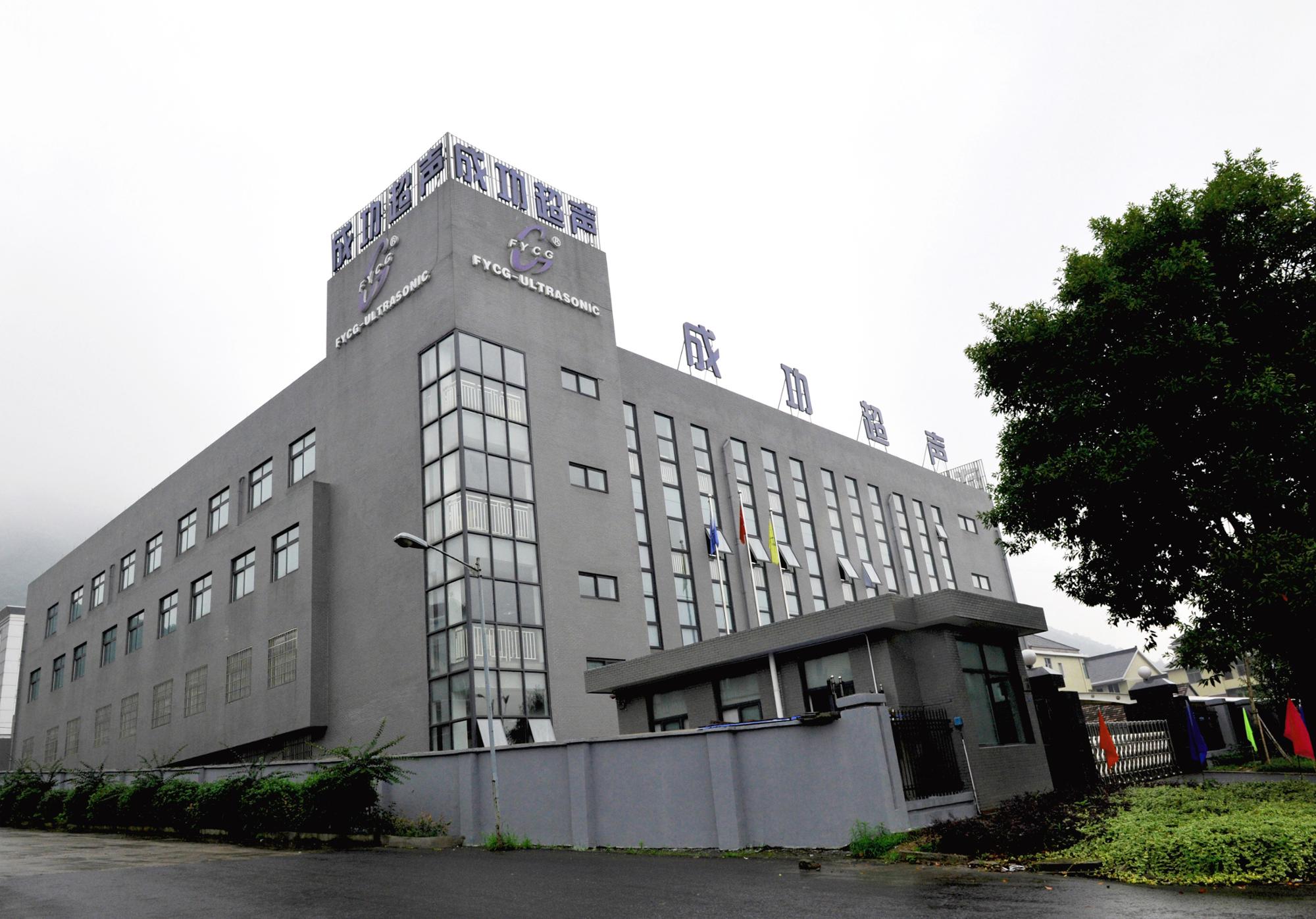

Hangzhou Success Ultrasonic Equipment Co.,Ltd
Founded in 1995, with about 20 Years Experiences, from a small Transuder manufacture develop into a professional ultrasonic equipment manufacturer. we fousced on Design and Development of High Power Ultrasonic Products, FYCG supply ultrasonic core parts and technical support for ultrasonic complete equipment company, developing new style high-power ultrasonic applications. Our suctomers thoughout research institutions, universities, large and small enterprises. We also has a High-power Opening Ultrasonic Laboratory, has enough strength to provide superior solution.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample and it's not free.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Add: No. 16 South Shangsong Road, Yinhu Street, Fuyang District, Hangzhou City, Zhejiang Province, China(mainland)
Contact: Yang Cui
Any questions or requirement pls feel free to contact us, we will reply you within 24 hours.
