Continuous cell flow ultrasonic Processor homogenizer ,950W, 1200W, 1500W, 1800W, 2000W

PRIMARY PARAMETERS

Condition

New

Mixer Type

Homogenizer

Product Type

Instrument

Application

Liquid with Suspended Solids

Additional Capabilities

Temperature control

Place of Origin

Zhejiang, China (Mainland)

Brand Name

NONE

Model Number

W-II

Max. Loading Capacity

2L to custom-made

Voltage

110-220V

Power(W)

950W, 1200W, 1500W, 1800W, 2000W

Dimension(L*W*H)

600*300*500mm

Certification

ISO9001

Warranty

14 Mongths

After-sales Service Provided

Engineers available to service machinery overseas

Function

Homogenzing

Power

1200W (1600W, 1800W, 2200W Optional)

Horn

15 mm Tip head design

Crushing capacity

2L to custom-made

Power supply

220V/110V 50Hz/60Hz (selectable)

Working Time setting

1-99 minutes or continuous

Ultra-sound mode

Continuous

Injection method

special filtration pump pumping

Working environment

0-30 u2103

With chiller bath

YES

DETAIL DESCRIPTION

Continuous cell flow ultrasonic Processor homogenizer ,

950W, 1200W, 1500W, 1800W, 2000W

Parameters:

Ultrasonic reactor, also known as Continuous Flow Ultrasonic Homogenizer, the complete function.beautiful appearance and reliable performance. Apparatus using a large screen display, the central computer centralized control, ultrasonic gap time is adjustable, power 1-99%. Sample temperature control can be set to show the actual frequency display, frequency automatic tracking, automatic fault alarm, use double cup design and cooling fluid can be used in conjunction with the thermostat bath, the material used cup and horn Live access, loading and unloading easy, capacity-hour, material can be removed as a routine ultrasound cup grinder to use.

Frequency: 20KHz

Power: 1200W (1600W, 1800W, 2200W Optional)
Horn: 15 mm Tip head design
Crushing capacity: 2L to ∞ / h(custom-made)
Power: 220V/110V 50Hz/60Hz (selectable)
Other: switching power supply, power infinitely adjustable, with 50 groups of settings data storage capabilities, Tip head design, the use of cost-affordable.
Note: ultrasonic generator and reactor auxiliary(transducer) 1:1

The main technical parameters:

1. Working Time setting :1-99 minutes or continuous, LCD, regular tasks set

2. Ultra-sound mode: Continuous

3. Injection method: special filtration pump pumping

4. Working environment :0-30 ℃

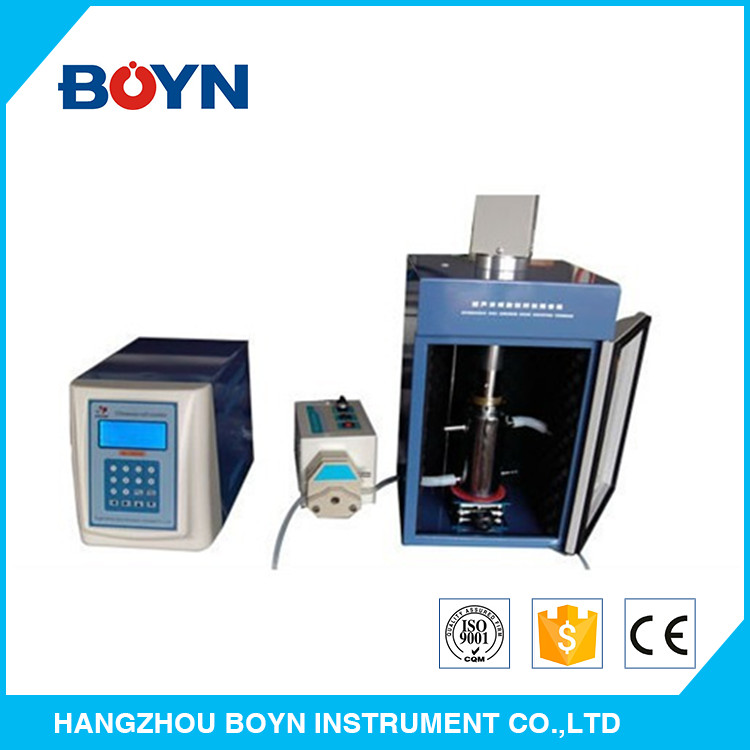

Continuous flow system includes Hei driven pump, and double stainless steel continuous flow cup, configurable chiller.

Continuous flow system allows a single system processing capacity increased to 10L

The following applies to 950W, 1200W, 1500W, 1800W, 2000W ultrasonic homogenizer

Model	Frequency KHZ	power	Optional probe (Φmm)	Crush capacity	Sample temperature monitor
950W-II	20-25	0-950 W	2,3,6,8,10,12,15	0.5ml-10L	yes
1200W-II	19.5-20.5	0-1200 W	6,10,12,15,20,25	50ml-10L	yes
1500W-II	19.5-20.5	0-1500 W	6,10,12,15,20,	50ml-10L	yes
1800W-II	19.5-20.5	0-1800 W	6,10,12,15,20,25,28	50ml-10L	yes
2000W-II	19.5-20.5	0-2000 W	6,10,12,15,20,25,28	50ml-10L	yes

Titanium allpy tips(probe)

Probe size	Frequency	power	Crush capacity
Φ2	1/12″	20-25KHz	min-250W	0.2-5ml
Φ3	1/8″	20-25KHz	min-400W	3-10ml
Φ6	1/4″	20-25KHz	20-600W	10-100ml
Φ10	5/12″	20-25KHz	100-800W	50-300ml
Φ12	1/2″	20-25KHz	200-950W	100-500ml
Φ15	5/8″	20-25KHz 19.5-20.5KHz	300-1000W	100-600ml
Φ20	4/5″	19.5-20.5KHz	400-1200W	100-1000ml
Φ22	5/6″	19.5-20.5KHz	400-1200W	200-1000ml
Φ25	1″	19.5-20.5KHz	800-1800W	500-1200ml
