Features:

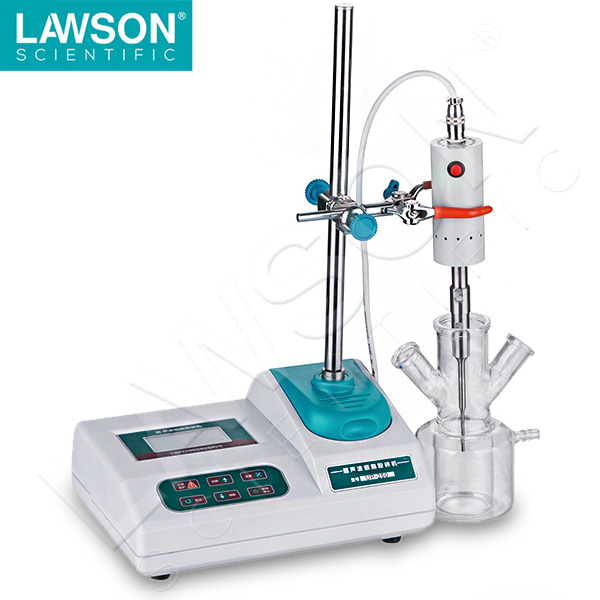

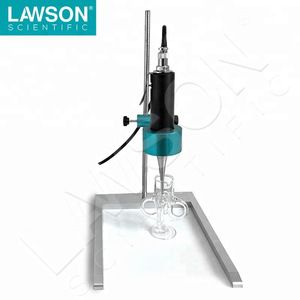

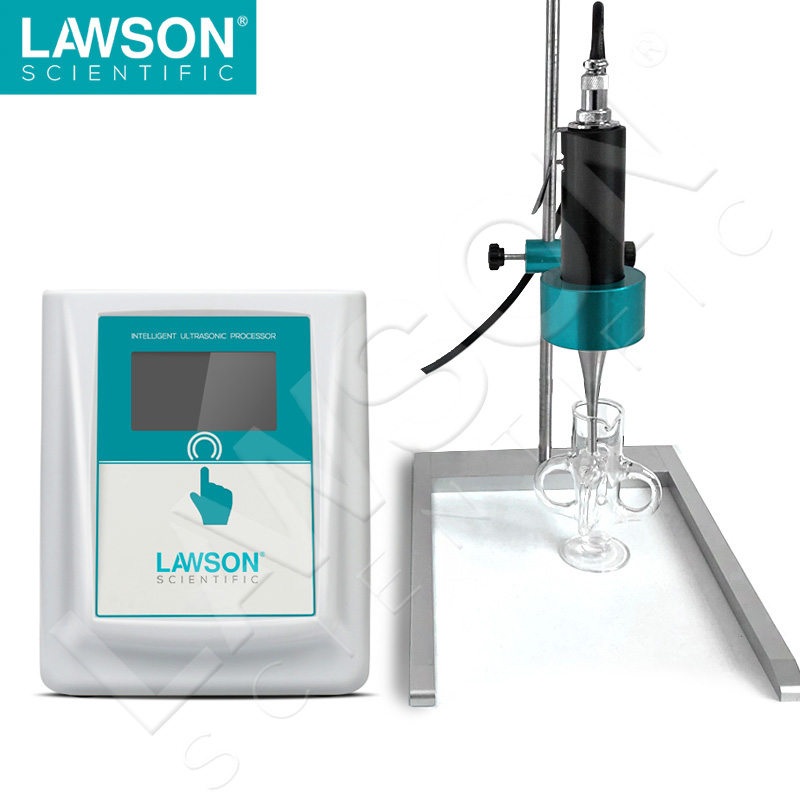

Ultrasonic Sonicator are controlled by microcomputers
The microcomputer regulates the ultrasonic frequency for more reliable operation
The machine will automatically give a warning signal if it malfunctions
Protective container prevents contamination and keeps noise level low during operation
Very wide range for power adjustment: the power level can be set between 1 and 99.9%, giving users control for more sensitive applications

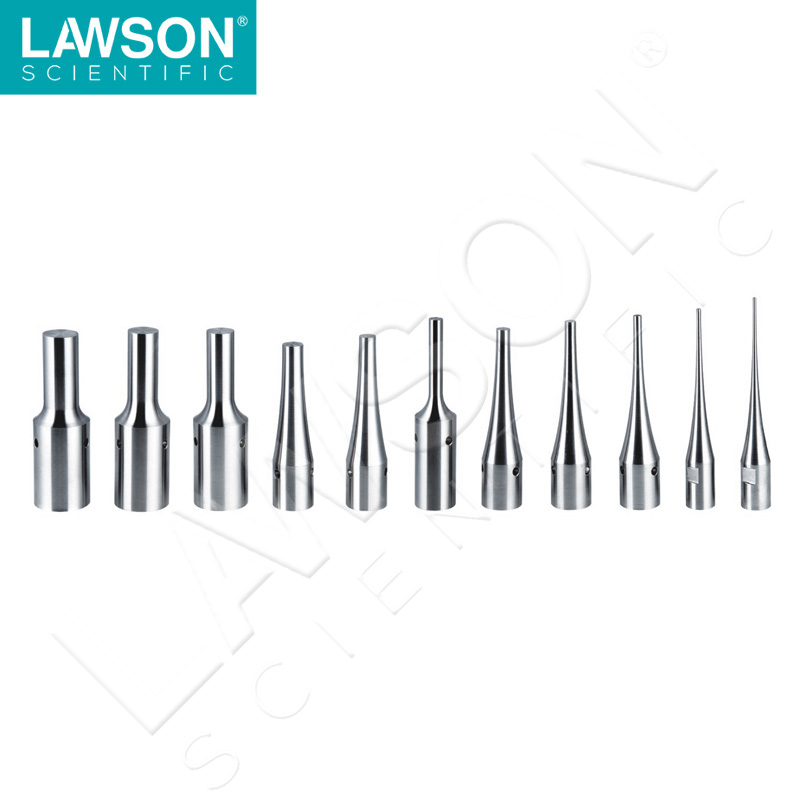

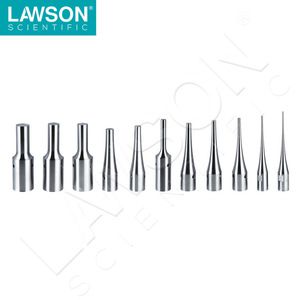

Various sizes of ultrasonic poles can be purchased: very small-diameter probes can concentrate the power in very small volume samples (excellent for cell disruption of very small samples); larger-diameter probes are necessary for larger samples (especially useful for forming homogenous mixtures of larger volumes)
| model(Ultrasonic Sonicator) | UP-250 |
| Frequency (KHz) | 19.5~20.5KHz |
| Power(W) | 400W |
| Stochastic Rangechangeable Pole (ø) | Φ6mm |
| Range-changeable Pole (ø) | Φ2,3,5,8mm |
| Crash Capacity (ML) | 0.5~300 |
| Duty ratio | 1~99% |
| Voltage (V) | 220/110V 50Hz/60Hz |
| Mainframe Weight(kg) | 9.3 |
| Total package weight(kg) | 10.2 |
| supply chassis Size(mm) | 270*200*140 |
| Packing Size(mm) | 320*258*210 |
Models | UP-250 | UP-400 |
Work | Automatic, Manual | Automatic, Manual |
Ultrasonic power(W) | 5-250 | 5-400 |
Operating Frequency(KHz) | 19-25 | 19-25 |
Handling capacity(ml) | 0.5-100 | 0.5-300 |
Ultrasonic time(min) | 1-99min | 1-99min |
Random horn(Φ mm) | 5 | 6 |
Temperature control | Ultrasound protection alarm | |
Power source | 220V/ 50Hz(110V Can be customized) | |
Optional horn(Φ mm) | 2,3 | 2,3,5,8 |
| Ultrasonic generator | single |
| Vibration System (Transducer Assembly) | single |
| Soundproof box | / |
| Cross clamp (in soundproof box) | single |
| Test tube clip (in soundproof box) | single |
| power cable | root |
| Special wrench (for disassembling the horn) | set |
| fuse | 5A double |
| user's Guide | a part |
| Certification | a part |
| Warranty Card | a part |
Preparing Laboratory Samples:
Cell disruption (lysis) breaks open cell walls for study of cell contents
Power can be controlled precisely for disrupting more delicate cells/subcellular membranes
Destroying Pathogens on Medical Equipment:
cell disruption and heat destroy bacteria and other pathogens for safe, sterile medical equipment
Emulsifying and Homogenizing Solutions of Insoluble Liquids:
powerful ultrasonic waves achieve very small particle size
Creating and Homogenizing Solutions and Suspensions:
Very powerful cell dispersion and deagglomeration ensures that the suspension will not settle out for a long time
And many other applications involving cell disruption, dispersion, deagglomeration, homogenization, or emulsification in many different fields such as biology, physics, pharmaceutics, zoology and many others
