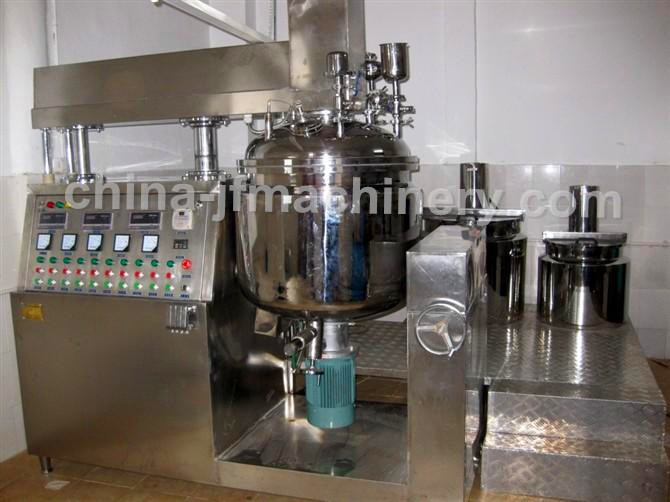

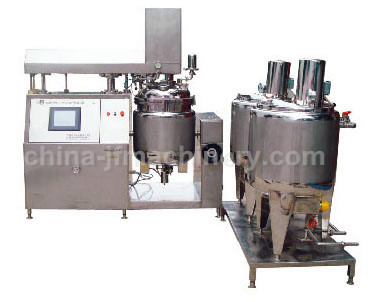

Lab size 10l vacuum emulsifier mixer cosmetic/small lotion mixer cosmetic machine,cream homogenizer
Product introduction
Small vacuum homogeneous emulsifying machine is suitable for various type of ointment, honey products, small, pilot or a board, it is the cosmetics, pharmaceutical production enterprises laboratory indispensable experimental tool. Equipment has complete function, reliable quality.

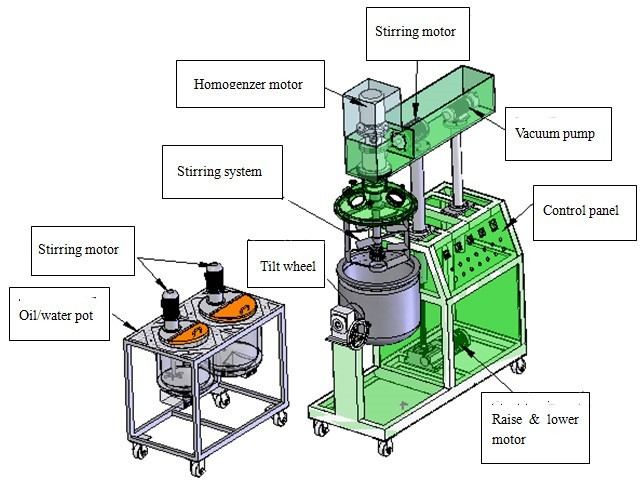

This equipment is a set of vacuum deaeration, mixing, homogenizing, heating, electric control and other functions in one, equipment is composed by the vacuum homogenizing emulsifying pot, vacuum system, a lifting system. It is also according to the requirements of the production process supporting oil and water pot.
Characteristic
The main boiler capable of automatic lifting, dumping of discharge, to sure maximum material completely discharging, configuration homogenizer or homogenizer can be variable frequency speed.

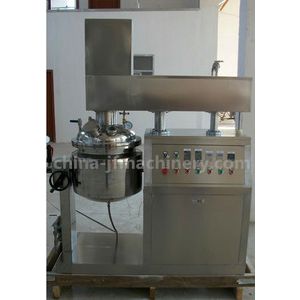

Lifting type lower homogenization
Technical features: the cover of main boiler tank can be lifted and lowered automatically .It is equipped with lower homogenizer and tilting discharging method to enhance the homogenizing effect of materials to the greatest extent .
Working capacity:5L, 10L
Homogenizing speed:50-3500RPM(frequency conversion speed adjustment)

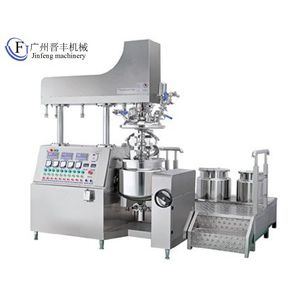

Lifting type external circulation
Technical features : The cover of main boiler tank can be lifted and lowered automatically ,and it is equipped with external circulation homogenizer to enhance the homogenizing effect of materials to the greatest extent .
Working capacity : 10L, 20L, 30L
Homogenizing speed : 50-3500RPM(frequency conversion speed adjustment )

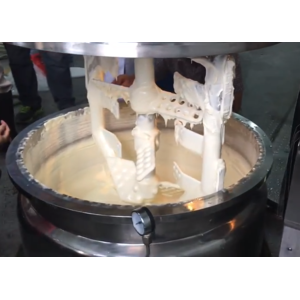

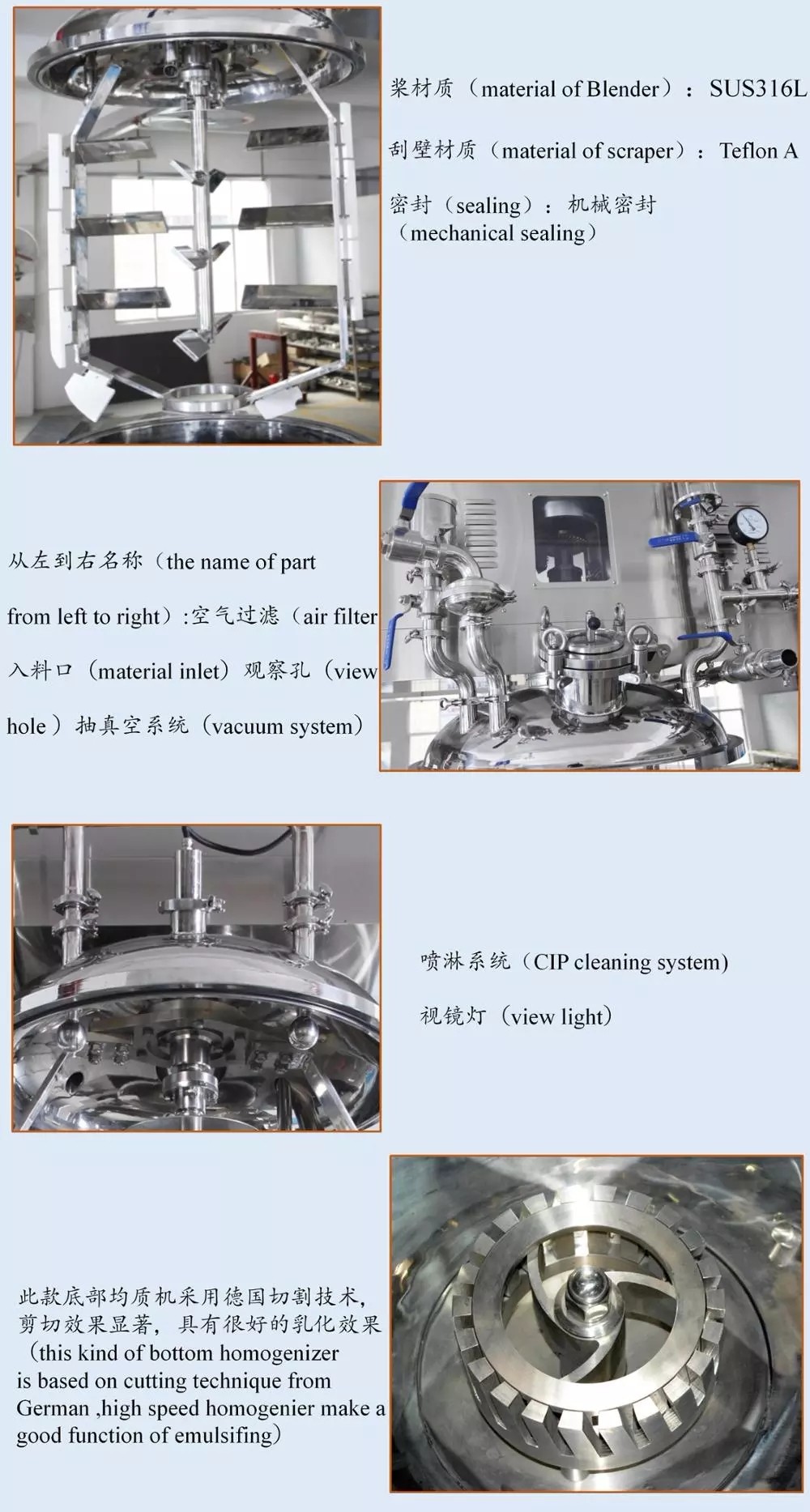

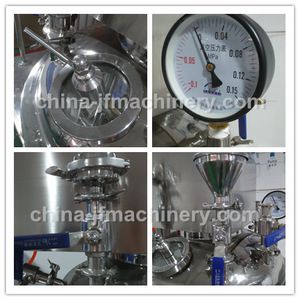

Details show
Technical parameters
Model | JF-A-5 | JF-A-10 | JF-A-20 | JF-A-30 |
Emulsifying pot volume | 5L | 10 L | 20 L | 30L |
The vacuum of emulsifying pot | -0.09 Mpa | -0.09 Mpa | -0.09 Mpa | -0.09 Mpa |
Emulsifying the pot temperature | ≤120 ℃ | ≤120 ℃ | ≤120 ℃ | ≤120 ℃ |
Jacketed pressure | Atmospheric pressure | |||
Speed of Scraping Plate Blender | 0-60 r/min | |||
Homogenizer speed | 2880 r/min | |||
Voltage | 50Hz 380V±10%-15% |
1. Package: PE film cover inside and then plywood case.
2. Accept terms: EXW, FOB, C&F, CIF, etc.
3. Shipping by Express, Air or Sea based on customers' requirements and lowest cost solution.
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.

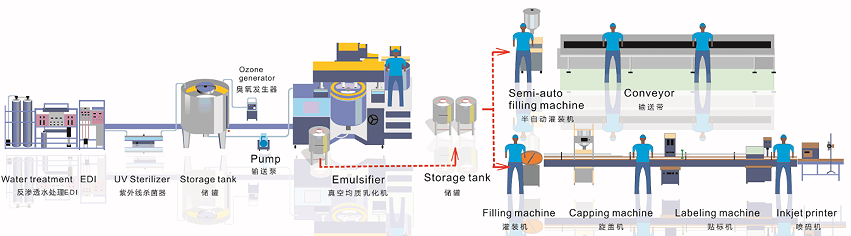

Full production line for cream(for your reference)
Semi-automatic production line,
Water treatment → EDI,ultraviolet(alternative)→ water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → semi-automatic filling machine → semi-automatic capping machine → semi-automatic labeling machine → inject printer → conveyor(alternative)
Automatic production line,
Water treatment → EDI,ultraviolet(alternative) → water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → automatic filling and capping machine → automatic labeling machine → inject printer
Application field:
