Introduction:
The Homogenizer is widely used in fields of Biotechnology, Human and veterinary medicine/ clinical medicine, Pharmaceutical industry, Cosmetics industry, Food industry, Petrochemistry, Paint and lacquer industry etc.
Philosophy made simple, so easy to handle. Ability to achieve quality results fast. It has the speed and power to emulsify, suspend, cut-up and disrupt to yield accurate results every time. Full flexibility as hand-held, post or wall mounted, with H-stand or plate-stand support.
Top speed of high 10000-30000 rpm, reduces processing time significantly. Big safety switch for unexpected emergency stop. Smooth motor drive makes working, very safe and comfortable. Additional feature of automatic overload protection increases the life span of the motor. Smooth start also prevents unnecessary spills
Process of dispersing
The material is sucked in to the head axially, then accelerated using the rotor’s high rpm rate, circumferential or peripheral velocity. The centrifugal acceleration between the outer rotor wall and the inner stator wall propels the material through the stator shearing slits.
Quick-change system: consists of only a few parts. One shaft, one axle, one Teflon bearing and one rotor stator. No special tools are needed to dissemble. Only requirement is a simple piece of cloth.
Features:
- Viscosity up to 10,000 mPas
- Continuosly adjustable speeds for better results
- Light-weighted and small-dimensioned for better handling
- Triple safety of the drive, overload protection and smooth start – against jerky work, safety switch
- 316L steel High quality dispersing tools as standard for better resistance to corrosion
- Quick change system of the dispersing tools for a short changing time between preparations
Specification:
Power Supply | 110-120V/60Hz,220-240V / 50-60 Hz [pls make choice] |
Motor Type | Universal motor, 500 Watt |
Speed Range | 10000-30000rpm |
Max. Circum. Speed | 22.7-36m/sec |
Speed Control | Dial knob 7 stage |
Working Volume (ml, H2O) | 10-5000ml 10-40000ml (Optional) |
Max. Viscosity | 10,000 mPas |
Material of Dispersing Shaft | SS 316L stainless steel / PTFE |
Weight | 1.3 kg |
Dimension L x W x H | 70mm x 70mm x 255mm |
Noise | 79 dB(A) |
Operating Environment | 0-40°C, 85% rel. humidity |
Protection Class | IP20 |
Ordering information[pls make choice]
D-500 Package 1: D-500 drive, with dispersing shaft 1 and H-600 stand,10-5000ml; for solid/liquid mixture
D-500 Package 2: D-500 drive, with dispersing shaft 2 and H-600 stand,10-5000ml; for Water/oil or Oil/water emulsifying
Accessories:

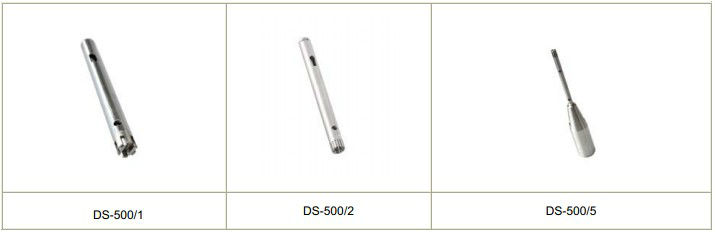

D-500 Dispersing shaft:
DS-500/1 | Dispersing shaft 1 for solid/liquid media,10-5000ml | SS20CSR20 - Volume 10-5000 ml - Max. Circum. Speed 22.7m/sec - Applications: Dispersing shaft 1 for solid/liquid media Ultimate emulsion fitness 1-10μm Ultimate suspension fitness 10-50μm |
DS-500/2 | Dispersing shaft 2 for W/O or O/W emulsions,10-5000ml | SS20FER20 - Volume 10-5000 ml - Max. Circum. Speed 22.7m/sec - Applications: Dispersing shaft 2 for W/O or O/W emulsions Ultimate emulsion fitness 1-10μm Ultimate suspension fitness 10-50μm |
DS-500/5 | Dispersing shaft 5mm,for solid/liquid media and volumes from 1-50ml | SS5CSR5 - Volume 1-50 ml - Max. Circum. Speed 5,8m/sec - Applications: Dispersing shaft 5mmfor solid/liquid media Dispersing of tissue decomposition, clinical & medical diagnostics and suspensions. Suitable for centrifuge products and Eppendorf tubes, centrifugal glasses etc. |

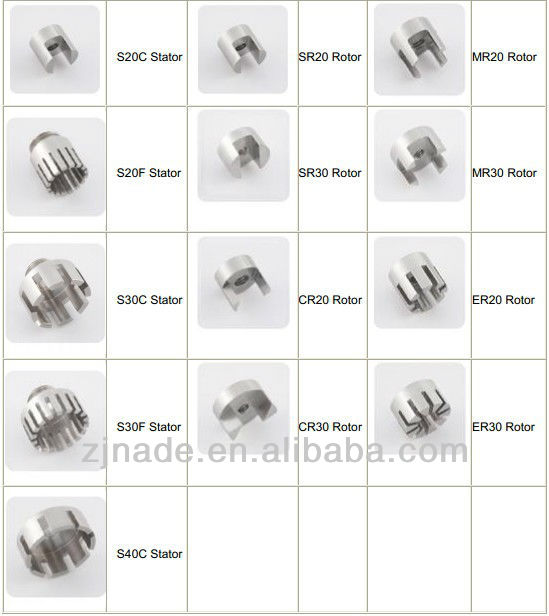

Stator and Rotor of D-500

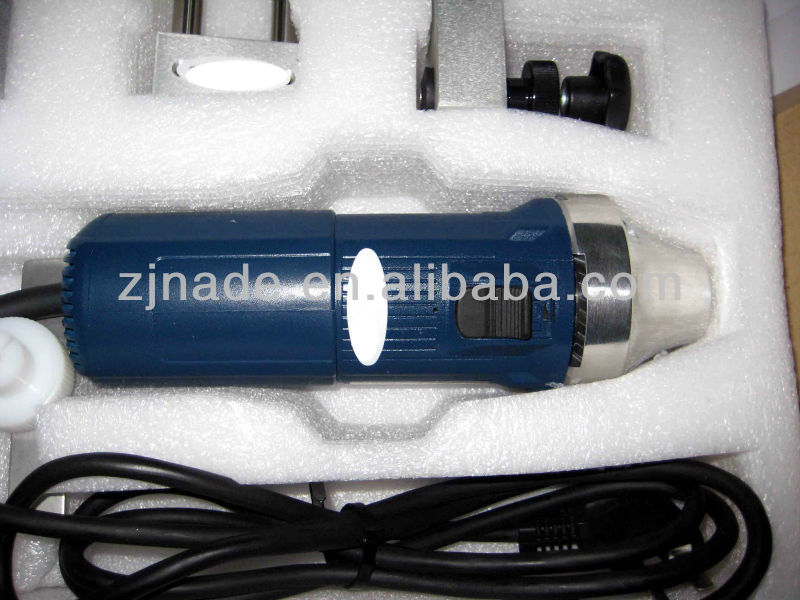

More pictures:

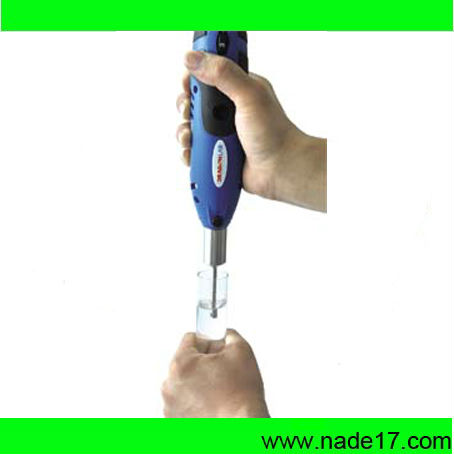

If you prefer handheld/portable type, please click for more information of our Model D-160. or Model AD145S-P.
