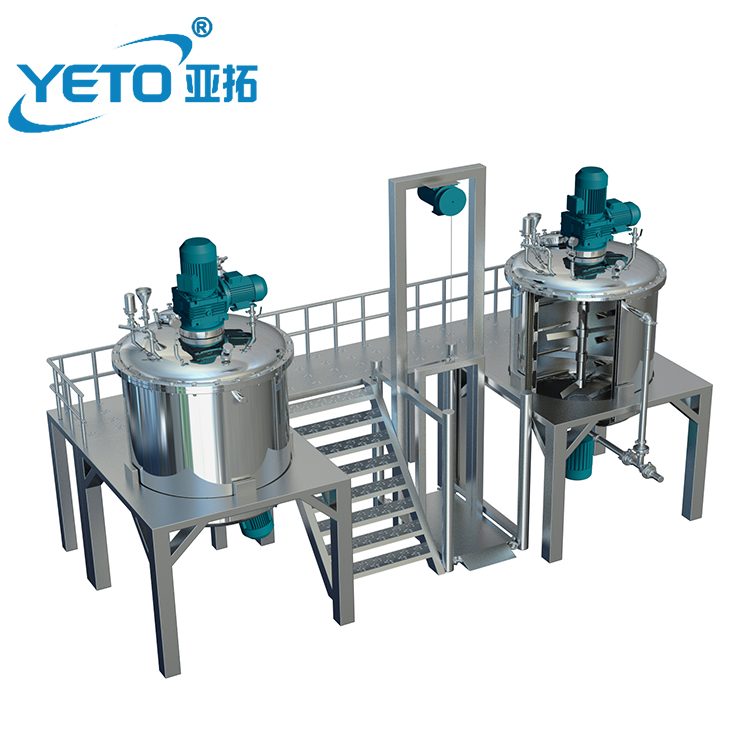

Customized high quality cosmetic cream vacuun emulsifier mixer machine , ointment high shear homogenizer

type emulsification machine is for large-volume production of products, fixed means that its lid is connected with the pot body and can not be separated.

Technical Feature

  • New
  • Agitator
  • Cosmetic
  • Viscous Fluid
  • Milling
  • Guangdong, China (Mainland)
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$15~20

PRIMARY PARAMETERS

Condition
New
Mixer Type
Agitator
Product Type
Cosmetic
Application
Viscous Fluid
Additional Capabilities
Milling
Place of Origin
Guangdong, China (Mainland)
Brand Name
YETO
Model Number
YPC
Max. Loading Capacity
customized
Voltage
380v
Power(W)
15kw
Dimension(L*W*H)
depend on the machine volume
Certification
CE Certificate
Warranty
1-3 years
After-sales Service Provided
Engineers available to service machinery overseas
Material
stainless steel
Function
cosmetic vacuum cream emulsifying mixer equipment
Usage
chemical, food ect
Heating method
electric or steam heating
customized
yes
packing type
wooden case
Machine Type
Vacuum emulsifying homogenizer
Application scope
Chemical Cosmetic

DETAIL DESCRIPTION

Customized high quality cosmetic cream vacuun emulsifier mixer machine , ointment high shear homogenizer

Product Description

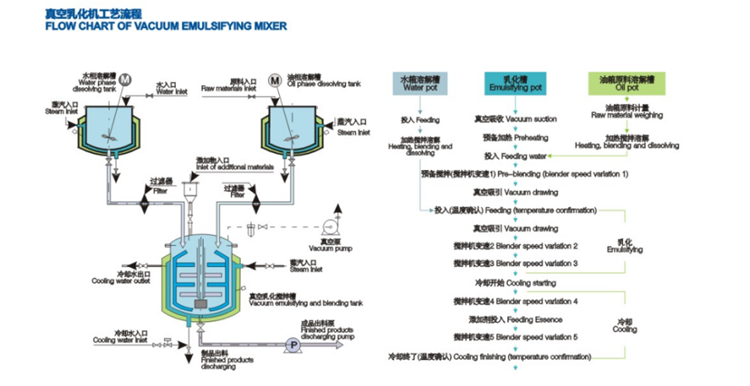

Fixed-type emulsification machine is for large-volume production of products, fixed means that its lid is connected with the pot body and can not be separated. Fixed Vacuum emulsifier mainly by the pretreatment pot, the main pot, vacuum pumps, hydraulic, electrical control systems and other components. The material will be sucked into the main pot for mixing, homogeneous emulsification after been fully dissolved in Water pot and the oil pot. Its main function is the same as lift-type emulsifier with shear, emulsification function. Mainly used in biomedicine; food industry; day care products; paint inks; nano-materials; petrochemicals; dyeing auxiliaries; paper industry; pesticides and fertilizers; plastics and rubber;



Why choose a fixed emulsifier?

1. The height of the plant is relatively low

2. Price more competitive

When the choice of fixed emulsifier, there will be some customers have questions, that is, when finished a pot of material, the workers how to clean the machine?

At the top of the pot we have a CIP shower system. In general, capacity below 500L will have a  top sprinkler system, capacity bigger than 500L will have 2-3 sprinkler ball on the lip.With hot water and some solvent,the pot can be cleaned clearly.



Model

Effective capacity

Emulsify

Agitator

Total power(KW)

KW

R/min

KW

R/min

Electric heating

Steam heating

YME-50

50

3.7

0-3000

0.37

0-63

25

5

YME-100

100

4

0-3000

1.5

0-63

27

9

YME-150

150

4

0-3000

1.5

0-63

27

9

YME-200

200

7.5

0-3000

1.5

0-63

40

12

YME-350

350

7.5

0-3000

2.2

0-63

50

16

YME-500

500

11

0-3000

2.2

0-63

50

16

YME-1000

1000

15

0-3000

4

0-63

100

30

YME-2000

2000

22

0-3000

7.5

0-63

120

50



Detailed Images







Company Information






FAQ





1. What about your factory?

   One of our factory is located in Guangzhou and another one is in Jiangsu province. We have more than 100 workers in our factory ,over 20 years experience on cosmetic machinery making and more 15 years experience for installing overseas.



2.What you can do for us if the machine is out of your catalogue?

  Factory as we are ,we have ability to manufacture machines based on your drawing or mind.



 3.What do we do if we encounter problem about the machine ?

   Showing us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem out of your control, our engineer will be sent to your factory (customer will pay the fee during the trip).



4. What about after sale service?

   We provide two years warranty period for large equipment, such as hydraulic homogenizer ,vacuum emulsifying mixer etc. One year for small filling machines, such as semi-automatic labeling machine series.

We provide wearing parts(not caused by improper operating) for free within the warranty period(except delivery fee).



 5.How about warranty and spare parts?

  We provide 1-3 years warranty and enough spare parts for the machine,and most of the parts can be found in local market also,also you can buy from us if all the parts that we provided are finished.



6 How to finish installing?

   Our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.



7. How can you control the quality and delivery?

    All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
