MIC machine 350L vacuum emulsifying homogenizer and mixer for cosmetic consists  of

· homogeneous emulsifying machine

· heating system (electric or steam)

· mixing system

· vacuum system

· lifting system (electric or hydraulic)

· operation control cabinet

· piping system

· oil tank and water tank optional

· Siemens touch screen optional

This MIC machine 350L vacuum emulsifying homogenizer and mixer for cosmetic is widely used in Food,  Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high  viscosity material and foamy liquid, such as: Cream, Sauce, Wax, Hair dye, Jelly, Hair remover, Ketchup, Honey, Cheese, Shampoo, Facial lotion, Lubricant oil, Ink, etc.It is the most suitable equipment to produce high-grade skin care creams and other products.

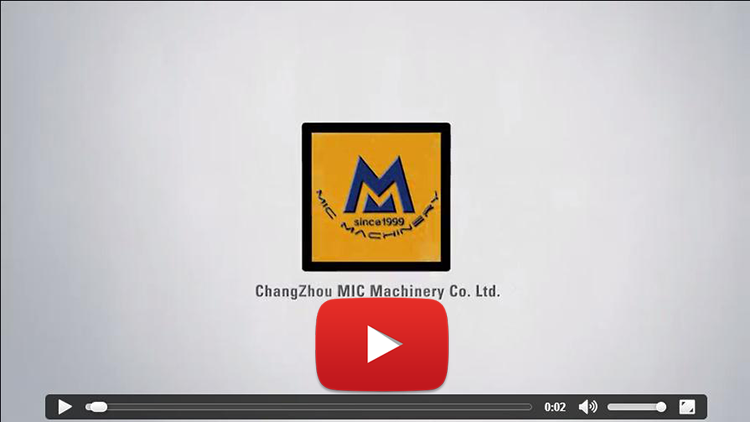

Please check working video link of this machine: https://www.youtube.com/watch?v=KztXV-dZRGU

Or click the followed pictures:

Main Features

1) Heating system: steam heating device attaching at the bottom. Heating with temperature display, easy to control.
2) Hydraulic lifting: (voltage 380V, power 120W) Lifting is easy to operate, so the material can be effectively emulsified in a closed condition.
3) Control System: The control system is equipped with digital time relay device, so it can adjust time and speed of homogenizer based on different material. All control buttons are concentrated together, clear at a glance.
4) Homogenizing system: (voltage 380V, power 15KW, 2800r/min)
5) Mixing system: (voltage 380V, power 5.5KW, 10-120 r / min) Monitoring with transparent filter, scraping the interlayer when mixing, frequency control.

Machine Parts

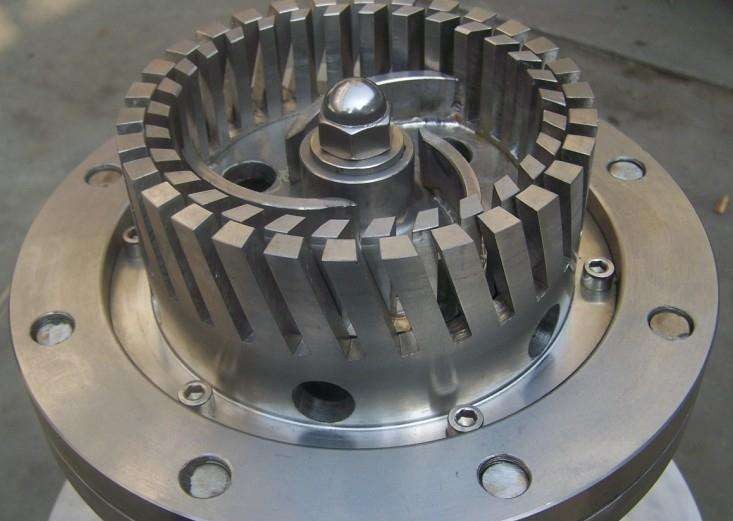

Name: High speed emulsifying head

Brand: Micmachinery

Original: China

This emulsifying head can realize converting two immiscible materials into an emulsion with speed at 2800-2900 r/min. And it is very suitable to make cosmetic cream, sauce and jam food products.

Machine Parts

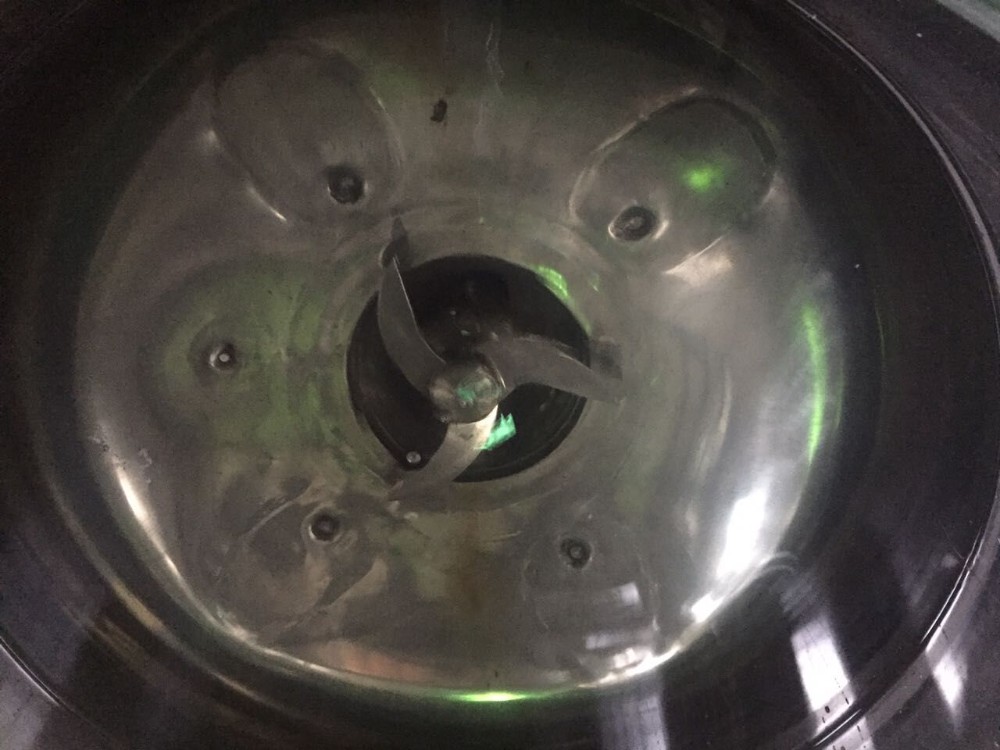

Name: Pot bottom blade and steam heating valves
Brand: Micmachinery
Original: China
These pot bottom blade and steam heating valves is very suitable for making cheese products. The blade(speed at 0-80 r/min) to cut the material more even, and steam heating valves can heat materials more even.

Machine Parts

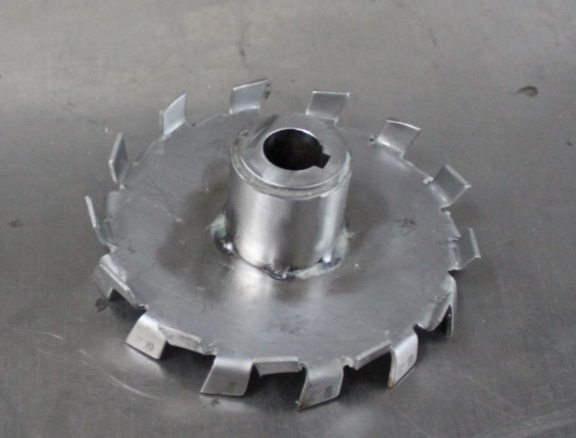

Name: Stirring heads
Brand: Micmachinery
Original: China
This stirring head is very suitable for making toothpaste products. It will be combined to double track on the mixing frame.

Machine Parts

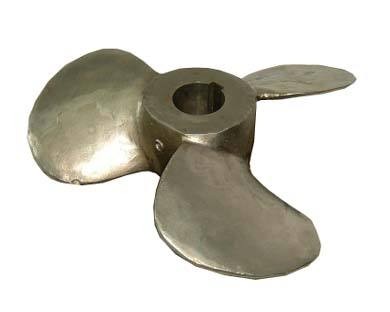

Name: Three-leaf stirring head

Brand: Micmachinery

Original: China

This three-leaf stirring head(speed at 80-150 r/min ) is very suitable for mixing liquid and oil products, eg. e-liquid, detergent, and essential oil, etc.

Q1:Are you a machine manufacturer or trading company?

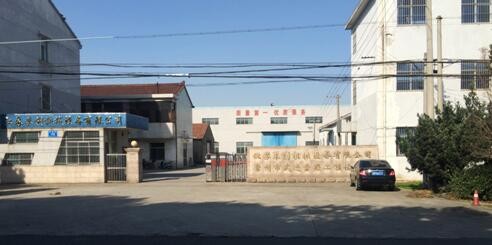

A1:We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!

Q2:How do you gurantee this machine normally operating?

A2: Every machine is tested by our factory and other client before shipping,We will adjust the machine to optimal effect before delivery.And spare is always aviable and free for you in warranty year.

Q3:How can I install this machine when it arrives?

A3:We will send the engineers overseas to help client installing, commissioning and training.

Q4: Could I choose the language on touch screen?

A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, Japanese and etc,.

Q5: If I need oil and water tank, would you provide for me? How much it wii cost?

A5: Yes, we could provide oil and water tank for you. The price of oil and water tank depends on the volume of tank.

Q6: Can this mixer programme with flow meter and pumps to realize auto material loading?

A6: Yes, we can offer you Siemens PLC and touch screen to programme auto material loading.

Q7: What kind of product can this machine make?

A7: Emulsifying machine is widely used in producing cream, sauce, wax, shampoo, and etc for food, cosmeric, chemical industry.

Contact me to get more details for  MIC machine 350L vacuum emulsifying homogenizer and mixer for cosmetic.
