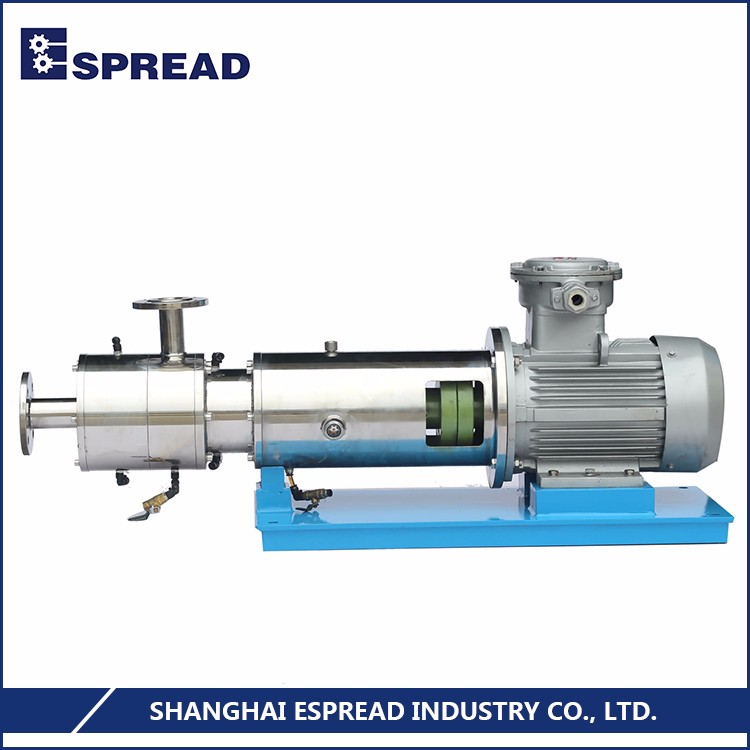

ESSW3 Three Stage Inline Emulsifier Homogenizer Pump
Technical Parameters - ESSW3 series
Model | Power | Speed | Capacity | Inlet | Outlet | Weight |
ESSW3-4 | 4kw | 3000rpm | 2.5m3/h | DN40 | DN32 | 225kg |
ESSW3-7.5 | 7.5kw | 3000 rpm | 6m3/h | DN50 | DN40 | 270kg |
ESSW3-11 | 11kw | 3000 rpm | 11m3/h | DN65 | DN50 | 325kg |
ESSW3-15 | 15kw | 3000 rpm | 16m3/h | DN65 | DN50 | 360kg |
ESSW3-18.5 | 18.5kw | 3000 rpm | 20m3/h | DN80 | DN65 | 395kg |
ESSW3-22 | 22kw | 3000 rpm | 25m3/h | DN80 | DN65 | 420kg |
ESSW3-30 | 30kw | 1500 rpm | 32m3/h | DN100 | DN80 | 480kg |
ESSW3-37 | 37kw | 1500 rpm | 40m3/h | DN100 | DN80 | 570kg |
ESSW3-45 | 45kw | 1500 rpm | 50m3/h | DN125 | DN100 | 660kg |
ESSW3-75 | 75kw | 1500 rpm | 60m3/h | DN125 | DN100 | 225kg |
Product Introduction:
- Three stages inline high shear mixer ESSW3 is a continuous production type emulsifier with high efficiency.
- It processes materials in continuous production or circulation of fine materials.
- The motor drives the rotor to rotate at high speed.
- Widely used in food and beverage, ink, paper, adhesives, lubricants, pesticides, cosmetics, pharmaceuticals.
1. Pump chamber with cooling jacket
2. All stainless steel bearing frame
3. A turn to the stator
4. Secondary turn stator
5. Three - turn stator
6. Double - ended mechanical seal
7. Precision bearings * 3pcs
Part Introduction:
1. Material imports, can specify a variety of styles.
2. Jacket cooling / heating outlet.
3. Material exports, can specify a variety of styles.
4. Double mechanical seal cooling water outlet.
5. Grease inlet.
6. High-performance motor (explosion-proof / non-explosion-proof).
7. Motor (explosion-proof / non-explosion-proof).
8. Jacket cooling / heating inlet9 / pump outlet.
10. Double-face mechanical seal cooling water inlet.
11. Grease replacement drain.
12. Base mounting.
Product Advantages:
1. A strong self-absorption capacity, continuity emulsification dispersion good effect, clean CPI design.
2. Speed can be up to 3000 rpm, it can test the speed and efficient energy saving inverter regulation.
3. All stainless steel body design and manufacture, optional Siemens motors, optional sanitary stainless steel motor cover.
4. The rotor and stator piece forging material using CNC machining centers, high-precision, high-speed line.
5. The use of double mechanical seal design, no leakage, safety and reliability, and reduce maintenance costs; jacket cooling machine designed to run for a long time.
6. Provides a variety of flange connections according to the actual needs of fast-fit quick SMS, etc., can be customized using special pressure and temperature environment of special products, optional buffer inlet pressure and mechanical seal water protection system.
Product Features:
Capacity - Self-pumping throughputs of 20 to 20,000 litres/hr.
No Bypassing - Product cannot bypass the precision rotor/stator workhead.
Materials of Construction - Product contact in SS304 or 316L stainless steel.
Motor Specification - Standard and explosion proof motors (Siemens, ABB, etc.) are available as standard.
Sealing - Single or double mechanical shaft seals available as standard.
Cooling - Cooling jacket structure as standard.
Inlet and Outlet Connections - All sanitary screw or flange fittings available on request (e.g. ISS, D/N, RJT, SMS, Tri-clamp, etc.).
Interchangeable Workheads - Three stagse rotor/stator configurations workheads as standard. For the rotor/stators configurations, 2, 4 and 6 layers structures makes the best shearing result.
