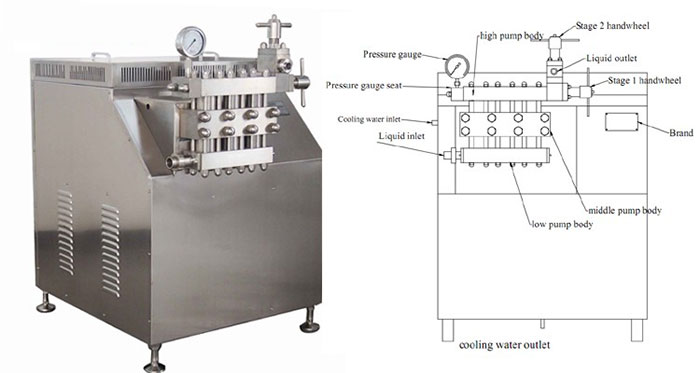

Milk high-pressure homogenizer ( Dairy and Juice Equipment)
Homogenizer is a kind of equipment, wich make a mixture of two or more substance mixed equally. It could improve the stability of the liquid and taste. Homogenized liquid is more smooth and more easily digestible. The homogenizer could be used for milk,ice cream, fruit, herb drink and so on.
Milk homogenizer pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process. Widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological .
| Model | GJB3000-25 |
| Capacity | 3000L/H |
| Rated pressure | 25Mpa |
| Max working pressure | 20Mpa |
| Power | 22Kw |
| Voltage | 380V, 50Hz, 3phase or customerized |
| Dimension | 115x95x140cm |
| Weight | 1200kg |
| Remark | 2 stage homogenizing, 3 plunger pistons |
attention: Liquid must be filtered by 80 mesh filter net before entering our homogenizer.
Packaging | |
Size | 146 (L) * 110 (W) * 150 (H)cm |
Weight | 1250kg |
Packaging Details | The normal package is plywood box(Size: L*W*H). If container is too tighter,we will use pe film for packing or pack it according to customers special request. |
Our Service
1. Do you have different pressure from the mentioned one?
Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity is also different.
2. What’s the meaning of your Model No.?
For example, our model GJB1000-30, 1000 means the capacity is 1000L per housr,30 means the max pressure of this model.
3. What's the warranty?
12 months for main machine.
Provide rationable price of easy worn parts long time.
