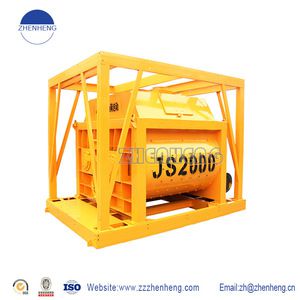

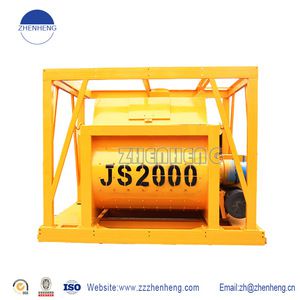

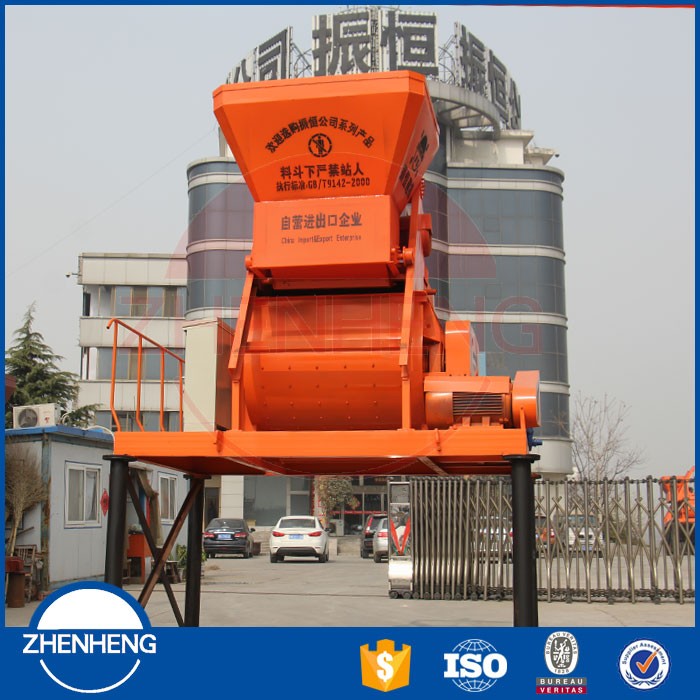

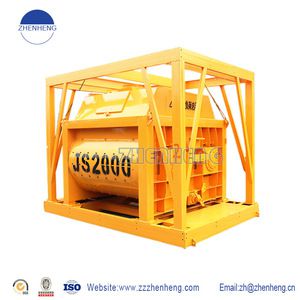

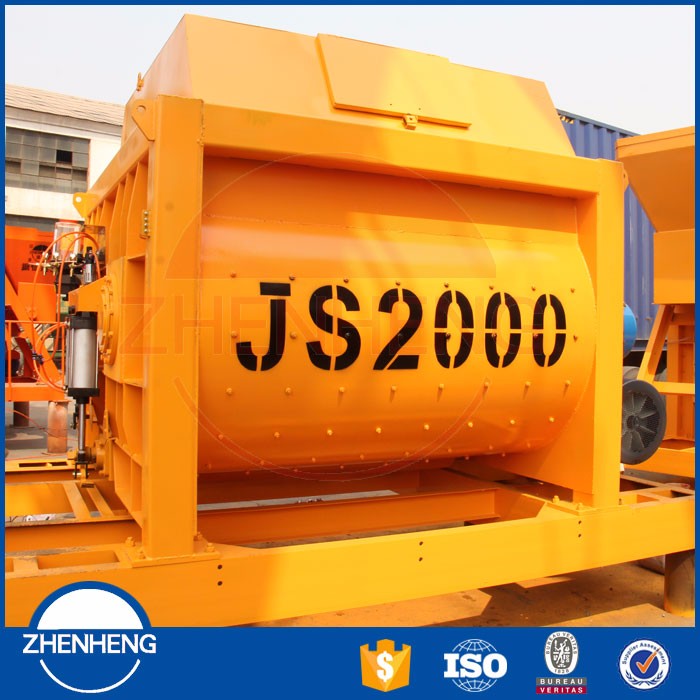

JS2000 Horizontal Continuous Feed Ribbon Screw Liquid Dough Concrete Mixer
| Product Description of JS2000 Horizontal Continuous Feed Ribbon Screw Liquid Dough Concrete Mixer |
| Brand |
|---|
Zhenheng |
| Type |
| Concrete Mixer |
| Discharging Volume |
| 2000L |
| Charging Volume |
| 3200L |
| Processed Materials |
| Subarid and rigid concrete, plastic concrete, flowable concrete, light aggregate concrete and various mortar. |
| Applications |
| Large and medium scale prefabricated factories and all kinds of construction sites, roads, bridges, airports, tunnels and other projects. |
| Brief Introduction |
| Zhenheng JS Series Concrete Mixer is twin shaft compulsory concrete mixer. It cannot only work independently, but also be applied, together with concrete batching machine, in concrete batching plant. JS Series Concrete Mixer has such advantages as reasonable and compact structure, outstanding mixing quality, high mixing efficiency, low energy consumption and long service life. |
| Features |
|
Technical Parameters of JS2000 Horizontal Continuous Feed Ribbon Screw Liquid Dough Concrete Mixer
| Model | JS2000 | |
| Discharging Volume (L) | 2000 | |
| Charging Volume (L) | 3200 | |
| Capacity (m3/h) | ≥100 | |
| Max. Aggregate Size (mm) | 60-80 | |
| Discharge Height (mm) | 3800/4200 | |
| Mixing Blade | Speed (r/min) | 25 |
| Quantity | 2*8 | |
| Mixing Motor | Model | Y250M-6 |
| Power (kW) | 37X2 | |
| Hoist Motor | Model | YES80L-4 |
| Power (kW) | 22 | |
| Water Pump Motor | Model | CK65-20L |
| Power (kW) | 4 | |
| Hopper Lifting Speed (m/min) | 20 | |
| Overall Dimension(L*W*H) (mm*mm*mm) | 10500*4500 *9200 |
Note: Any change of technical data shall not be advised additionally.

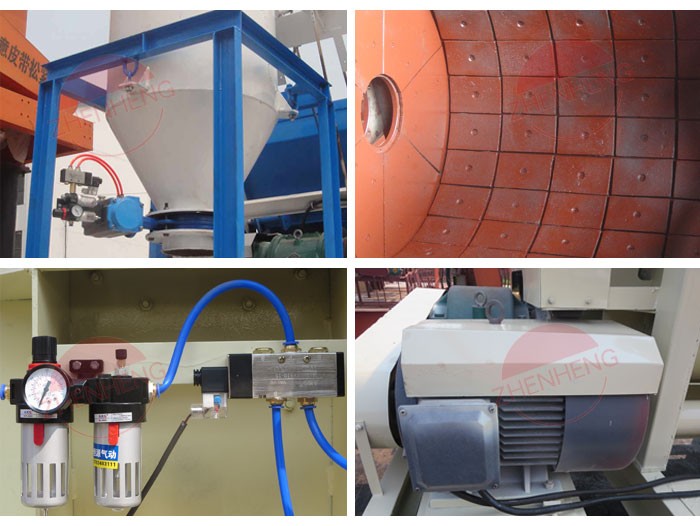

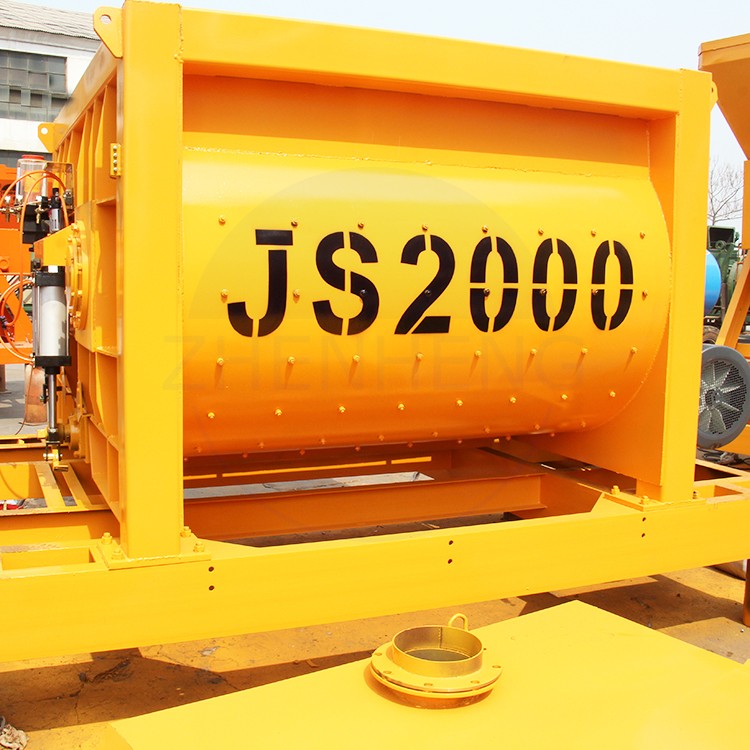

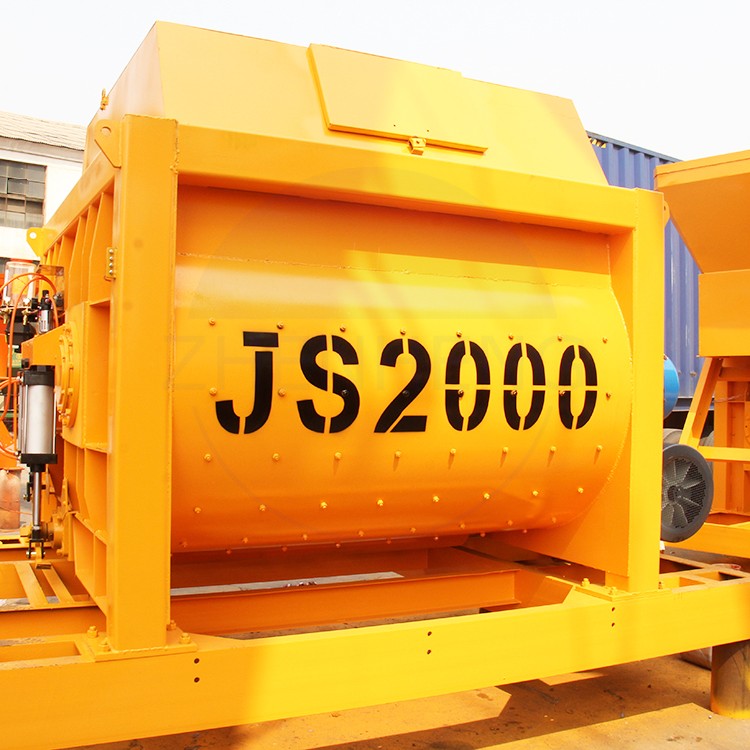

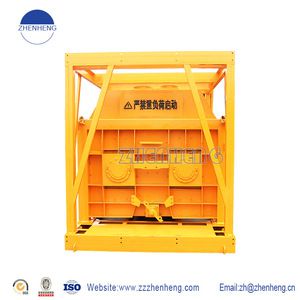

Details of JS2000 Horizontal Continuous Feed Ribbon Screw Liquid Dough Concrete Mixer

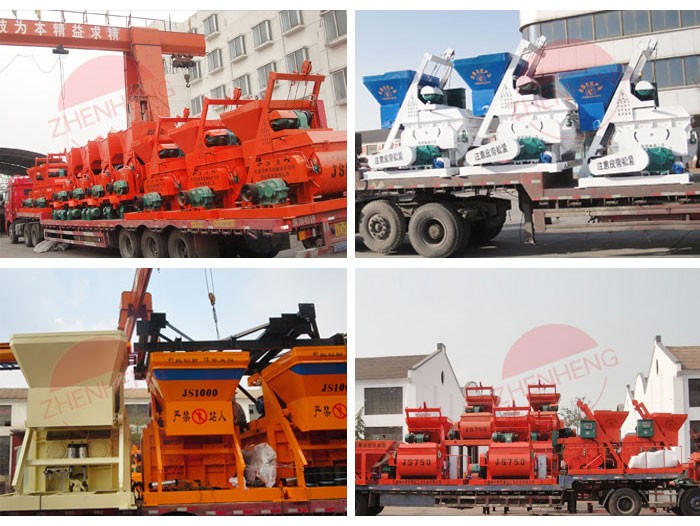

Delivery Site of JS2000 Horizontal Continuous Feed Ribbon Screw Liquid Dough Concrete Mixer
Recommended Hot Products Related to JS2000 Horizontal Continuous Feed Ribbon Screw Liquid Dough Concrete Mixer
 |
| Concrete Batching Plant |
| Max. Aggregate Size: 60-80mm |
| Capacity: 25-180m³/h |
 |
| Concrete Batching Machine |
| Aggregate Kinds: 2-6 |
| Capacity: 48-120m³/h |
 |  |
| FAQ |
| Q: How about the quality of your products? |
|---|
| A: We are factory with more than 35 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection. |
| Q: How about the price? |
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can. |
| Q: Do you provide after-sale service? |
| A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems. |
| Q: Do you provide equipment operation training? |
| A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports. |
| Q: Do you provide concrete batching plant flow chart? |
| A: Yes. Our experienced engineers are specialized in designing process flow for various concrete batching plants. We can design the concrete batching plant based on crustomers' particular requirements. |
If interested in our products, please contact with us without hesitation. We are waiting for your message. ↓↓↓
