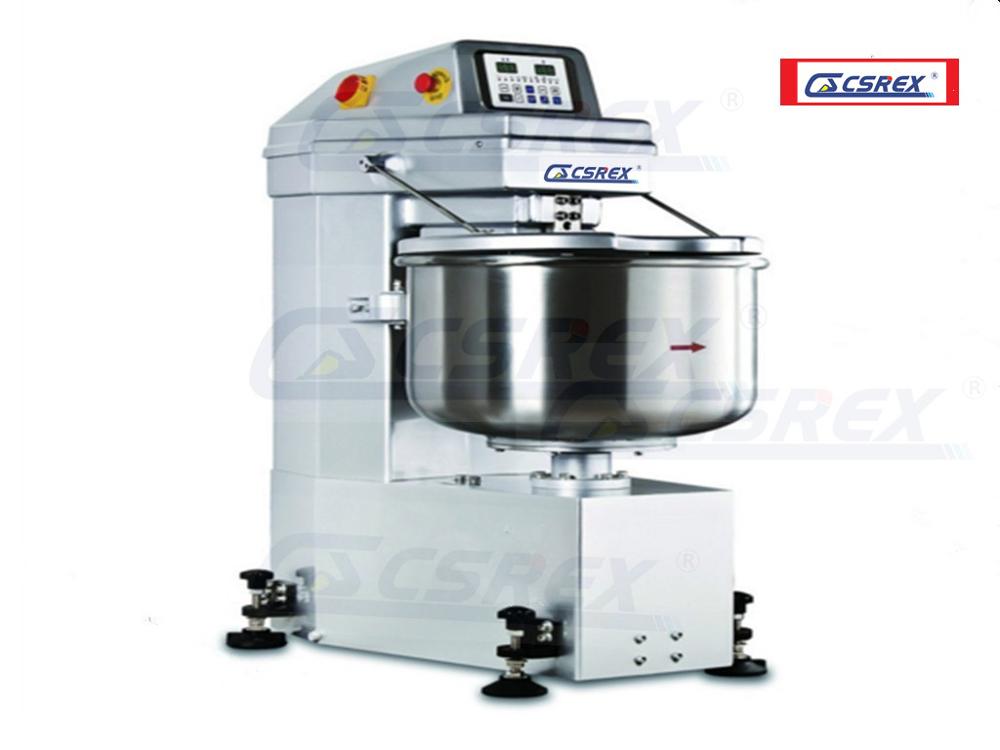

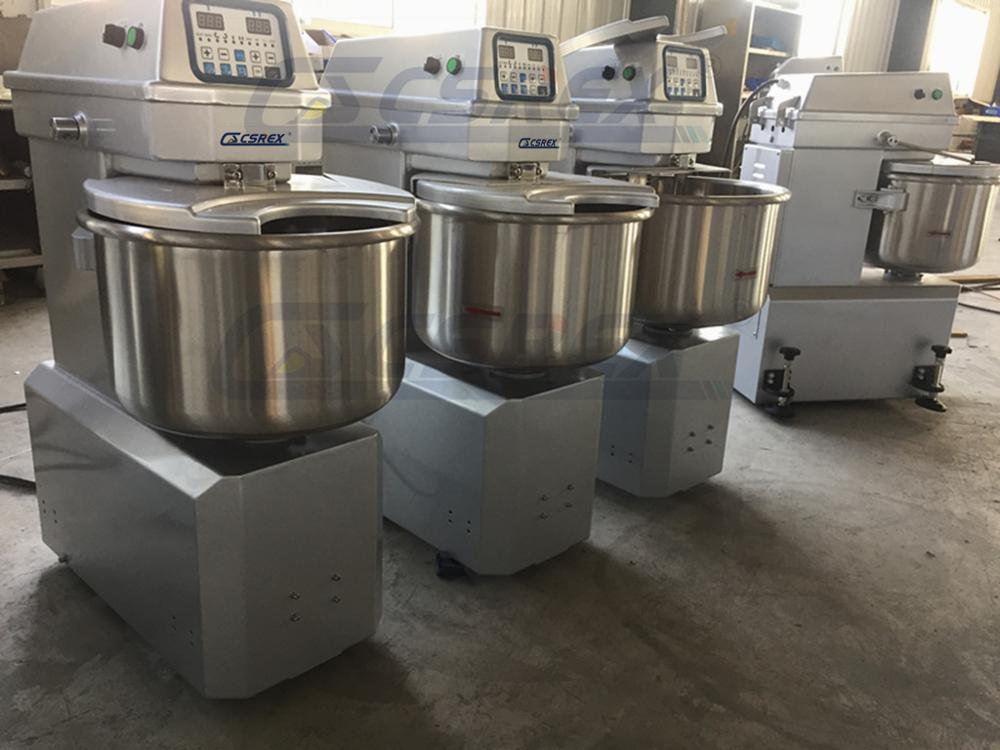

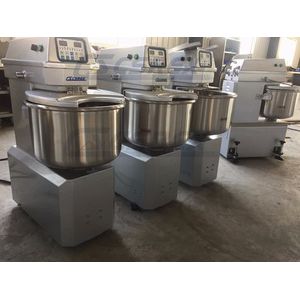

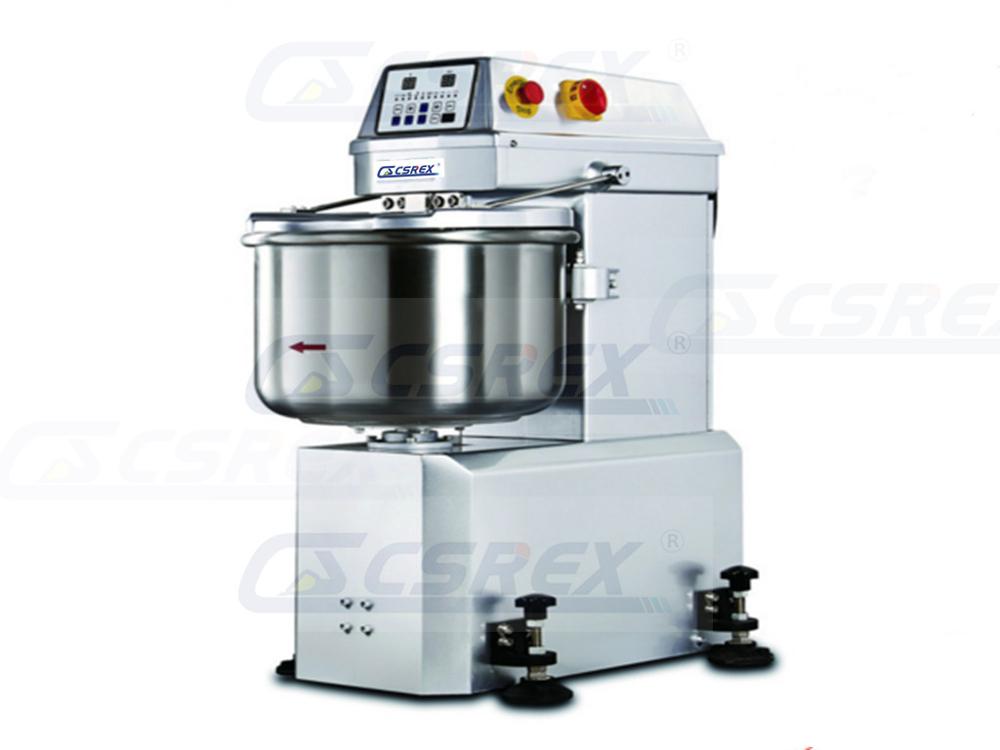

25/50kg flour 50kg wheat dough steno spiral dough mixer

Control:

Button/Touch Panel Bowl

Capacity: 60L

Flour  Capacity: 12.5kgs

Dough capacity: 25kgs

Voltage: 110/220/230/380V

Frequency: 50/60Hz

Power: 2200W

Mixing Speed: 140/280RPM

Bowl Speed: 12.8/25.5RPM

Net Weight: 130kgs

Packing Size: 600*830*1050mm

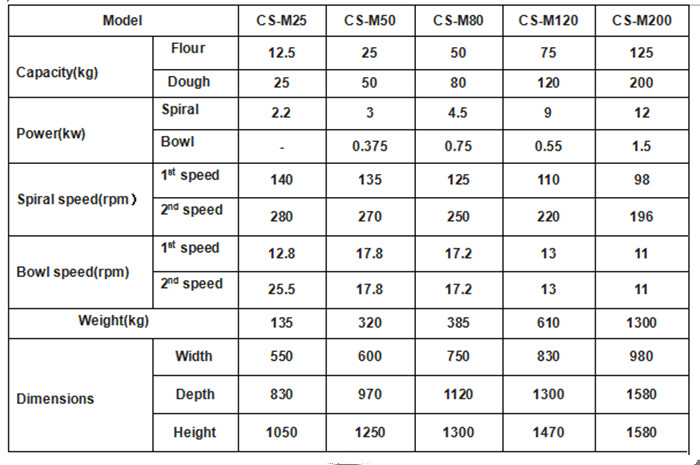

Series :

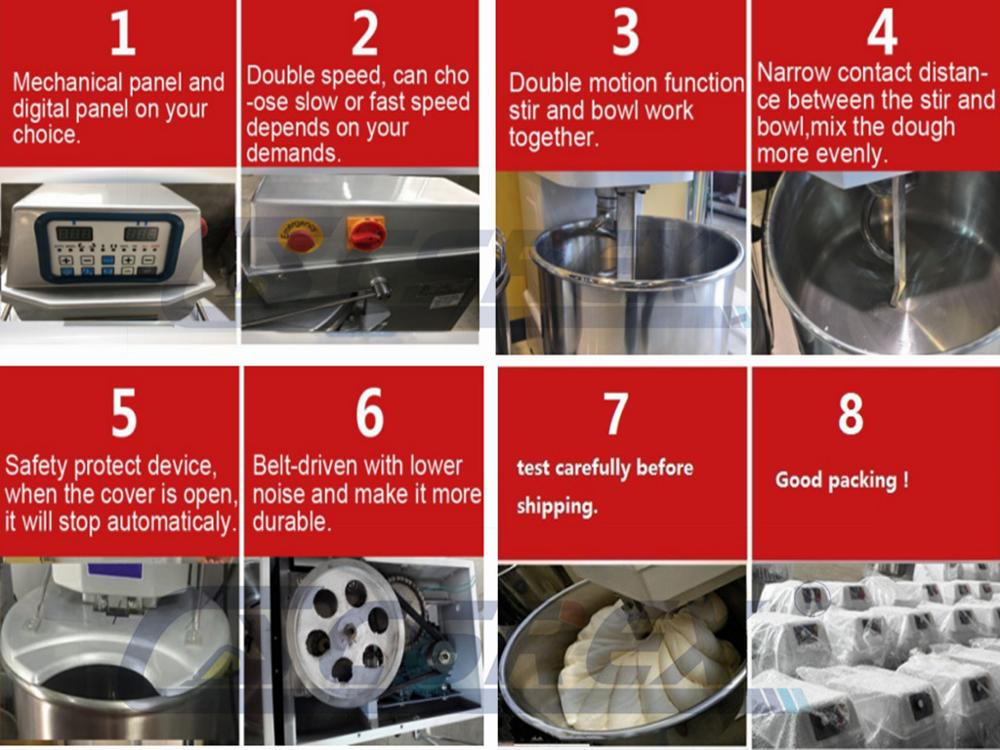

Features:

* CSREX approved by State Intellectual Property Office of

   China.

* Stable running and low noise due to innovative design of

  gearless transmission structure.

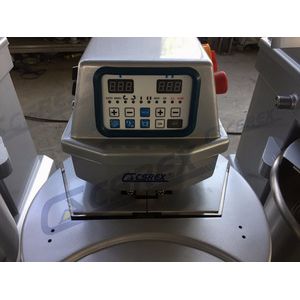

* Touch control by microcomputer. * Automatic speed adjustment

  and fitted with built-in timer.

* Both manual and automatic control.

* Exclusive technology with durable stretch forming hardtop.

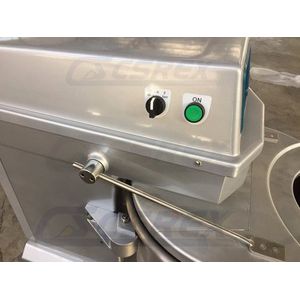

  Controls

   The following controls are standard on all Spar Mixers:

   separate start and emergency stop buttons so operators

   can shut down the mixer immediately in an emergency

   situation,  and thermal overload protection

  Cord and Plug

    6 ft. flexible three wire cord and top quality plug.

  Transmission

    Heat-treated, hardened alloy, precision milled

   gears operate with planetary action. Gears are packed in a

   long-lasting, high pressuregrease. Planetary gears are driven

   by direct linkage to the motor drive shaft. This design yields

   high-torque mixing power.

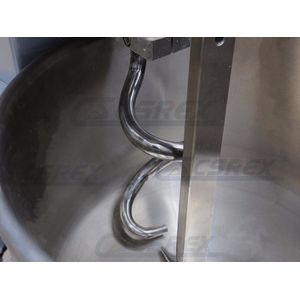

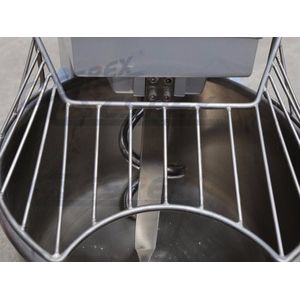

  Bowls and Agitators

   Standard equipment includes high quality stainless steel bowl,      dough hook, flat beater,  and whip. A sturdy hand lever on

   the body column raises and      lowers the bowl as well as

   locking in place at the top and bottom positions.

  Attachments

   Standard is the No. 12 hub for powering a

   standard size vegetable slicer/cheese shredder and a standard

   size meat mincer/grinder. Spiral mixer with fixed bowl series

FAQ:

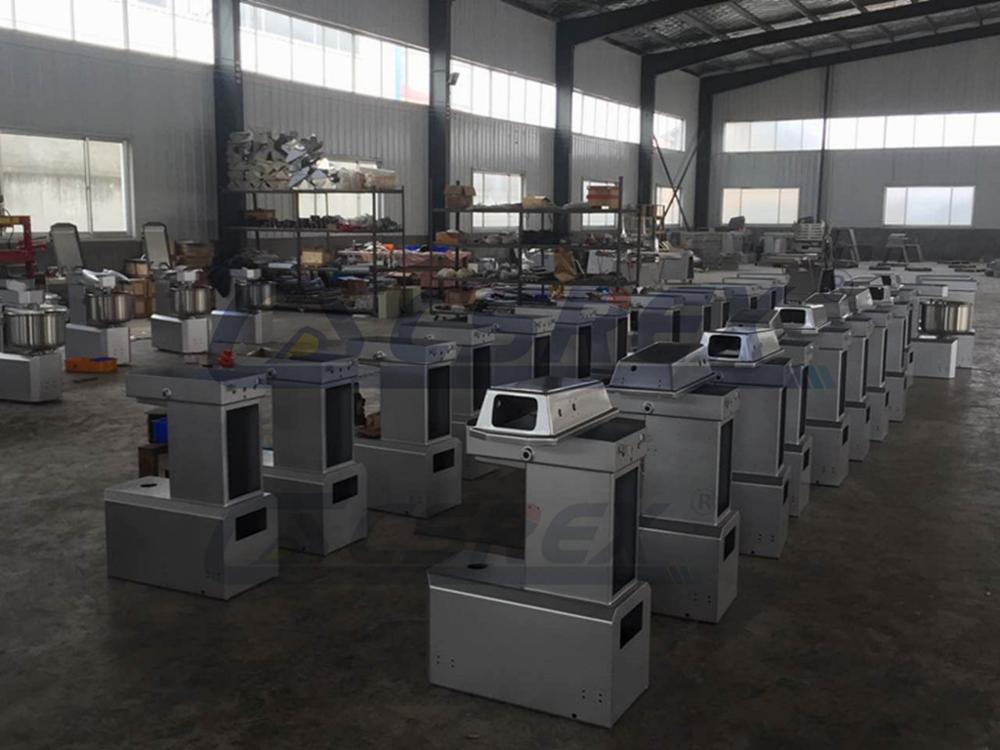

1. Q:Where is your factory located? How can I visit there? A:Our factory is located in Qingdao City, Shandong

   Province, China. You can fly to Qingdao air port from Beijing

   or Shanghai directly.

2. Q:What is the material of your products? A: The material is stainless steel. We can also choose material as      the customer's requirement.

3. Q:How does your factory do regarding quality control? A:Quality is priority.we always attach great importance to quality c

   ontrolling from the very beginning  to the very end.  Our factory

    has gained BV, CE,ISO, SGS authentication.

4. Q:May I know your payment term? A: Mostly, we work with: FOB / CNF / CIF or EXWORK.

   30% deposit by T/T payment for start production,

   70% by T/T or L/C before delivery.Small amount by T/T or

   Western Union or L/C are acceptable.

 5. Q:May I know your delivery term? A: Depending on your quantity, for goods we have in stock,

   Delivery takes 2 days to comply with your request to replace

  the plug or other configurations.

  For Regular order, delivery takes between 20 days  or so .
