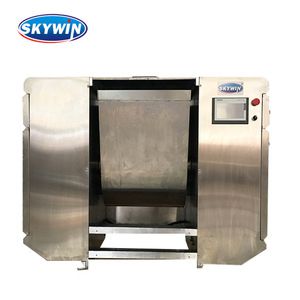

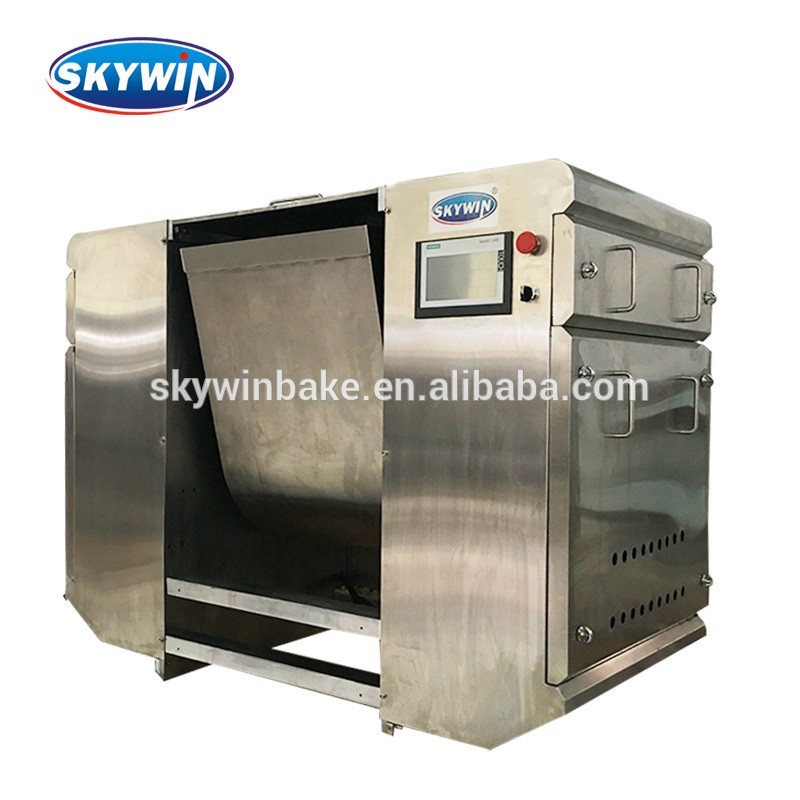

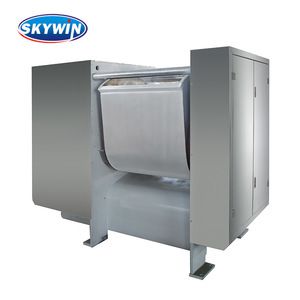

Industrial Horizontal Electric Biscuit Bread Large Food Dough Mixer
Industrial Big scale hard biscuit and soft biscuit Dough kneading Mixer 600KGS
(HM-600)Suitable for mixing flour dough for soft and hard biscuit and cake production, cream mixing and etc.
Special for hard and soft biscuit dough, Twin direction spiral mixing Steel blade
Mixing speed: 25r/min to 50r/min
Mixing capacity: 600kg/batch
Mixing time: 15~25minutes/batch
Double jacket cooling water circuit
304# Stainless steel Bowl
ABB motor, SEW gearbox, SIEMENS electric parts
Double speed:
Low speed motor power 55kw, speed 25r/m
High speed motor power 40kw, speed 55r/m
Hydraulic pressure tipping, power 2.2kw
Power: 52.2kw, Electric: 380V/220V/50Hz
Weight: 2700kg
Dimension: 2950x1700x2600mm
The equipment is used for dough mixing.after the kneading,rolling and folding process,Dough has a smooth surface with good elasticity,
toughness and extensibility.It is suitable for both hard and soft biscuits.
The mixing blade and bucket are made of 304SS,U-form bucket has temperature insulation function,simple operation and safety.
The mixing bearing is designed that seal is separated from the bearing to prevent the grease from contaminating the dough in case of broken seal.
Hard biscuit production line
Mixing - feeding - sheeting - forming - baking - cooling - packing.
As above, it is a simple flow chart of a complete biscuit production line.you can choose different types of dough mixer to kneed and mix the flour.
Soft biscuit,cookie production line
Mixing - Rotary moulding - wire cut forming - deposit forming - Baking - Packing
Any equipment of biscuit production line, please feel free to contact us.
