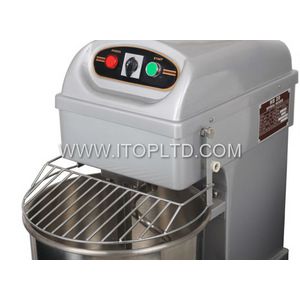

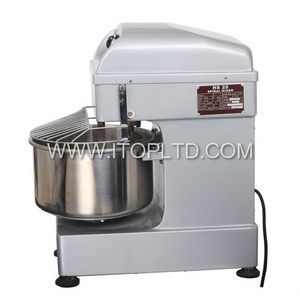

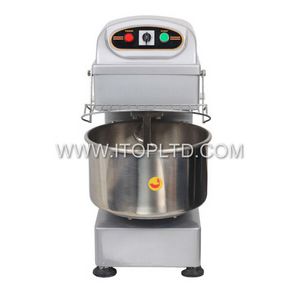

1. HS Series Spiral Mixer is a new type of dough mixer.

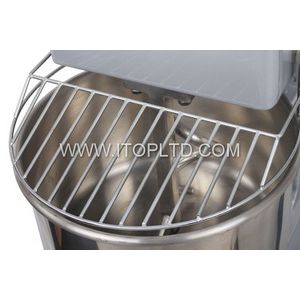

2. In work,both mixer and bowl revolve simultaneously,thus the mixing speed is greatly increased and the mixing effect is greatly improved.Safety cover or shield is equippedin all machines.
3. All parts in contact with food are made of stainless steel or steel with specially treated surfaces,which are endurable in use and in conformity with national food hygiene standard.
4. HS Series Dough Mixers are easy to operate and good looking. They are widely used for dough mixing work in bread bakery houses, hotels, restaurants and company canteens.
Specification
| Model | Bowl capacity | Max flour capacity | Mixing speed | Bowl speed | Voltage | Power | Dimensions | Weight |
| (dm3) | And mix time | (r/min) | (r/min) | (kw) | axbxc(mm) | (kg) | ||
| HS20 | 21 | 8 kg 8~10 min | 185 | 15 | 220v/ 50Hz | 0.75 | 628x380x535 | 70 |
| HS30 | 35 | 12 kg 8~10 min | 185 | 15 | 220v/380v 50Hz | 1.1 | 715x430x626 | 90 |
| HS40 | 40 | 16 kg 10~12 min | 185 | 15 | 220v/380v 50Hz | 2.2 | 856x473x750 | 127 |
| HS50 | 50 | 20 kg 10~12 min | 185 | 15 | 220v/380v 50Hz | 2.2 | 906x523x750 | 130 |

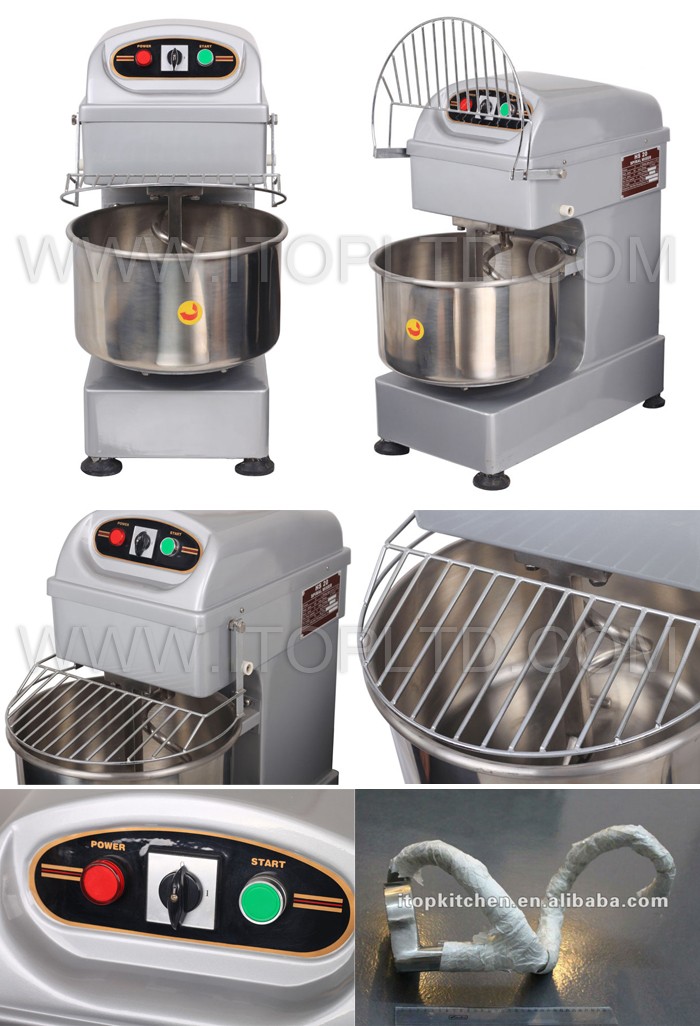

1.These machines are perfect for soft dough such as bread and pizzza. Single speed and doubleacting(bowl & hook both rotating). Stainless steel bowl & guard. Powerful motor, heavy duty!
2.With cooling fan, durability, and packed for easy maintainence synchronous-belt & gear driven transmission construction.
3.Low noise reliable, durable, and consistent performance, minimum downtime with positive drive under heavy loads.

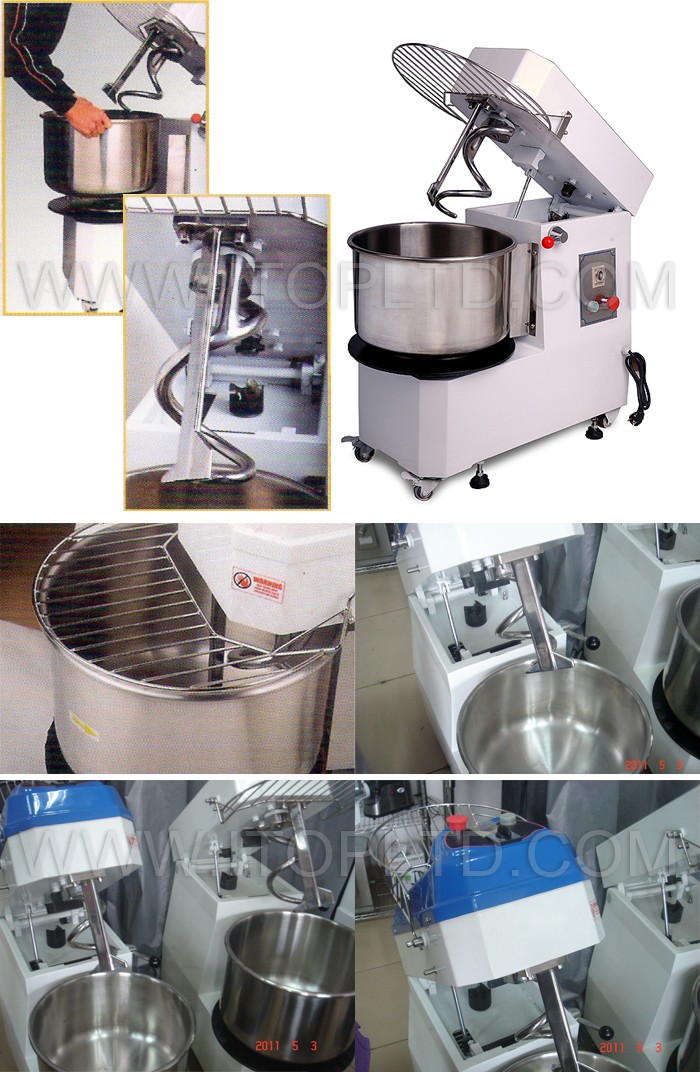

4.Rising head and extractive bowl head liftable design, easy to feed stuffer emergency stop switch, guard safe switch. (When the guard is not on the position, the machine stops). Safty control switch.
5.CE certification.
| Product name | Single speed dough mixer | ||
| Model | RD20 | RD30 | RD40 |
| Volume(L) | 20 | 30 | 40 |
| Voltage | 220V~240V/50Hz,110V/60Hz | ||
| Power(Kw) | 1.5 | 1.5 | 2.2 |
| Bowl RPM(r/min) | 16 | 16 | 16 |
| Hook RPM(r/min) | 156 | 156 | 156 |
| Capacity(dry flour)(kg) | 8 | 12 | 16 |
| Dimensions(mm) | 865*460*855 | 890*480*915 | 975*585*103 |
| G.W.(kg) | 150 | 160 | 202 |
| N.W.(kg) | 134 | 142 | 173 |
Specifications

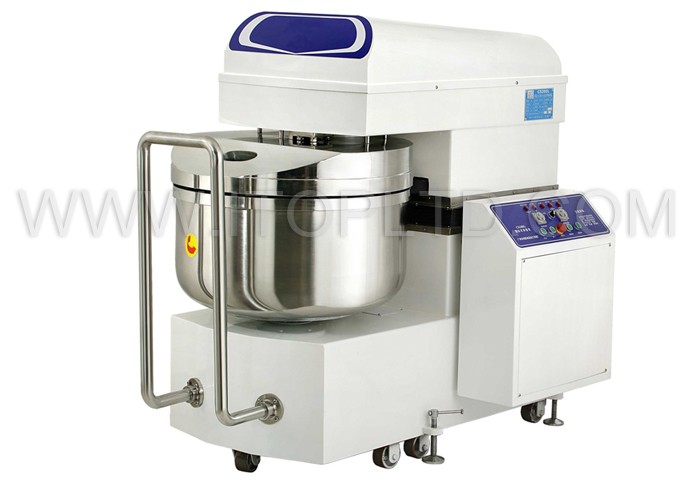

1.Dough mixers kneader .
2.color: white/ grey/ silver .
3.with emergency button, shield open, machine stop .
4.mixer&bowl dual,time .

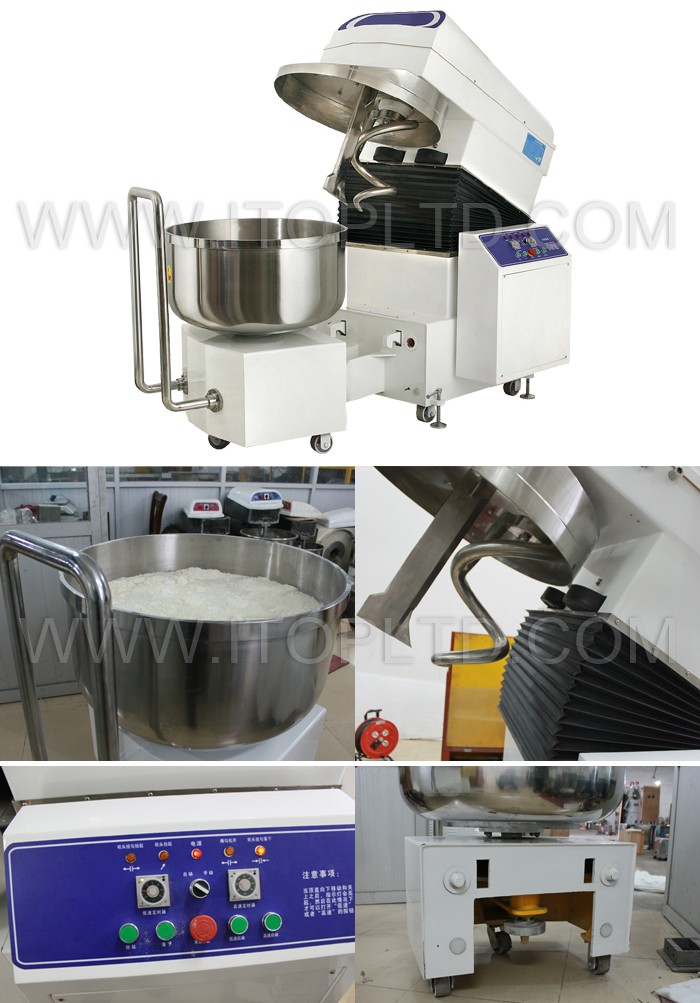

| Product Name | dough mixer kneader | |||
| Model | CS80 | CS100 | CS130 | CS200 |
| Rated Voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power(kw) | 1.5/2.4 | 3/4.5 | 2.8/5.6 | 5/7.5 |
| Rated Input Power(kw) | 3.9 | 6.3 | 7.4 | 10.0 |
| Bowl Volume(L) | 80 | 100 | 130 | 200 |
| Max.kneading capacity(kg) | 25 | 40 | 50 | 75 |
| Net Weight(kg) | 429 | 470 | 507 | 675 |
| Dimensions(mm) | 1122*650*1305 | 1160*650*1340 | 1222*750*1430 | 1332*950*1510 |
by recommendation,75kgs flour:low speed 3-4 minutes,the water and flour mixer well,then turn to high speed mode to improve the dough's toughness.
when finished, the pictures showed above
