high quantity LW450X842N drilling mud decanter centrifuge

PRIMARY PARAMETERS

Condition

New

Type

Separating Plant

Product Type

Perfume

Place of Origin

Shandong, China (Mainland)

Brand Name

JINTAN

Model Number

LW450X842N

Voltage

220V/380V/400V/440V/460V

Power(W)

Main drive

Weight

2550KG

Dimension(L*W*H)

2360*1850*1750

Certification

API

Warranty

12 nonths

After-sales Service Provided

Engineers available to service machinery overseas

Color

Blue

DETAIL DESCRIPTION

1.Production Description:

Mud decanting centrifuge can recycle the barite. It's important by cleaning out the small particle(2μm-7μm) from the drilling fluids to control fluids density and viscosity and improve the efficiency of well drilling.

Advantage of mud centrifuge:

The core of decanter centrifuges use the stainless steel. Residue outlet use strong alloy steel. Bearing use PAG (Germany brand) and SKF (Sweden brand). Electric parts use the Siemens and Schneider chint brand ( ATEX , IEC,EX standard)

Over-load protection

1:Hydraulic coupler protection.

2: Control cabinet current protection.

3: Differential mechanism protection.

4: The vane of spiral propeller painted carbide.

5: Variable frequency decanter centrifuge is also avaliable.

2.The techniclas of the Mud decanting centrifuge:

Model	LW450X842N	LW450X1000N	LW355X1250N	LW600X1019
Bowl Diameter	450mm	450mm	355mm	600mm
Rotary speed	1800r/min	1800r/min	3200r/min	1450r/min
G-force	815	815	2035	705
Separation point	5~7μm	5~7μm	2~5μm	5~7μm
Main drive	22kW	30kW	30kW	45kW
Back drive	5.5KW	7.5KW	7.5KW	7.5KW
Max capacity	≤40m³/h	≤60m³/h	≤40m³/h	≤60m³/h
Weight	2550kg	2900kg	2950kg	3650kg
Dimension	2360x1850x1750	2600x1860x1750	2900x1850x1750	2900x1600x1950

Model	LW355X1250N-BP	LW450X1000N-BP	LW400X1200N-BP	LW450X1258N-BP
Bowl Diameter	355mm	450mm	400mm	450mm
Rotary Speed	0~3200r/min	0~2400r/min	0~3500r/min	0~2800r/min
G-force	815	815	2035	705
Separation	2~5μm	5~7μm	2~5μm	2~5μm
Main Drive	37kW	37kW	37kW	37kW
Back Drive	7.5KW	7.5KW	11KW	11KW
Max capacity	≤40m³/h	≤40m³/h	≤50m³/h	≤60m³/h
Weight	3000kg	2900kg	3500kg	3000kg
Dimension	2900x1850x1750	2600x1860x1750	2900x1750x1750	2950x1620x1850

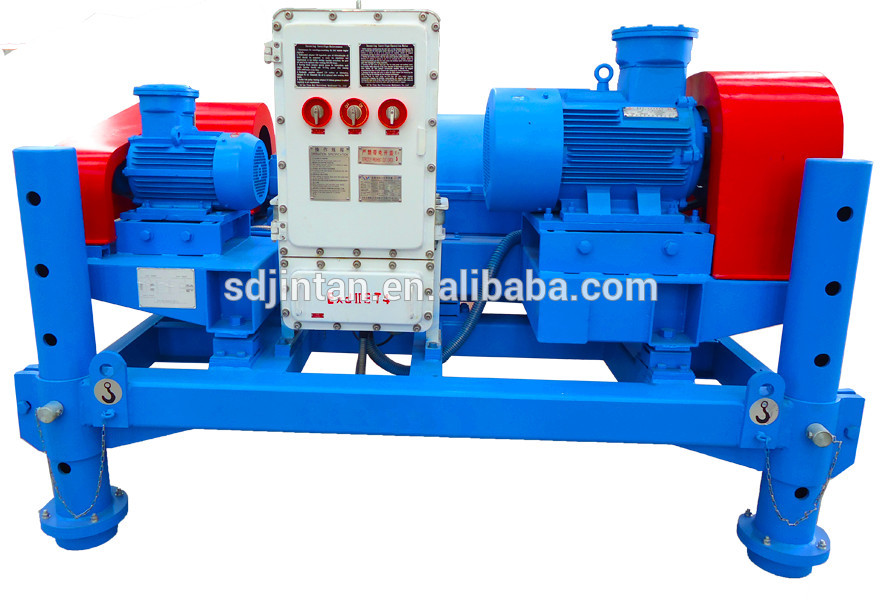

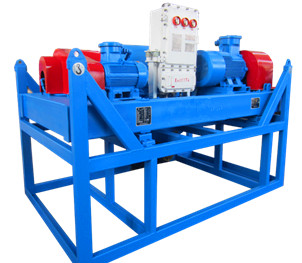

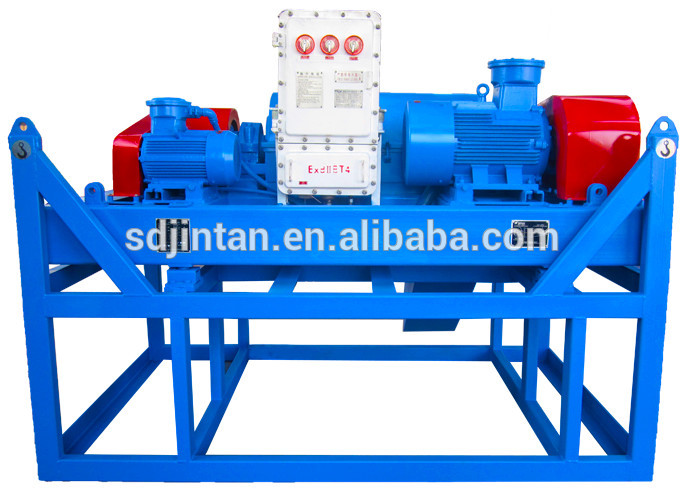

3.The pictures of the products :

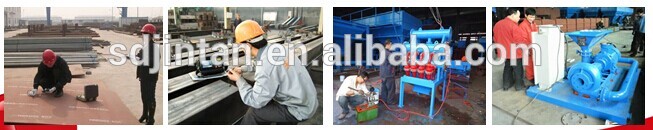

4.The process of the manufacture:

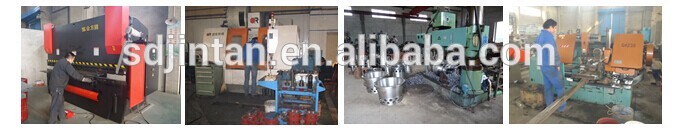

Advanced production equipment:

Quality control step test:

5.Our Service:

Before sale:Reasonable solution based on the customer requirement.

Order service:Fax contract and transfer contract is available .

After sale: 1 year quality warranty and training of installing and debugging for free.

Fund service: Inner customer.48 hours arrive below 1000 km .72 hours arrive over 1000kw.

Foreign customer: We will arrived the destination as soon as possible .

Parts service: Every product parts has the stock to supply customer as soon as possible.
