Mud separator decanter centrifuge hot sale
Introduction of decanter centrifuge:
It is a horizontal spiral discharging,continuous operating equipment of deposition.
Drum and spiral feeder roatate at the same direction with certain yet different speed.Material is led into the feeding spiral inner cylinder via feeding pipe after speeded up.Under centrifuge force, realtively heavier solid-phase material deposits on the durm wall forming the residue layer and solid-phase residue being continuously pushed by the spiral feeder to the end then discharged under full speed operation after dehydration.
It meets the needs of continuous feeding,deposition,separation,washing and discharging under full speed operation.
Also enjoys features as compact strtuture, smooth running, strong adaptability of material, large handling capacity, easy maintenance.
Application:
1.Separation of industrial and domestic sewage dewatering
2.Starch washing, grading dehydration
3.Soybean,wheat protein dehydration
4.Fish meal,fish dehydration
5.Distillers dehydration
6.Juice Purification and dehydration of pulp fiber
7.Separation and purification of animal and vegetable oils
8.Separation and purification of coal tar
9.Kaolin, graphite dewatering
10.Fuel,paint
11.Ore pulp
Main characteristic:
1.Drum,spiral and other parts available of corrosion:stainless steel, titanium alloy
2.Rotary spray delivery conveyor can be wear-resistant alloy or carbide inserts welded sheet
3.Variable speed drum
4.Adjustable screw for differential speed,very or stepless
5.Simple,reliable lubrication
6.Security:speed detection,vibration protection,motor thermal overload protection,zero differential speed spiral
7.High viscosity materials:hydraulic

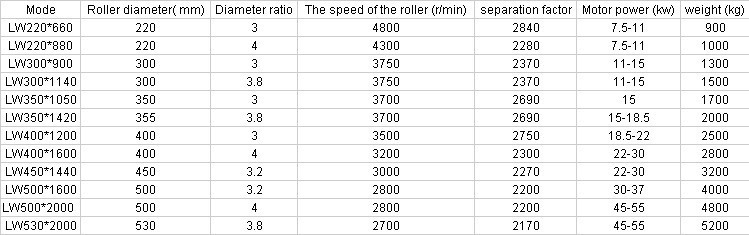

Technical parameter:
We provide reliable and fast package and various transportation to ensure you get the products timely and safely.
Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.
Since 2006, Zhengzhou Toper has been supplying products and services to 200 more enterprises over 30 more countries and areas.
Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand;
West Asia: Turkey, Uzbekistan and Tajikistan;
Northeast Asia: South Korea, Mongolia;
Middle East: Israeli, Palestinian, Oman, Bahrain, Iran;
Europe: Russia, Italy, Spain, Ukraine, Finland, Poland, Romania;
North America: Canada, America;
South America: Mexico, Guatemala, Argentina, Brazil, Chile, Peru, Bolivia;
Africa: South Africa, Algeria and so on.

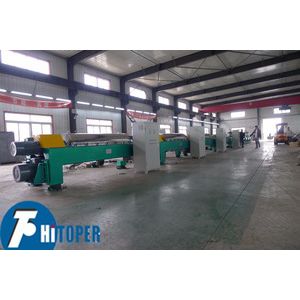

Factory pictures:
Clients Visit

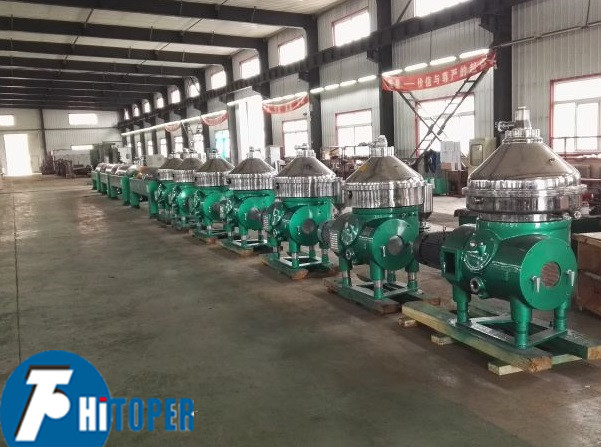

Disc centrifuge
PD centrifuge
SD centrifuge
LW decanter centrifuge
GQ and GF series
