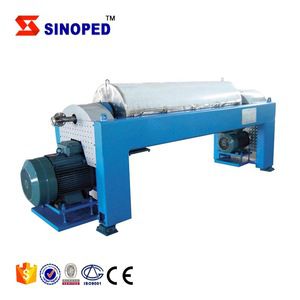

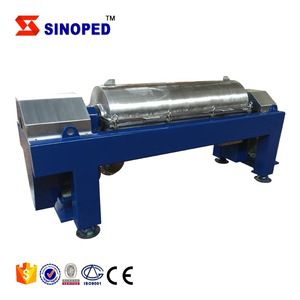

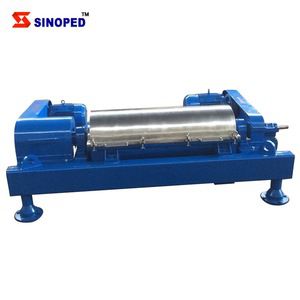

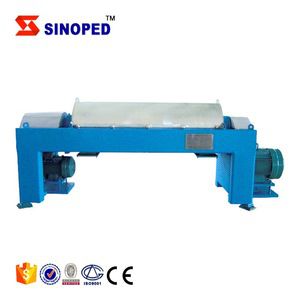

Toper No.1 hot sale china decanter centrifuge

1 Southwest Petroleum University Technology Support
2 High Speed up to 3200RPM & Variable Speed by frequency converter
3 The main body of the decanter centrifuge made from stainless stee: SS304/SS316/Titanium Alloy

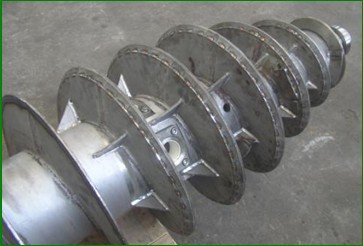

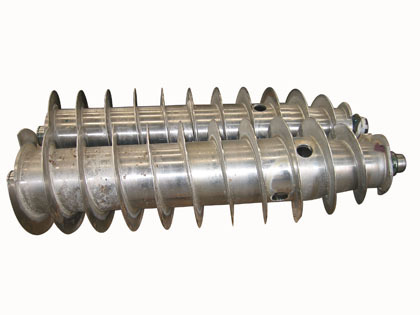

4 The screw propeller made from stainless steel (SS304/SS316) protected by Tungsten carbide alloy or Ceramic
5 Solids discharge stainless steel protected by high-chromium iron
6 Solids Liquid separation system package available
7 Germany FAG/SKF brand bearings

8 Eletrical Components: SIEMENS/Schneider/ABB

 1. Oil &gas drilling mud/fluid control

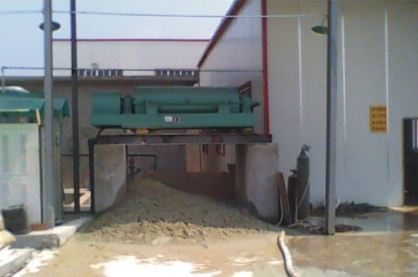

 2. Industrial and municipal wastewater treatment

 3. Fine Chemical slurry

 4. Coal and minerals (float wash of extractive coal and dewatering of coal mud)

 5. Pharmaceutical industry (antibiotic)

 6. Food processing

-Olive oil, palm oil, avocado oil;

-Wine, fruit juice;

-Starch; Surimi ;

-Soybean and wheat protein

The decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity.
er, the collecting cover, and frame hood . The feed and liquid discharge system , including the paring disc pump for the heavy phase, also rests on this structure. All parts in contact with the process liquid are made of stainless steel. The bowl is of the solid-ejecting disc type with hydraulic operating system.

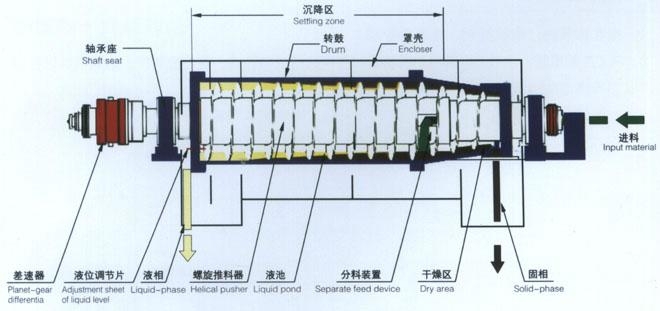

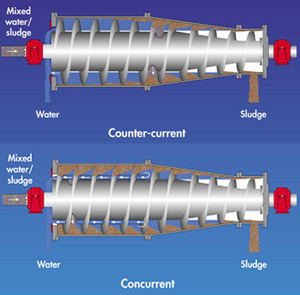

Separation takes place in a horizontal cylindrical bowl equipped with a scroll conveyor. The processing material is fed into the bowl through a stationery inlet tube and is smoothly accelerated in the accelerate chamber. Centrifugal forces cause instant sedimentation of the solids on the wall of the bowl. The conveyor rotates in the same direction as the bowl, but at a different speed, thus moving the solids towards the conical end of the bowl.

• All parts coming into contact with the product are made of stainless steel.
• 3-phase AC motor for controlled torque starting via frequency converter
• Approximately 80 to 90 % of the oil is recovered.
• Low personnel costs due to continuous and automatic operation.
• Highest g-force for higher solids output
• Adjustable bowl speed via VFD
• Automatic adjustment of differential speed via VFD
• Two motor drive
• Belts for both primary motor and secondary motor
