Full automatic filter press and semi-automatic filter press

Filter press equipment is a simple machine which separates the solid contained in a watery mixture from the water, in order to recover the water itself and reuse it in any production cycle.

Technical Feature

  • New
  • Semi-Automatic
  • High Efficiency
  • Henan, China (Mainland)
  • Unique
  • XAY15/630-30U
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~200

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Semi-Automatic
Production Capacity
High Efficiency
Place of Origin
Henan, China (Mainland)
Brand Name
Unique
Model Number
XAY15/630-30U
Voltage
Customer Requirement
Power(W)
2.2KW
Weight
1725kg
Dimension(L*W*H)
2640*900*1060mm
Certification
CE ISO
Warranty
18 Months
After-sales Service Provided
Engineers available to service machinery overseas
Name
Full automatic filter press
Filter Area
0.5-1200m2
Application
Solid and liquid separation
Color
Blue/Yellow/white/Green/as per requires
Type
Hydraulic/Semi-automatic/automatic/manual can opition
Function
Liquid Solid Separation
Material
Carbon steel, Stainless Steel 304
Filter cake thickness
30mm
Filtration pressure
0.6-2.0Mpa
Keywords
Full automatic filter press

DETAIL DESCRIPTION

Product Description

Filter press equipment is a simple machine which separates the solid contained in a watery mixture from the water, in order to recover the water itself and reuse it in any production cycle. The Filter press equipment produces also dry cakes easy to be disposed. The simplicity of the machine guarantees high-efficiency and reliability.

Simple in operation, safe and labor saving, the whole filter press system are auto controlled by the electrical panel. All devices including feed pump, hydraulic power pack, plate shifting device, valves and conveyors are guided by the logic in PLC, and make them work more efficiently.
Other special filter press automatic functions also can be added such as filter cloth washing system, filtrate collecting system, filter cloth shaking system, drip tray system etc.

The Filtration Process

How does the Filter press equipment carry out the filtration process? The feeding pump injects the slurry into the filter press from the feeding head. The chambers created by the plates are filled up with the slurry, the cloth (specifically developed for each material) and the high pressure dry the cakes, faster and better. The clean water is discharged into drainage gutters, ready to be reused, and the cakes can now be disposed of easily.

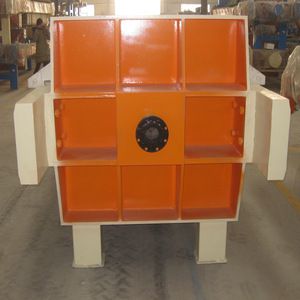

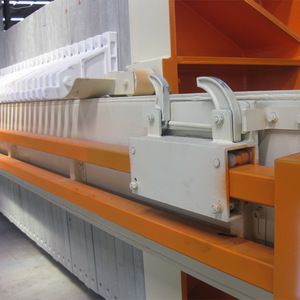

Detailed Images

Product application

These Filter press equipment are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, medicine, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.

Samples:

Technical Data

Please contact us to obtain more suitable technical data and catalog.

Features

1. It is controlled by PLC

2. The plate can be pulled automatically

3. No need workers operate it. It can achieve the full automation.

4. The rack has the function of hydraulic press, automatic control and automatic keeping the pressure. We just need control the button of the electronic control cabinet. It will start all of the operation or achieve the centralized control.

5. Filter press equipment equipped with the safety devices to ensure safe operation.

Packaging & Shipping

Standard exporting wooden package

Our Services

Pre-sale service:
1.Your inquiry will be replied within 6 hours.
2.Help you to select suitable model
3.Design totally according to your requirements
After-sale service:
1.Provide 12 months warranty period and you will have our technology support forever
2.Engineering available to offer the service to your machinery overseas

Clients visit

Company Information

Zhengzhou Unique Industrial Equipment Co., Ltd. dedicated to producing filter press equipments for many years, is not only a professional manufacturer of filter press equipment in the R&D manufacture, but also a leader manufacturer of filter press equipment and distribution of Machinery in China. Our brand is recognized worldwide for our high quality, reliability and our customer service. Company is opening, Whenever people in China and abroad are able to visit.

Related products

FAQ

Q1.Can I visit your factory?

Yes, Many domestic and international customers visit our factory every year



Q2.Do you supply spare parts and after-sale service?

Yes, we supply and we have a professional after-sale service team to promptly and thoroughly solve your problems.



Q3.Do you provide us the detailed drawing?

Yes. Our experienced engineers are specialized in designing process flow for various requirement.



Q4.Can you test our samples?

Yes. You can send your samples to us for test and analysis.



Q5: How about the delivery time?
Normally 10-20 working days after prepayment, and we promise we will make the delivery as soon as we can.

---------------------------------------------------------------------------------------------------

Contact us with questions regarding filtration equipment or how to further optimize filter press operation. Our experts are always happy to assist you.
