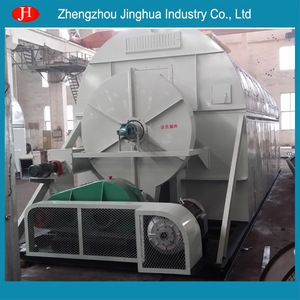

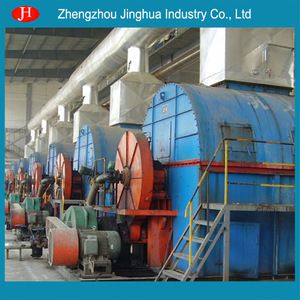

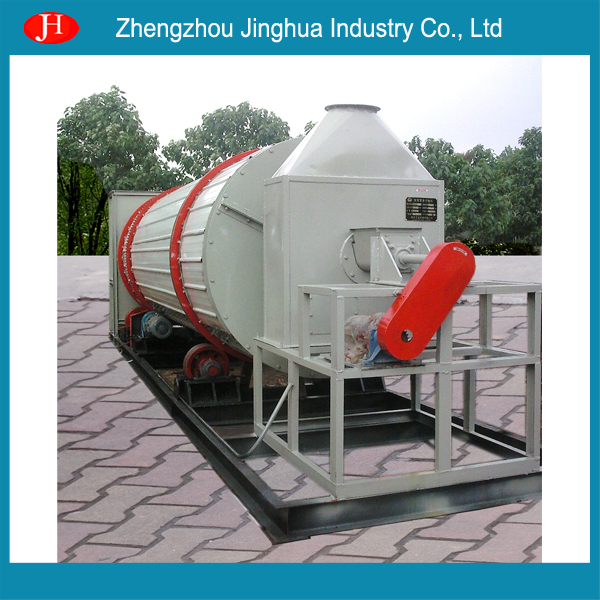

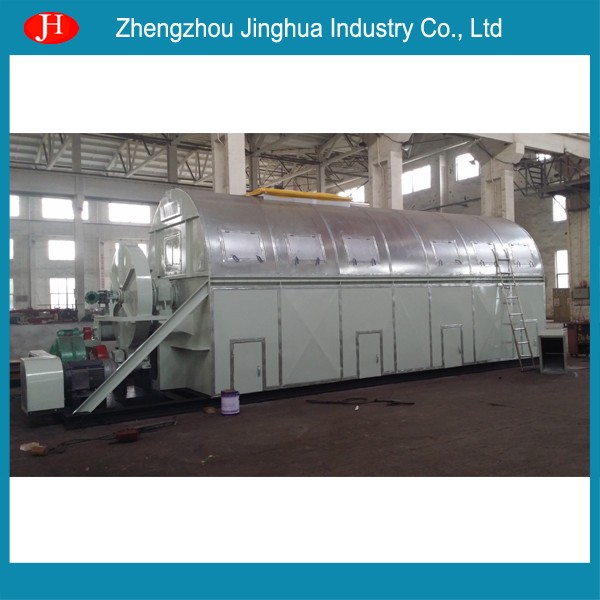

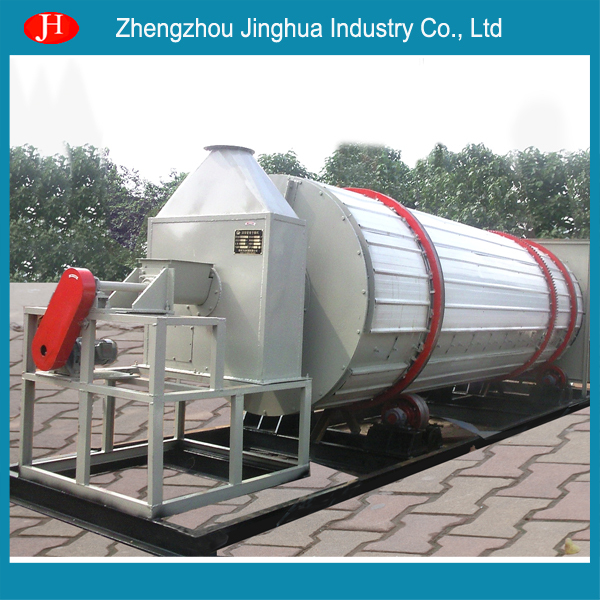

Maize Starch Line Germ Fiber Gluten Drying Machine Tube Bundle Dryer
Pipe bundled tube dryer is an indirect heating dryer. It may operate either on countercurrent or down current principals. It can be widely applied for drying loose material in chemical, light, foodstuff and animal feed industries.
This machines has merits of low heat consumption, broad shere of material drying, big production quantity and water evaporation. What is more, it can operate continuously, with no pollution, low noise and clean environment.
Packaging:
Standard Exporting Packaging
Fumigated Wooden Case
Reinfoced Loading Method
Shipping:
Sea Shipment, Container shipment;
Delivery within 20 days
Zhengzhou Jinghua indusrty Co,. Ltd. is a professional starch engineering corporation. ZZJH combines scientific research, indusrty and trade as a whole. Meanwhile, ZZJH pays closely attention to the new trend, new technology of globe starch industry, cooperates and exchanges actively with advanced starch companies in the world. All these make ZZJH have a firm foudation for its long term development and create the first class technology, excellent products and good service to customers.
Main specifications and technical parameters:
Materials | Germ | Corn fiber | Corn protein |
Inlet water content | 55% | 60% | 45% |
Outlet water content | 3~5% | 10~12% | 12~13% |
Drying intensity (evaporation kg water/ m2) | 2.5~3 | 4.8 | 4.7 |
Model | Drying area (m2) | Dimension L×W×H (mm) | Drain valve (kg/h) | Main motor (kw) | Weight (t) |
GZG 60 | 60 | 8103×1612×2164 | 1800 | 5.5 | 9 |
GZG 100 | 100 | 7828×1912×2464 | 3000 | 7.5 | 13.5 |
GZG 150 | 150 | 7137×2212×2754 | 3300 | 11 | 17.5 |
210 | 9137×2212×2754 | 5100 | 11 | 21.5 | |
GZG 300 | 300 | 8827×2462×3180 | 8000 | 18.5 | 26.5 |
350 | 9030×2462×3180 | 8500 | 22 | 32.5 | |
GZG 400 | 400 | 9580×2912×4005 | 9000 | 30 | 45 |
500 | 10980×2912×4005 | 10000 | 37 | 50 | |
GZG 600 | 600 | 11190×3212×4321 | 12000 | 55 | 60 |
GZG750 | 750 | 10129×3662×4771 | 15000 | 90 | 75.5 |
815 | 10629×3662×4771 | 16500 | 90 | 79 | |
945 | 11629×3662×4771 | 19000 | 90 | 85 |
