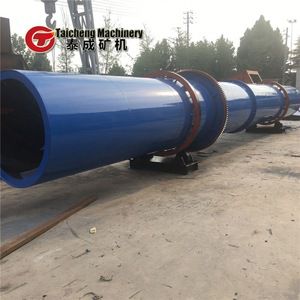

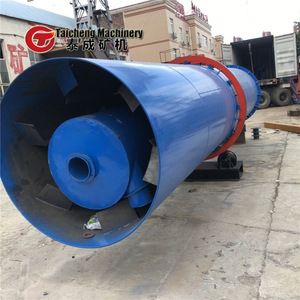

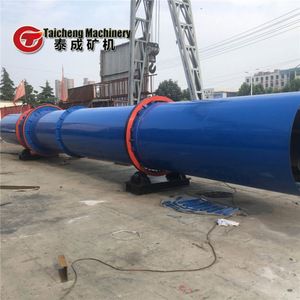

8t/h Bundle dryer export to Spain
Bundle dryer Introduction
Taicheng company can provide a rotary drum dryer for just about any industrial drying application. . We have been installing dryers for many years and have the knowledge and experience required to provide a cost effective drying solution that not only works but works well.
Bundle dryer Application
The Bundle dryer is widely used for drying the Ore,Gypsum,Vinasse,chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. you can use coal, gas, electricity, oil and wind power to heat the dryer machine.

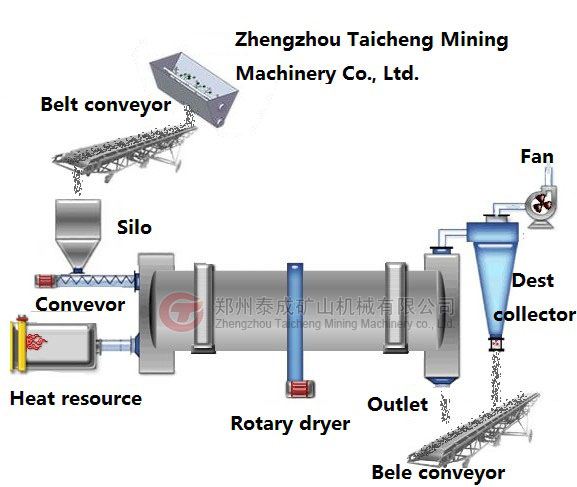

Bundle dryer Working Principle
The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.
Bundle dryer Structure

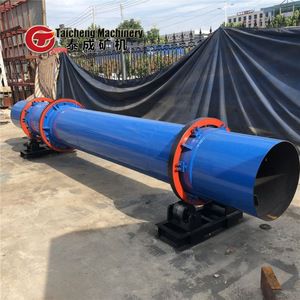

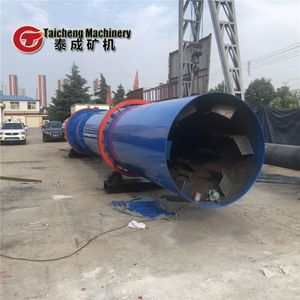

The Bundle dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Bundle dryer charcteristics :
1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers ,we have arranged the second granulation zone reasonably so as to improve the granulation effect .

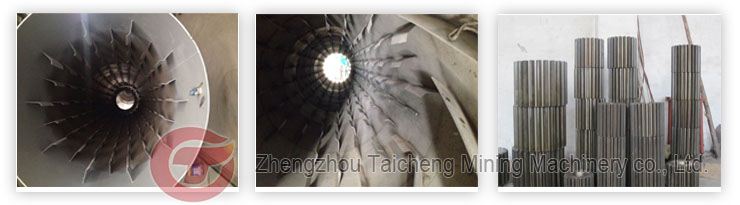

3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption .
4. Temperature induction monitor ,uniform vibration and airproof setting , which improve performance and productivity efficiently .
5. The assorted combustion furnace is a type of energy efficient and has the characteristics of smaller area , easy regulation and equipped with greenhouse
Bundle dryer Technical Parameter:
Specifications(mm) | Tilt(%) | Rotate speed(r/min) | The max. intake air temperature(°C) | Power(kw) | Capacity(t/h) | Weight(kg) |
600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
Any change of technical data shall not be advised additionally.

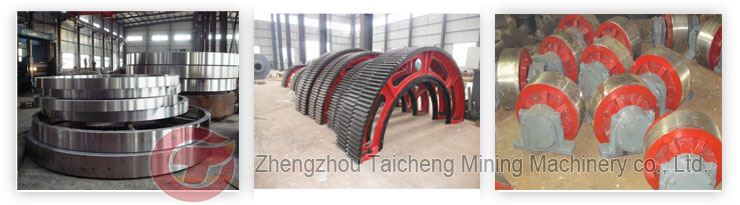

Bundle dryer Wearing Parts:
The big gear ring, the small gear ring, aperture, roller ...
1.what is the raw material?
2.what is the moisture before drying and after drying?
3.what is the capacity per hour?
4.Heat source? (firewood,coal ,heat gas ,electricity)
5.Where the final dry material used for ?

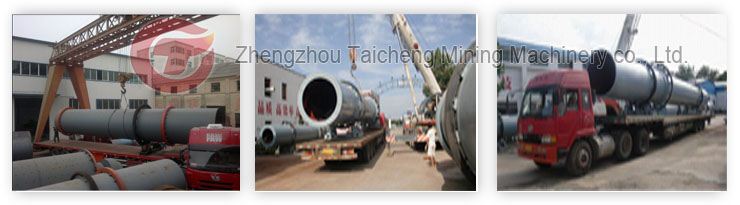

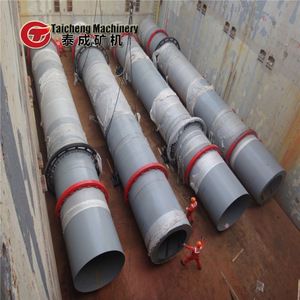

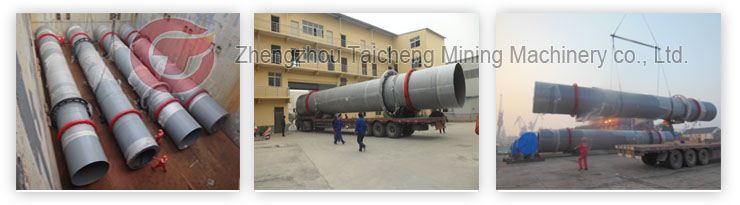

Packaging:Standard export containers. Bare main machine, motors and small parts are packed in wooden cases. We can also pack them according to your requirement.
Whatsapp:+8613783554319
Service and Solutions Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.

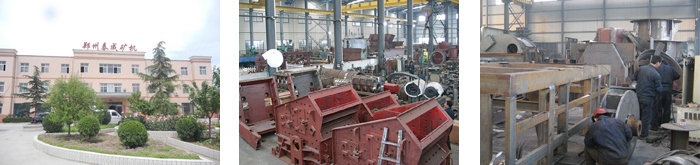

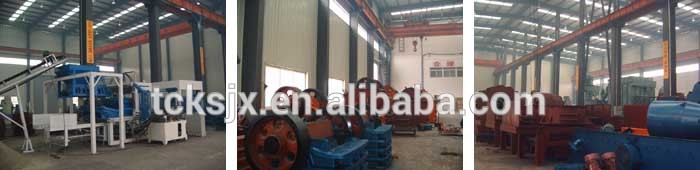

Zhengzhou Taicheng Mining Machinery Co., Ltd. is a large-scale joint-stock enterprise, focas on the production of heavy mining machinery, integrated with scientific research, production and sales. The company is located in zhengzhou national hi-tech industrial development zone, covers an area of 50,000 square meters, with 15,000 square meters two standardized heavy industrial plant, more than 160 sets all kinds of large and medium sized metal processing, welding, assembly equipment.
The company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base.
