Huajian Electricity-Saving 75% Tobacco Leaf Home Air Compressor With Ginger Hop Membrane Air Tube Sausage Tube Bundle Dryer
| Model No. | KFX-3 I/WDC | KFX-7II /WDC | KFX-13II /WDC | KFX-15II /WDC |
| Rated heat Capacity (kW) | 8.5 | 19 | 39 | 45 |
| Rated power (kW) | 3.9 | 6.5 | 13 | 15 |
| Rated current (A) | 13.5 | 12.4 | 24.7 | 28 |
| Maximum power (kW) | 6.6 | 9 | 18 | 20 |
| Maximum current (A) | 39 | 17 | 34.2 | 37.6 |
| Rated temperature (C) | 75 | 75 | 75 | 75 |
| Maximum temperature (°C) | 85 | 85 | 85 | 85 |
| Power supply (V/Hz) | 220V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Shock proof grade | I Category | I Category | I Category | I Category |
| Protection grade | IPX4 | IPX4 | IPX4 | IPX4 |
| Host quality (kg) | 150 | 200 | 300 | 350 |
| Host size (M) | - | 1.1*0.9*1.2 | 1.7*0.7*1.5 | 1.7*0.7*1.5 |
| Circulating air Volume(m3/h) | 5000-6000 | 6000 | 12000 | 15000 |
| Ambient temperature(°C) | -5-40 | -5-40 | -5-40 | -5-40 |
| Noise dB (A) | ≤68 | ≤70 | ≤70 | ≤70 |
| Drying Chamber Size(M) | 2.38*1.98*1.15 | 5.4*2.25*3.1 | 6.4*3*3.1 | 6.4*3*3.1 |
| Chamber Material | high density polystyrene or polyurethane color steel insulation board for choice | |||
| Total Trolley (pcs) 1(L)*0.8(W)*2.1(H)M*16Layer | 0 | 6 | 12 | 12 |
Total Tray(pcs) 1(L)*0.8(W) | 30 | 96 | 192 | 192 |
| Drying Area(M2) | 24 | 76.8 | 153.6 | 153.6 |
| Tray Materials | hot galvanized,201 Stainless steel,304 stainless steel for choice | |||
| Dry Capacity per Batch for reference(example) | ||||
Fresh rose flower REF Density:3kg/tray 0.8M2/tray | 72KG | 288KG | 576KG | 576KG |
Mushroom REF Density:3kg/tray 0.8M2/tray | 150KG | 480KG | 960KG | 960KG |
Hot Pepper/Red Chilli REF Density:3kg/tray 0.8M2/tray | 180KG | 576KG | 1152KG | 1152KG |
Walnut REF Density:3kg/tray 0.8M2/tray | 450KG | 1440KG | 2880KG | 2880KG |
| Remark | The above REF density is for reference.You can increase and decrease weight per tray as your actual situation |

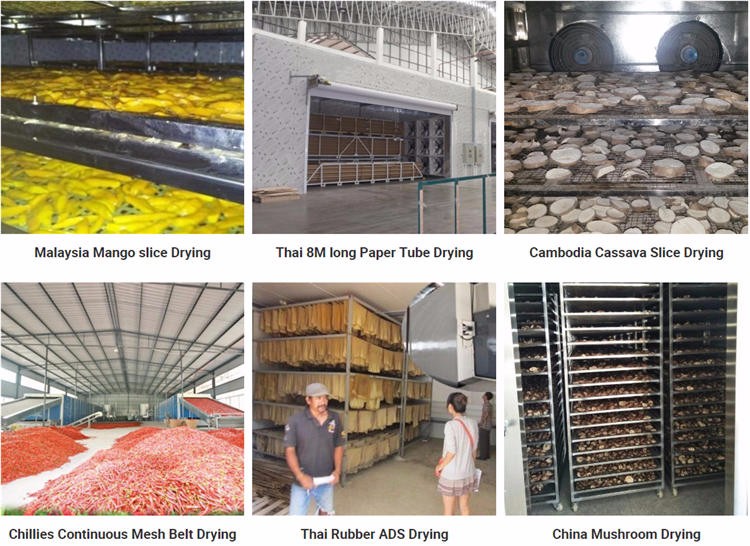

Successful Cases
 | Edible FungusMushrooms, Straw mushroom, Mushroom Chinese, Agrocybe Cylindracea,matsutake, Hericium erinaceus, agaric,fungus, white fungus,etc Fruits & Vegetables |
Herbal Medicines & SpiceHoneysuckle,Medlar, white chrysanthemum, wild chrysanthemum, yellow chrysanthemum,Gongju, yam, Pueraria tablets, blood ginseng, Radix, Radix Pseudostellariae, ginseng, American Ginsen,Maca, etc. |  |
 | Seafoood & Aquatic productsdried shrimp, dried fish, dried scallops, sea horses, jellyfish, scallops, abalone, squid, hairtail, carp, crucian carp, yellow croaker, anchovy, cod, sardines, kelp, seaweed, spirulina,etc Preserved Products |
Wood & Paper productsPear, beech, rosewood, camphor wood, basswood, walnut, neem, Pistacia, maple, camphor, particle board, Fibreboard, plywood, gypsum board,etc. |  |
Suizhou Huajian Drying Equipment Company is the overall solution provider for drying equipments.As a modern high-tech enterprise integrating drying equipment research and development, design, manufacturing and sales,we can give solution as clients` real requirements.
With its superb technology and professionalism in the field of air source drying, our sales network spread all over the country.Our productts have received a lot of praise from users, the company quickly became famous in the industry.
While fully absorbing the introduction of advanced technology at home and abroad, we have successfully developed many models of air-source all-in-one dryers, split and coupling machines by our own excellent R & D team,obtains many self-developed Patent certificates, meet the needs of users of different materials, different regions, different climates.
Contact US
Q: How to order?
A: After you decide to purchase, we will send you Proforma invoice with our bank information,bring this PI to the bank, and ask to make T/T for the deposit. If you still don't understand, please do not hesitate to ask me.
Q: How long is your delivery time?
A: For single set, your machine can be ready within 15 days after getting the deposit, we will send to the destination port you need.
Q: How to be the Distributor of Huajian Air Source Heat Pump?
A: We are looking for more distributors in every country of the world.Agency brand or OEM serivce under client's brand are both acceptable.
Q: Why you choose us?
A:As manufacturer, our products have excellent quality and competitive price.
Good after-sales services and 12 months warranty are visible.
Strictly testing and checking before shipping.
Many years' experience in manufacturing and exporting experience.
Doing OEM for many famous brand.
 |  |  |  |
