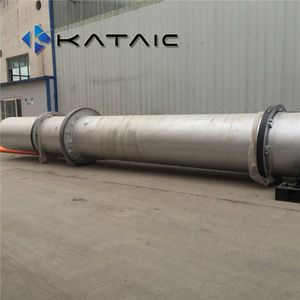

1t/h rotary tube bundle dryer For exporting
Rotary tube bundle dryer Introduction
Kataic company have produced rotary dryer for 10 years.The dryer used in many area.With best quality and good feedback
Rotary dryer is widely used for drying materials in the industries of cement, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature (generally 100-700°C)
Rotary tube bundle dryer Application
Mineral industry: Bentonite, Titanium concentrate, coal, manganese ore, pyrite, limestone, peat
Chemical industry: ammonium sulfate, sodium sulphide, ammophos, ammonium nitrate, carbamide, oxalic acid, potassium dichromate, PVC, nitrophosphate fertilizer, calcium magnesium phosphate, compound fertilizer
Food industry: Glucose, salt, granulated sugar, vitamin malted milk, granular sugar
Others: Iron powder, flat soybean, garbage abrasive, match sticks, wood chips, vinasse
Rotary tube bundle dryer Working Principle
Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
Rotary tube bundle dryer charcteristics :
1.Large production capability, continuous operation.
2.Simple structure, convenient operation.
3.Low malfunction, low maintenance cost.
4. Wide scope of application. It can be used for drying granular materials, especially benefit for those materials with big adhesion.
5.Great operating flexibility. The production allows a larger fluctuation range in the output of products, but not influence the quality of product.
6. Can achieve intelligent control, one-button operation, automatic adjustment of operating parameters, the dryer is always in the best condition to run, to ensure that the drying of the material moisture uniform and stable, bright colors, nutrients remain unchanged.
7.Built-in mixing blade device will be fully stirred and broken material, material and hot temperament heat exchange fully, the equipment unit capacity increased by 50% , fuel energy consumption reduced by 30% ;
8.Equipment with less malfunction, low maintenance costs, low energy consumption;
9. Drying products are powder, water evenly, bright color, drying process does not lose the material nutrients;
10.Adopts a unique sealed insulation device, effectively reducing the heat loss of the drying system;
11.The system sealing performance is good, and with a complete dust removal device, no dust spill, the operating environment is good;
12.The entire drying system using electrical centralized control, hot air temperature with automatic adjustment, a high degree of automation, easy to operate;
Rotary tube bundle dryer Technical Parameter:
Specifications(mm) | Tilt(%) | Rotate speed(r/min) | The . intake air temperature(°C) | Power(kw) | Capacity(t/h) | Weight(kg) |
600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
Any change of technical data shall not be advised additionally.
Service and Solutions Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Zhengzhou Kataici Co., Ltd. is a large-scale joint-stock enterprise, focas on the production of heavy mining machinery, integrated with scientific research, production and sales. The company is located in zhengzhou national hi-tech industrial development zone, covers an area of 50,000 square meters, with 15,000 square meters two standardized heavy industrial plant, more than 160 sets all kinds of large and medium sized metal processing, welding, assembly equipment.
