Multi-layer hot air belt drying machine
It is a kind of batch, continuous production.The main heating mode could choose electric heating , steam heating,gas heating and coal heating.
Its main principle is to put the material evenly spread in net, net belt with 12-60 steel mesh belt, reciprocate by dragging gear in dryer, hot air between the material flows and water vapor from moisture discharge hole, so as to achieve the purpose of drying.
The dryer can be made into multi-layer type, there are one to seven layers , length : 5-40 m.
Advantages
1.8 years manufacture experience.
2.With automatic control system and computer control system to choose.
3.With electric heating, calculated on type 15 kw, practical 5-8kw / h.
4.Most hot air is circled inside the oven, high heat efficiency, save energy.
5. Equipped with forced ventilation and adjustable air distribution plates.
6.Adjustable air distributing device, uniform air volume, wind speed, ensure material dry quickly and evenly.
7.Low machine noise, balance running process, automatic temperature control system, Keeping the temperature constant in setting value ,if more than limit temperature the alarm will ring,easy installation and maintenance.
Machine details :

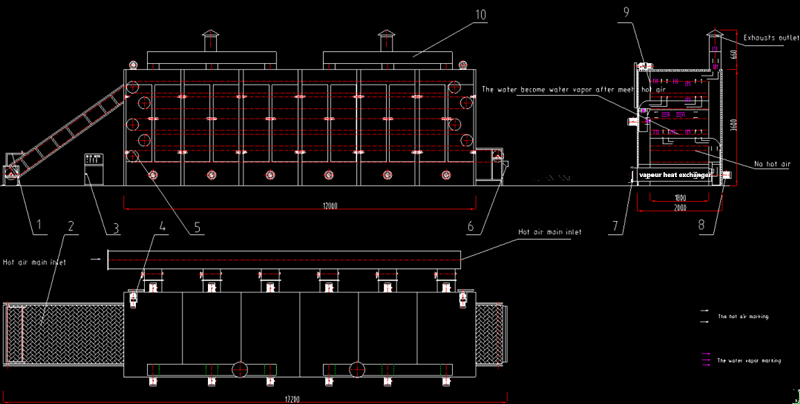

DRYER DRAWING
Application area :
The usage of our Multi-layer hot air belt drying machine :
Widely used in metallurgy, building materials, ceramics, organic fertilizer, chemical and other industries, and the ideal equipment for food and vegetables drying processing.Multilayer belt type hot air dryer is used of steel net work as a transport carrier material for continuous drying equipment, the most suitable for flow operation.Due to the conveyor is a mesh, so drying rules or irregular various substance is the most appropriate.This machine not only can be used with other equipment,but also used alone.
Technical Parameters :
| Model | Dimension | Layers | Heating temperature |
| GRT-DW-11.5*2-3 | 11500*2000*2500mm | 3 | RT- 150℃(adjustable) |
| GRT-DW-11.5*2-5 | 11500*2000*4500mm | 5 | RT- 150℃(adjustable) |
| GRT-DW-22*2-5 | 22000*2000*4500mm | 5 | RT- 150℃(adjustable) |
| Heating source | Electric ,Steam ,Gas, Coal |

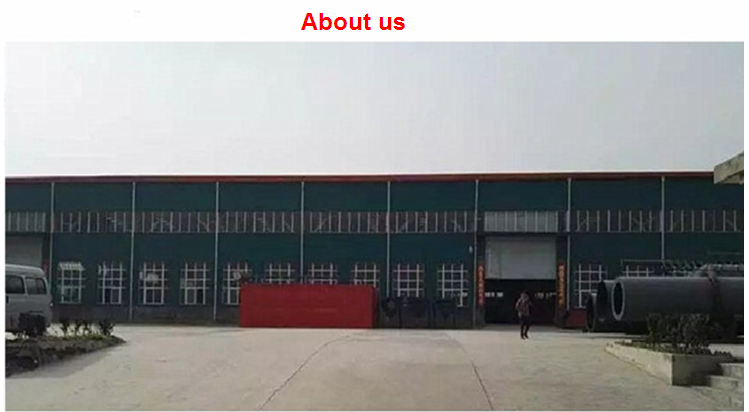

2007 sees the company growth and its business scope enlarge from drying machine to a complete production line, such as washing machine, cutting machine, and packaging machine. Company is a integration of high-tec research, production, sales and service with total investment of 5 hundred million located in High-tec development zone in Zheng zhou city. We mainly supply a whole production chain of closely related machines, including, cleaning machine, stripping machine, drying machine packing machine.
