JTM grass tube bundle rotary drum dryer
Product details
| Application | maize drying machine |
| Speed | 2.5-7.5(r/min) |
| Gradient | 5% |
| Tmperature | <=700 |
| Capacity | 0.8-12t/h |
| Material | iron and steel |
| Color | as you required |
| Price | negotiation |
| Serive | Technical support |
| Installation | offer drawing foundation |
| Product Keywords | grass tube bundle rotary drum dryer |
Features:
Rotary dryer has the advantages of large capacity, wide application ranges, small flow resistance, large operation ranges, convenient operation, etc. It is commonly used for drying sand, slag, sludge, coal slime, limestone, quartz stone, granular material, powder material, paste material, compound fertilizer, chicken manure and cow dung.

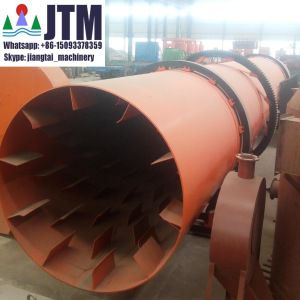

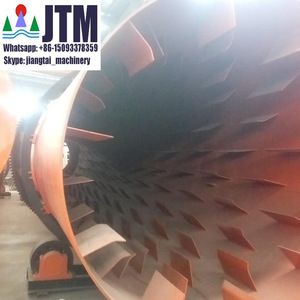

rotary drum dryer, also known as drum dryer, rotary dryer, rotary drying equipment, sand rotary dryer, coal rotary dryer, chemical rotary dryer, etc. It is widely used in building materials, metallurgy, chemicals, industrial drying slag cement limestone, coal, slag, clay and other materials. It consists of rotary body, lifting plate, gear, support equipment and seals and other components. With a resonable structure, well-made, high-yield, low energy consumption, easy operation and so on.
The Classification of Rotary Dryer:
According to the heat transfer between the drying medium and wet materials, rotary dryer can be divided into direct heat transfer rotary dryer (the direct contact and heat transfer between drying medium and wet materials) and indirect heat transfer rotary dryer (the heat required by the drying process is indirectly passed to the wet materials by the cylinder wall). Indirect heat transfer rotary dryer is rarely used due to its low transmission efficiency and complex structure.and it can be divided into single passage rotary dryer and triple passage rotary dryer according to the quantity of the shell drum.
APPLICATION of rotary drum dryer
This dryer widely used in the following industries:
-Drying large particles and heavy material for chemical, mining, metallurgy and other industries, such as mining, blast furnace slag, coal, metal powder, fertilizer, ammonium sulfate.
-Drying powder or granular materials which have special requirements, such as HP vesicant, lees residue, precipitated calcium carbonate, activated clay, magnetic powder, graphite, dregs.
-Drying the material which required low-temperature and continuous drying process.

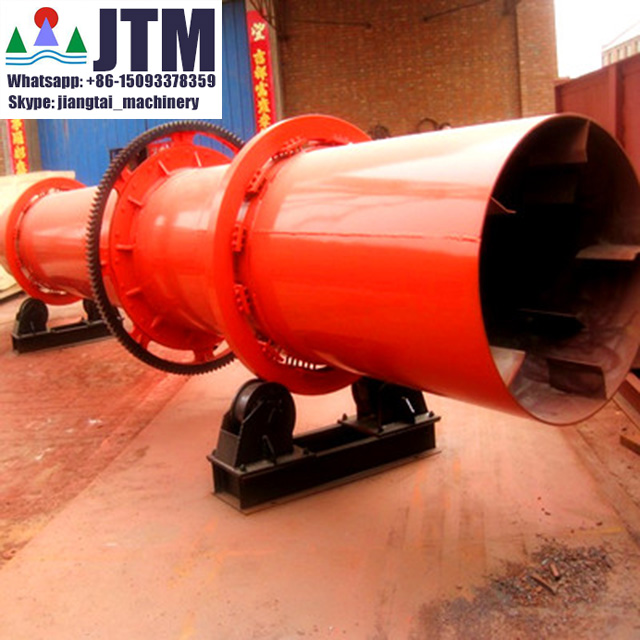

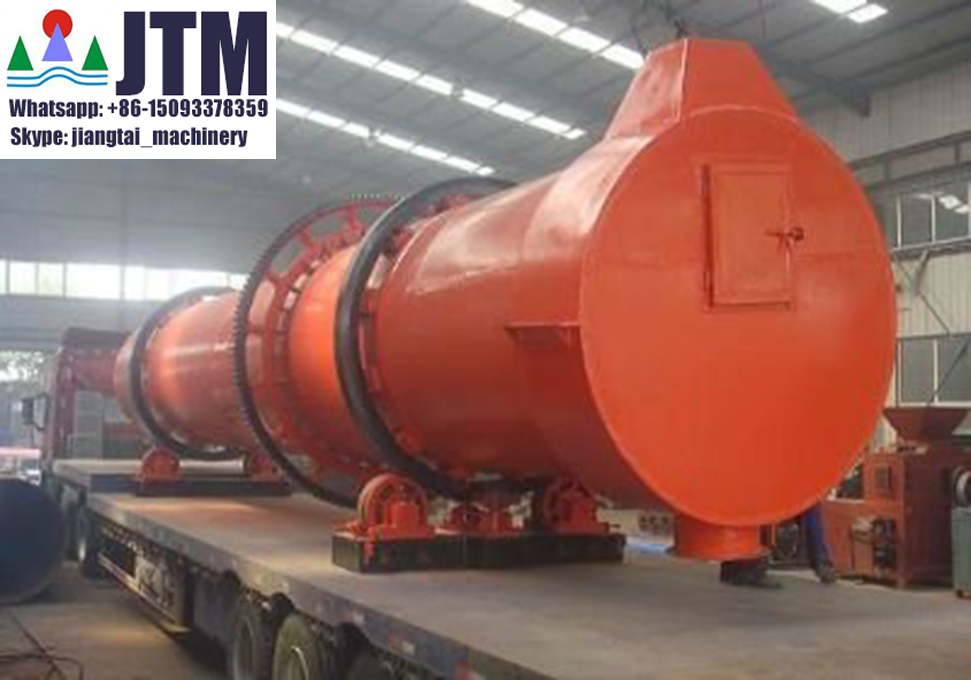

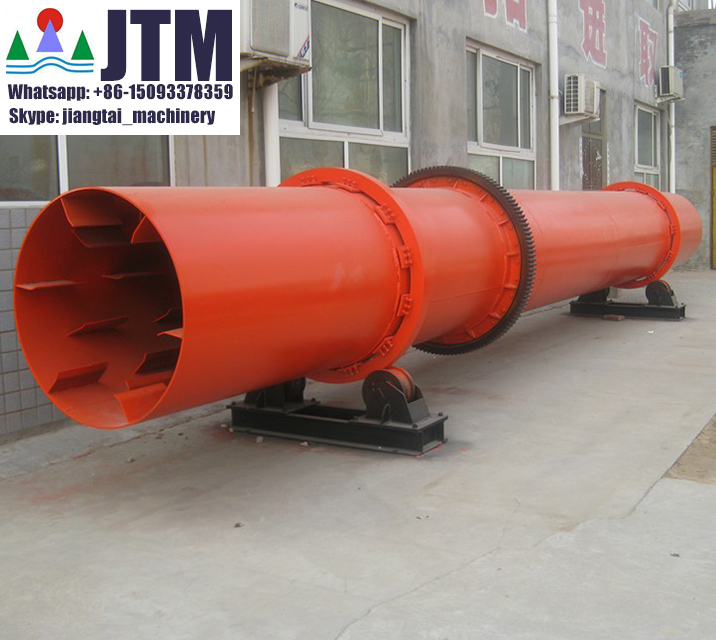

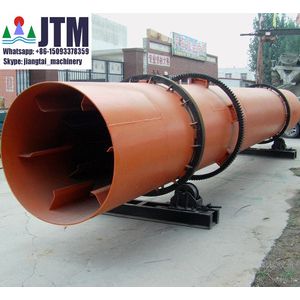

Rotary Drum Dryer also knew as a rotary drum dryer, Rotary drying machine, which is employed to reduce or minimize the moisture content of agro and forest waste, it is done by bringing it into direct contact with the heated gas. The rotary dryer is made up of a large, rotating cylindrical tube. The dryer discharge end is lower than the material feed to convey the material through the dryer under gravity.
Rotary Drum Dryer is suitable to dry raw material which contains high moisture up to 50% and more. JK make Rotary Drum Dryer is specially designed to reduce or minimize the moisture content of agro and forest waste to 10% or less for briquetting, JTM Rotary drum dryer combines the function of drying and cooling, thus save 30-50% energy.
JTM is mainly produce and installs rotary dryer plant, the capacity from 0.5t/h-120t/h. Extensive experience has been gained with a wide range of thermal processing equipment designed to meet the demands of modern day process industries worldwide. With engineering and sales offices in city center (Zhengzhou city), middle of China.
Brief introduction of rotary drum dryer/drying machine:
The rotary dryer is a type of industrial dryer used for reduce or minimize the liquid moisture content of the material it is handling by bringing it into direct contact with a heated gas.
Brief Introduction:
MGT series of energy-efficient drying drum system mainly consists of six parts that are raw material loading systems, combustion heating system, dehydration systems, environmental dust removal system, power distribution and control systems and product transportation system.
MGT series of energy-efficient drying drum system is self-developed which is with complete system that will meet the different requirements from Chinese customers and overseas.
Techincal parameters:
Drum diameter: 1.5 m -4.2 m
Drum length: 8 m -38 m
Unit processing capacity: 10t / h-300t / h
Material moisture range: 20% -40%
Index after drying: 8%-13% water content after drying
Performance features:
this drying system can process high moisture content materials such as slime, lignite, coal, flotation clean coal, mixed coal, coal power plant fuel, blast furnace slag, clay, limestone, sand, quartz stone, metal concentrates, waste, tailings, sawdust, aggregate, waste mud and other materials.The moisture content can be reduced to 8% or less which will completely solve the problem of storage and transportation to improve the efficient utilization.
Applications of rotary drum dryer/drying machine:
Rotary dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industrial and coal slime in coal mine,etc. Rotary dryer can be widely used to dry various materials, and it is simple to be operated.
Rotary Dryers have many applications but are most commonly seen in the mineral industry for drying sands, limestone, stones and soil, ores, fertilizers, wood chips, coal, iron sulphate, filter cakes, sewage sludge, etc.
Technical data of rotary drying machine/rotary drum dryer machine for coal slime, sand, NPK, Coconut shell, sawdust, quartz sand, etc.
The three drum sand dryer can be applied in drying raw materials such as yellow sand, slag, clay, quartz sand etc...It's widely used in industries such as dry mortar, cement, building materials, glass, chemicals, and casting etc.
About us
Zhengzhou Jiangtai Heavy Industrial Machinery Co., LTD
After years of efforts, now we has developed to a stronger company. Our business is already involved in mining machinery, such as jaw crusher, impact crusher, hammer crusher, vsi sand maker, cone crusher, ball mill, sand washing machine, rotary dryer, vibrating screen, ball mill, spiral classifier, rotary dryer, and so on, and also involved in cement equipment, such as rotary kiln, bag collector, vertical elevator, cement ball mill, coal ball mill, etc. welcome for you visit.

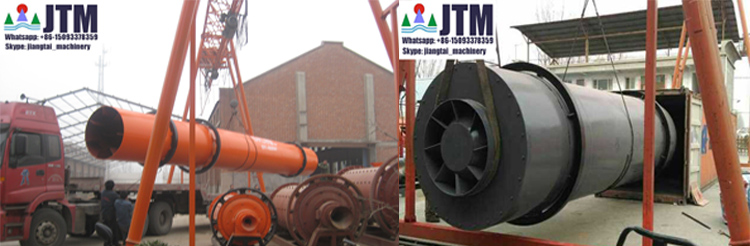

PACKAGE:
Standard export container loading.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
