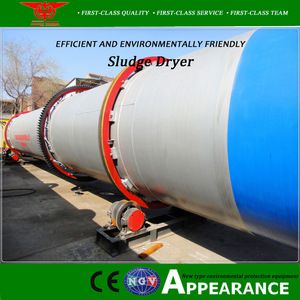

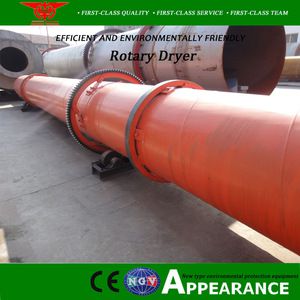

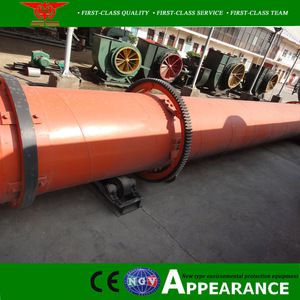

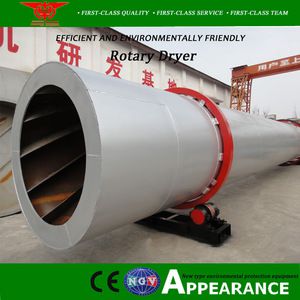

Tube bundle rotary drum dryer for drying all kinds of wet grass
Adwantages:
1. Sludge rotary dryer equipped with biofuels stove, has a high environmental protection effect.
2. The effect of drying is very good.
3. The sludge rotary dryer equipped with fireproofing, the production is very safe and health.
4. Has a high output and low cost with the reasonable design.
5. Large handling capacity, high thermal efficiency. The thermal efficiency can reach 60%.
6. Sludge rotary dryer moth-proofing, and it prevent mildew, has a long shelf life.
7. Sludge rotary dryer have a high degree of automation, and it is easy to operate, and it also can save manpower.
(Screw feeder)
( Belt conveyor )
Whith the development of the sludge drying processing technology, the agricultural sludge, sludge fuel, sludge incineration has come ture.The perfect and innovation of sludge drying technology and sludge dryers directly promoted the development of the sludge disposal methods. It also expand the range of sludge disposal means, make it in such aspects as safety, reliability, sustainability, get more reliable guarantee.
(Sludge)
The sludge rotary dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The sludge rotary dryer has a better adaptability and can dry various materials with a simple and reliable operation. The sludge rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Basic structure of the sawdust dryer:
Sludge rotary dryer mainly consists of rotary drum dryer, induced air equipment, high-speed scattered equipment, feed plate,cleaning device, conveying equipment, heat source equipment, electric motor and reducer, supporting device and sealing device, dust-removing equipment, electronic control system and other parts.
Sludge rotary cylinder locates on the active wheel which drives the cylinder rotating at low speed by motor and reduction gear. There is the inlet between the pipe of heat equipment and the cylinder of the dryer in which there are stir blades. On the connection of the cylinder and the filter cartridge there is the bezel on which opening a small hole. With one end connected with the cylinder and the other end connected with the material duct, the filter cartridge has stoppers within it and slag hole at the bottom of it. One end of the cooling tube is connected with the material duct by a blower and the other is connected with the discharge port.

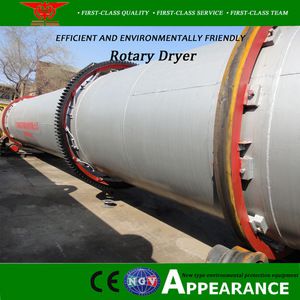

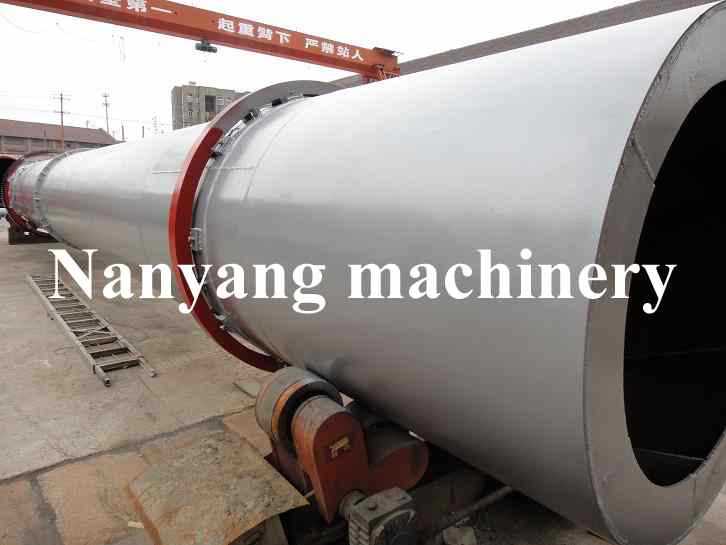

( Drying cylinder )
( The pipe )
(Coal dust furnace)
(Centrifugal fan)
Model | Processing power(t/h) | The host power (kw) | Speed(r/min) | Reducer | Weight(t) |
Φ1.8×12 m | 7-12 | 18.5 | 4.1 | JZQ 50-16 Ⅱ-2 | 22.83 |
Φ2.2×12 m | 12 | 18.5 | 3.2 | JZQ 650- Ⅲ | 37.6 |
Φ2.2×14 m | 12 | 22 | 3.2 | JZQ 650- Ⅲ | 40 |
Φ2.2×16 m | 10-13 | 30 | 3.2 | JZQ 750- Ⅲ | 45 |
Φ2.4×14 m | 10-14 | 30 | 3 | JZQ 750- Ⅲ | 51 |
Φ2.4×18 m | 25 | 37 | 3 | ZL 85-13- Ⅰ | 54 |
1). If any interest in our machine, please feel free to contact me and let me know your requirement on capacity and material size.
2). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3). Whole plant design and drawings are free after ordering.
4). Quality Commitment: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5). If you need, we will dispatch professional engineer for installation, trail and worker training.
Our company depend on experience advantages and technological innovation ideas we make research on new type and high efficiency rotary dryers, vertical dryers, multiplexing drum dryers, i ndirect dryers for high humidity and viscosity materials such as raw coal, coal slime, lignite, sludge, waste, fly ash, gypsum, manure, lees, mine slime, etc. and matching equipments such as forming machines, grinding machines, and milling machines, etc. on the basis of years of designing, Researching, developing and producing various types of dryers. Our product won the "Chinese famous brand", "Chinese famous quality products", Our Product exported to Indonesia, Russia, Syria, Vietnam, north Korea, Egypt, azerbaijan and other countries, which have received a lot of praises of our users .
(Company honor)
(The scene)
Nanyang Machinery Factory has a professional installation team, who are industrious, brave and hard learning in the aspect of innovation. So far, they have successfully completed the installation and debugging tasks for tens of thousands of large and small projects. In addition, Nanyang Machinery Factory installation team can also help our customers to train their staff until they can be independent on operating machine. We hereby promise that we will provide first-class products and first-class service to our customers.
1. Question: How long can you guarantee your products and their parts?
Answer : We promise to repair, change or withdraw our products and their parts for free within a year if their are some quality issues. After one year, wo also can provide technical and other supports during the whole life of our products whenever you need.
2. Question: How to prove the strength of your company ?
Answer : We have accumulated nearly three decades of experience in production and sales,which helps us to through a number of national certifications and occupy so many markets that not only domestic but also international.
3. Question: What's your biggest advantage?
Answer : Obviously, it is professional and dedicated.
