cassava starch drying machine /cassava starch dryer
mobile:008613676951397
skype:becoshuliy26
Description of Yeast Dryer Machine:
The host of yeast dryer machine is equipped with the drying cylinder, chassis, transmission system, scraper device, material limiting device, scraping device, the material soaking device, turbine bypass system, additionally with electrical control cabinet and exhaust hood.
This dryer equipment is a kind of indirect heat and water vaporization conduction, making use of steam heating in drying materials. The drying cylinder is a metal hollow cylinder with a processed outer surface and high surface finish, whose speed of the axial rotation is adjustable under the drive of the drive device(big and small size gear drive). After warmed up to 50 or so in the fore-warmer tank, slurry is fed in the lower part of the drying cylinder by the delivery pump, reaching a result of the drying cylinder about 60-80mm taken.
The outer surface of rotating dryer is coated with a uniform layer of slurry (ie. film thickness), The pressure of the dryer will be 0.15-0.3Mpa after passed into the steam. The slurry is heated up from the outer wall of the dryer, and vaporization of water discharged by the suction fan. The material is dried out when the dryer completes rotating one round. Finally, the sheeting material is discharged by the scraper from the dryer wall, and then can be collected at the discharge port.
Main features and Performance of Yeast Dryer Machine:
The drying cylinder which is the connecting part of the yeast dryer and materials is made of high-grade cast iron grinding, with anti-corrosion, no pollution and such other characteristics. This yeast dryer is conduction heating away without drying medium causing heat loss, and thus high thermal efficiency, low energy consumption, generallyabove 70%. It also has compact structure, small footprint, easy operation and maintenance features.
main parameter of the machine:
model | Roller size(mm) | Drying power kg·H2O/m2·h | Motor(kw) | Size(mm) |
SLZG-600 | Φ600×800 | 40-70 | 2.2 | 1700×800×1500 |
SLZG-700 | Φ700×1000 | 60-90 | 3 | 2100×1000×1800 |
SLZG-800 | Φ800×1200 | 90-130 | 4 | 2500×1100×1980 |
SLZG-1000 | Φ1000×1400 | 130-190 | 5.5 | 2700×1300×2250 |
SLZG-1200 | Φ1200×1500 | 160-250 | 7.5 | 2800×1500×2450 |
SLZG-1400 | Φ1400×1600 | 210-310 | 11 | 3150×1700×2800 |
SLZG-1600 | Φ1600×1800 | 270-400 | 11 | 3350×1900×3150 |
SLZG-1800 | Φ1800×2000 | 330-500 | 15 | 3600×2050×3500 |
SLZG-1800A | Φ1800×2500 | 420-630 | 18.5 | 4100×2050×3500 |

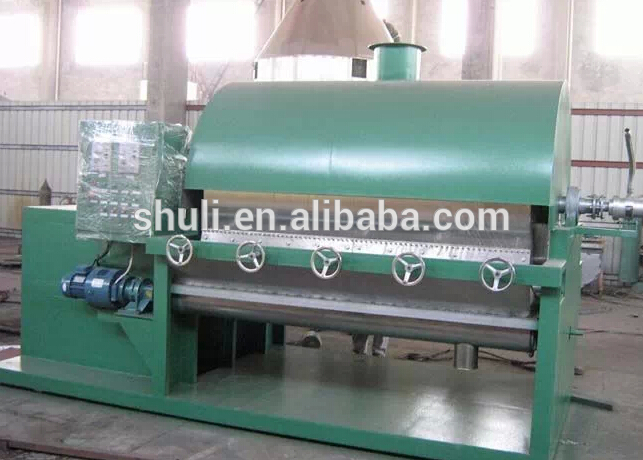

product show:
please contact me if you have any question about the machine:
