continuous and efficient coconut shell and manihot starch tumbling barrel dryer

PRIMARY PARAMETERS

Condition

New

Type

Rotary Drying Equipment

Place of Origin

Henan, China (Mainland)

Brand Name

lantian

Model Number

lantian series

Voltage

220v/380v or customization, Customized

Power(W)

18kw

Dimension(L*W*H)

Specific Model

Weight

2500kg

Certification

CE ISO

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Name

rotary dryer

Product name

continuous sawdust and sand rotary dryer

Keywords

rotary dryer

Application

Industry

Raw Material

Sand, sawdust,cassava,ect.

High temperature

800u2103

Capacity

5.7-7.1t/h

Color

Blue,white ,or as your require.

Rotation speed

3-8 r/min.

DETAIL DESCRIPTION

Product Description

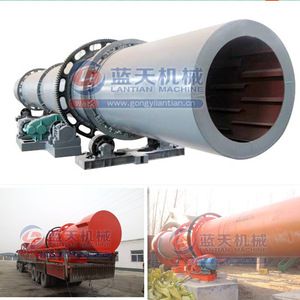

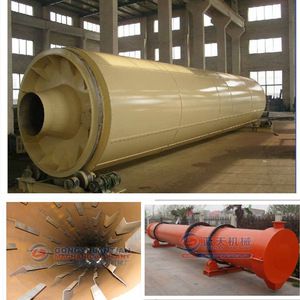

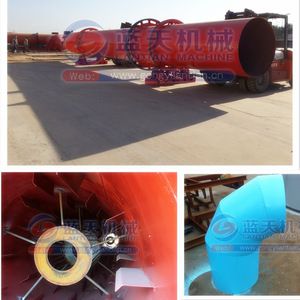

The structure features of tumbling barrel dryer:

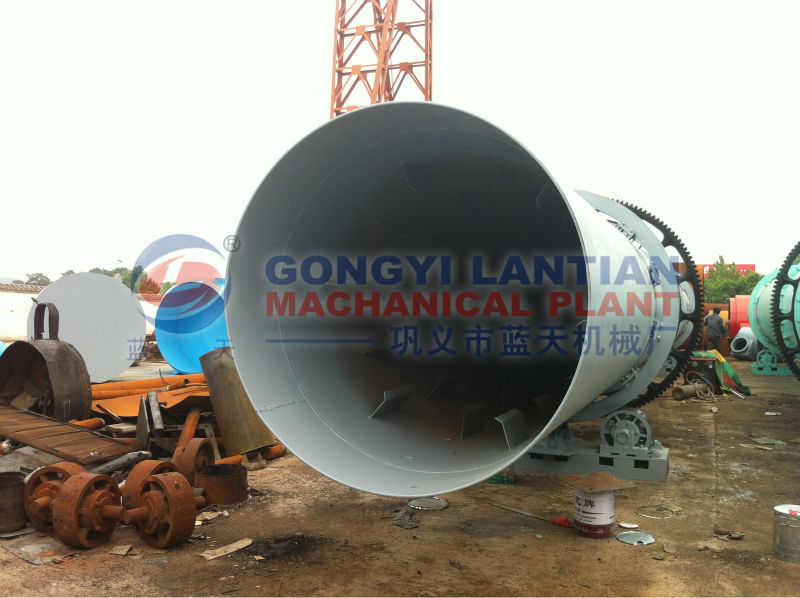

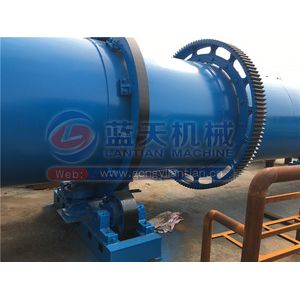

The roller dryer mainly has the rotary body, the lifting plate, the transmission device, the support device and the sealing ring and other components. With reasonable structure, well made, high output, low energy consumption, convenient operation, applicability is wide and can be dry powder, granule, article, block material, large elasticity of operation, production allowed on the product yield have larger fluctuation, without affecting the quality of the products.

Raw material for processing of tumbling barrel dryer:

Sand/mineral/filter cake drying

River sand, molding sand, mining sand Limestone, gypsum, potash, kaolin clay.

Coal drying

Lignite (brown coal, wood coal), pulverized coal, coal slime.

Animal feed

Green fodder (alfalfa) drying and pelletizing ,Corn cobs,Brewery mash drying (spent brewers grain, distillers’ grain, beer meal residue, etc..) Bean and potato dregs drying ,Tapioca (cassava) residue.

Industrial slime

Coal slime drying ,Municipal sludge drying ,Electroplating sluge drying ,Paper mill sludge drying ,Calcium carbide slime drying. Printing and dyeing and textile sludge drying ,Leather sludge drying.

Industrial solid waste

Steel mill solid waste drying .chemical industry solid waste drying .Industrial residue .Metal chips .Fruit Pomace (apple, grapes, etc.) .Beet pulp, bagasse.

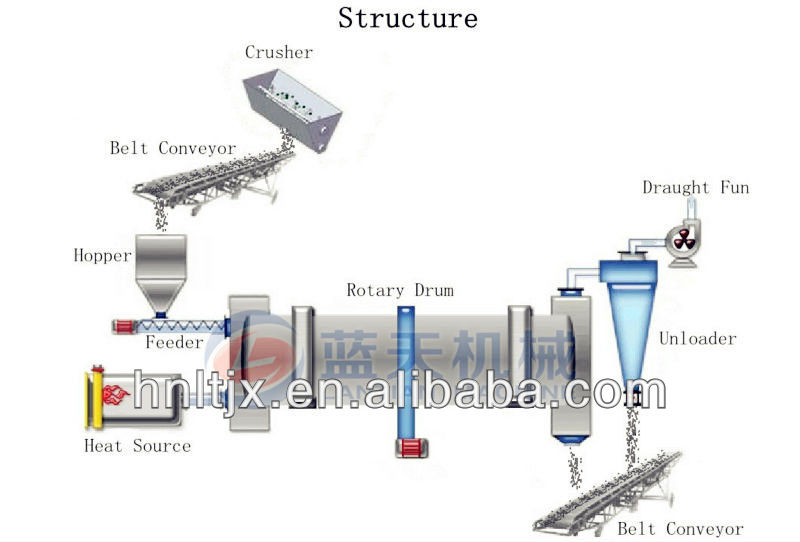

The principle of tumbling barrel dryer

Rotary dryer’s heat source is a combustion apparatus. It adopts direct flow heating with heat source from firing unit. The material to be dried is pushed back immediately by spiral board after going in the shell from feeding tank or feeding chute. Because the drier is installed in an inclined position, material flows to the back end under gravity and rotation force. At the same time, it is lifted by board repeatedly and thrown down accordingly, which makes the material form an even curtain, so that it can exchange heat sufficiently with the heat flow. At last, water in the material is dried by repeatedly scattering.

Packaging & Shipping

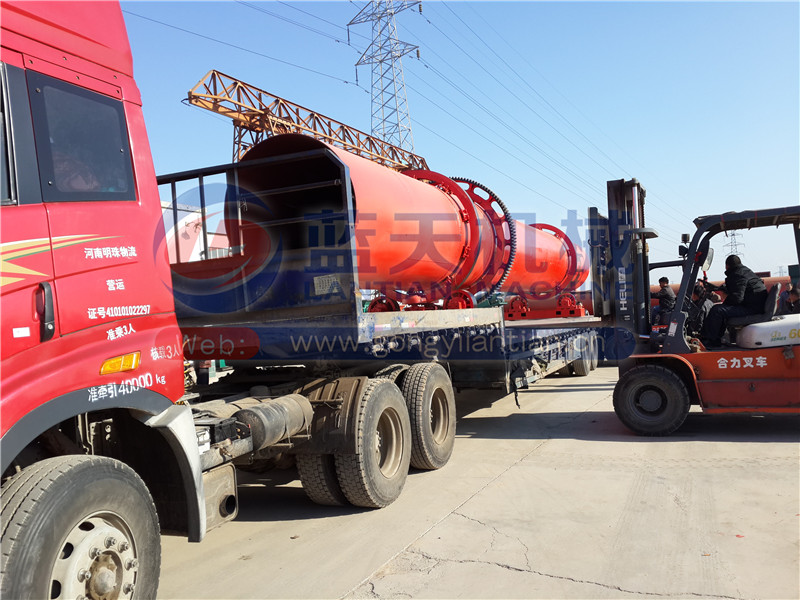

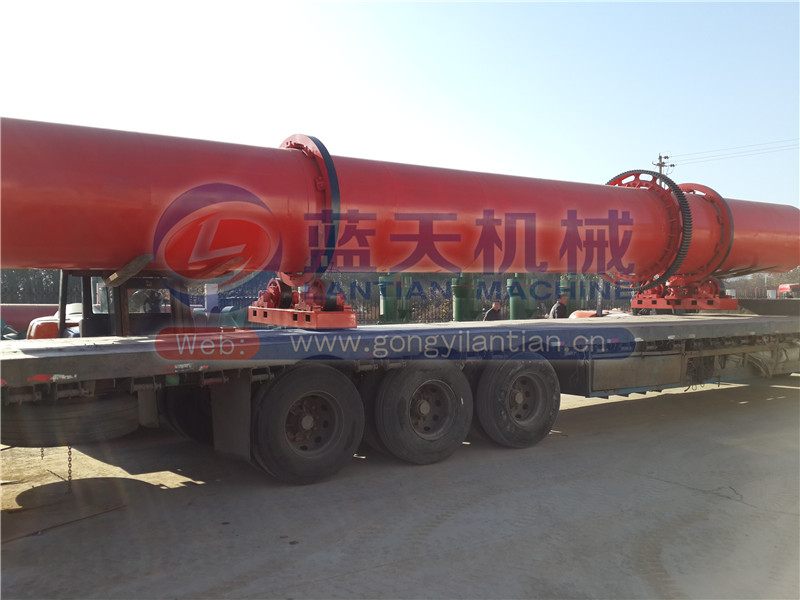

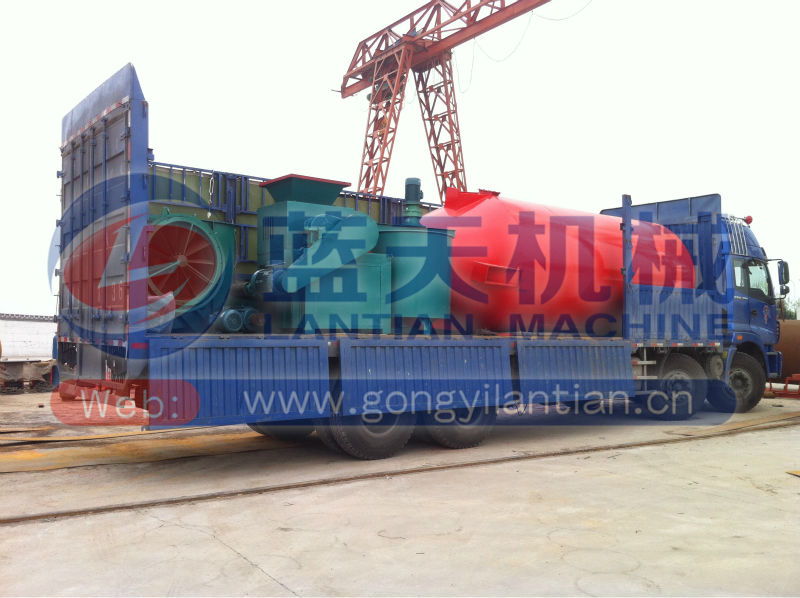

Packing and delievering of tumbling barrel dryer

1. If the equipments have been finished, it needs 5 days for us to prepare for the delivery
2. If the customer want to make some changes to the finished products, needs 10-15 days to prepare for the delivery.
3. If you want a new set of equipments, we need 20-25 days.

Delivery Time

Shipped in 15 days after paymen

Our Services

1.Presale service:design and manufacture machines for you as your special requirements,provide you with project,process design,and purchase program.

2.Onsale service: accompany with you to look around our factory,explain the manufactureprocess of our machines,and check the working performance of our machines.

3.Aftersale service:engineers are available to install and debugging equipments of the whole production line,besides,commissioning and training operators on site.
