XSG Model Cassava Starch Spin Flash Dryer

It is one of the most drought-tolerant crops, capable of growing on marginal soils.

Technical Feature

  • New
  • Flash Drying Equipment
  • Jiangsu, China (Mainland)
  • KODI
  • XSG series
  • 220v-450v
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$280~8

PRIMARY PARAMETERS

Condition
New
Type
Flash Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
KODI
Model Number
XSG series
Voltage
220v-450v
Power(W)
0.75-75
Dimension(L*W*H)
Depends on the model
Weight
Depends on the model
Certification
IS9001,CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Pruduct Name
XSG Model Cassava Starch Spin Flash Dryer
Model
2-16
Material
Stainless steel , carbon steel
Evaporated Capacity
10-2000 kg/h
Chamber diameter
200-1600 mm
Air volume
300-36000 m3/h
Control
PLC control
Occupied area
see model
Installation
KODI service
Spare parts
Supply the whole lifetime

DETAIL DESCRIPTION

KODI XSG Model Cassava Starch Spin Flash Dryer

1. Cassava Starch flash dryer / Cassava flash dryer /   Cassava flash dryer

2. Large capacity

3. Easy to operate, labor intensity is high

4. Easy to clean



Product Description

What is Cassava Starch

It is a woody shrub of the spurge family, Euphorbiaceae, native to South America. It is extensively cultivated as an annual crop in tropical and subtropical regions for its edible starchy tuberous root, a major source of carbohydrates. Though it is sometimes called yuca in Spanish, it differs from the yucca, an unrelated fruit-bearing shrub in the family Asparagaceae. Cassava, when dried to a powdery (or pearly) extract, is called tapioca; its fermented, flaky version is named garri.

Cassava is the third largest source of food carbohydrates in the tropics, after rice and maize.Cassava is a major staple food in the developing world, providing a basic diet for over half a billion people.It is one of the most drought-tolerant crops, capable of growing on marginal soils. Nigeria is the world's largest producer of cassava, while Thailand is the largest exporter of dried cassava.

Cassava is classified as either sweet or bitter. Like other roots and tubers, both bitter and sweet varieties of cassava contain antinutritional factors and toxins, with the bitter varieties containing much larger amounts.They must be properly prepared before consumption, as improper preparation of cassava can leave enough residual cyanide to cause acute cyanide intoxication,goiters, and even ataxia or partial paralysis.The more toxic varieties of cassava are a fall-back resource (a "food security crop") in times of famine in some places.Farmers often prefer the bitter varieties because they deter pests, animals, and thieves.



XSG Cassava Starch Flash Dryer Description

XSG Cassava Starch Flash Dryer is widely used for drying materials such as paste, cake shape, powder, granules material, etc. It is a new type high drying efficiency and low energy consumption equipment that researched and developed by our company.

Hot air enters the stirring part of drying chamber from the bottom, material is stirred by stirring device and then the hot air exerts strong shearing, blowing, floating and rotating effect to material. Therefore material is crushed by centrifugal, shearing, impacting and friction effect. It strengthens the heat exchanging process. In the bottom of drying chamber, big and damp granules are crushed by stirring device, the particles with low moisture content and small size are lifted by rotary air stream, and be further dried. Gas and solid two phases rotary flow, inertia of solid phase is bigger than gas phase, the relative velocity between gas phase and solid phase is high, heat exchanging efficiency is strengthened, so the drying intensity of this machine is high.



XSG Cassava Starch Flash Dryer Application

Ceramic industry: Kaolin, bentonite, clay, etc.

Foodstuff industry: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch, etc.

Organics: Atrazine, lauric acid cadmium, benzoic acid, sodium oxalate, acetyl cellulose, etc.

Dyestuff: Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates, etc.

Inorganic: Borax, calcium carbonate, hydrogen peroxide, etc.

Substance: Copper suifate, ferrix oxide, three antimony oxide, all kinds of metal salt, synthetic cryolite, etc.

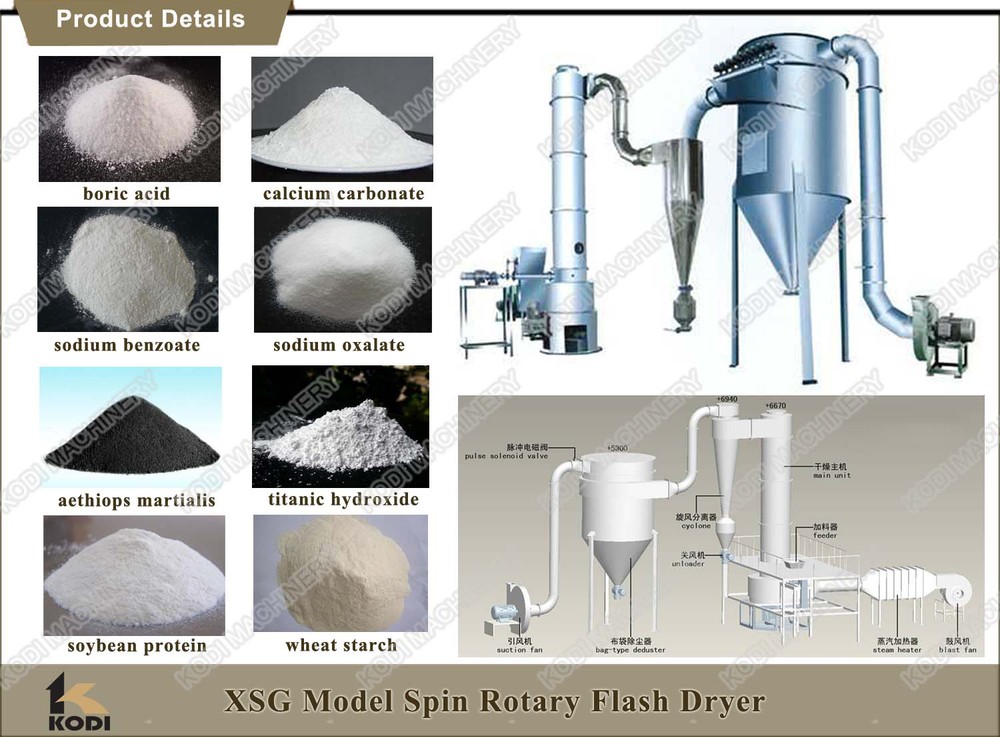

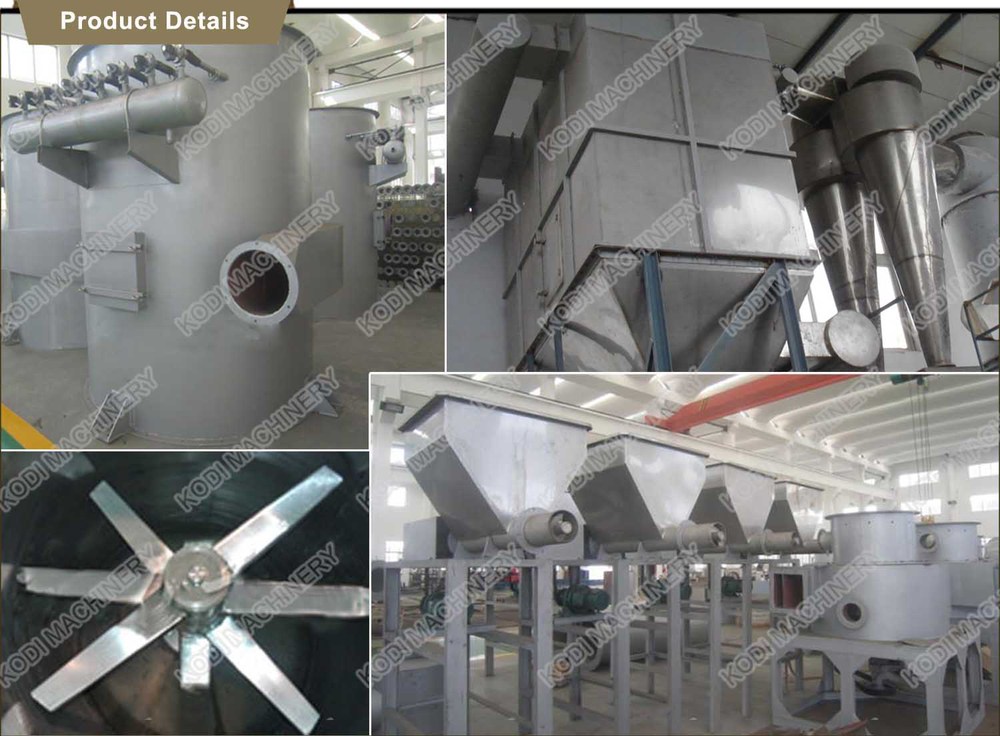

Details of XSG Cassava Starch Dryer





XSG Cassava Starch Flash Dryer Features

  1. Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon.
  2. There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area.
  3. Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.
  4. There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.
  5. There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.
  6. In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.

XSG Cassava Starch Dryer Technical parameters

Model

Diameter of chamber (mm)

Size of main machine(mm)

Power of main machine (Kw)

Air volume(m3/h)

Evaporated capacity (kg/h)

Occupied area (mm2)

XSG-2

200

250×800

0.75-2.2

300-800

10-20

3500×2500

XSG-3

300

400×300

3-4

600-1500

20-50

3800×2700

XSG-4

400

500×500

4-7.5

1250-2500

25-70

4000×3000

XSG-5

500

600×000

5.5-11

1500-4000

30-100

4200×3200

XSG-6

600

700×200

7.5-18.5

2500-5000

40-200

4250×3250

XSG-8

800

900×600

11-18.5

3000-8000

60-600

4500×3500

XSG-10

1000

1100×000

15-30

5000-12500

100-1000

4750×3750

XSG-12

1200

1300×200

15-37

10000-20000

150-1300

5000×4000

XSG-14

1400

1500×400

30-55

14000-27000

200-1600

5250×4250

XSG-16

1600

1700×1000

45-75

18700-36000

250-2000

5500×4500

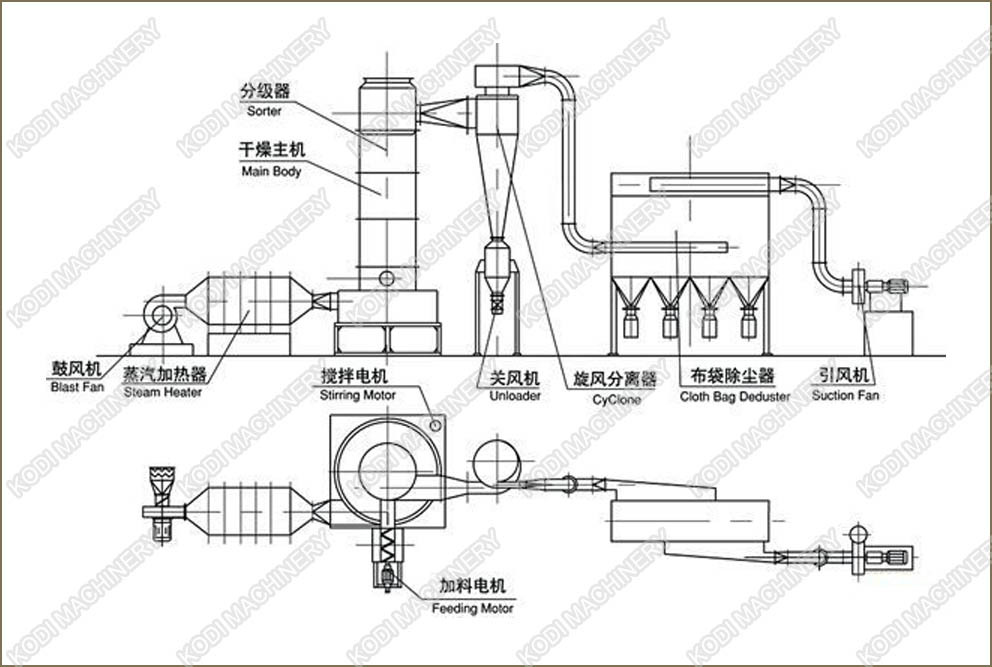

Flow Chart of XSG Cassava Starch Flash Dryer

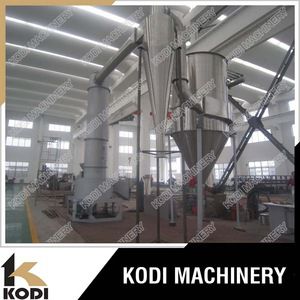

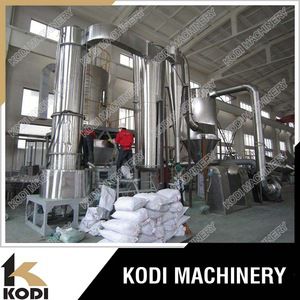

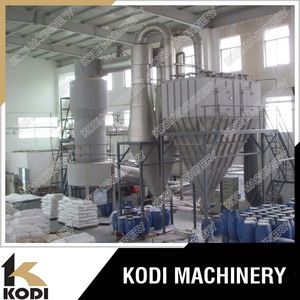

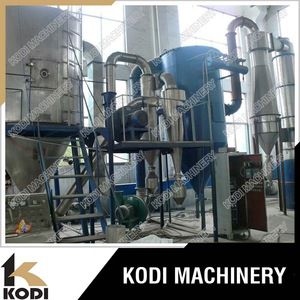

Successful Experience Overseas of KODI XSG Cassava Starch Dryer

XSG Cassava dryer has a very mature technology and process, and KODI company has rich overseas site installation experience  and good after sale service .

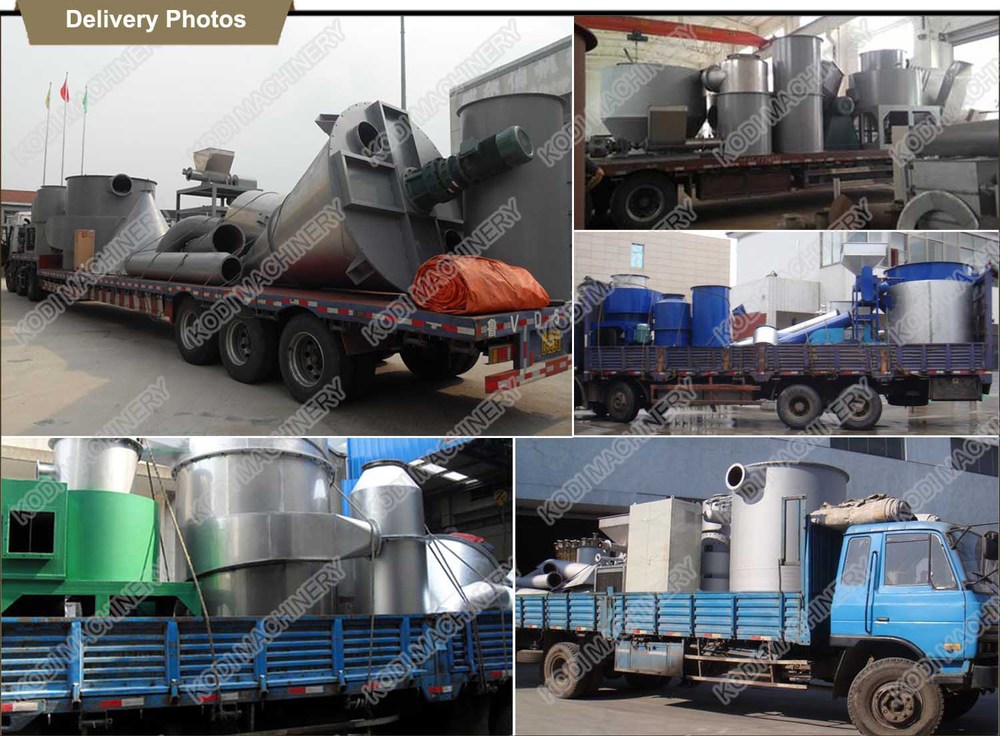

Packaging & Shipping



Company Information

Why Choose KODI

  • International high quality certification product chain

  • Manufacturer, more reasonable price

  • Solid technical support and after-sales service

  • Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)

  • Exports to more than 20 countries and regions, good customers feedback

  • One-stop service, customized exclusive project feasibility report

Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.



KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), LPG Spray dryer, Food spray dryer, Cassava Starch flash dryer / Cassava Starch dryer / Cassava dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Spray drying equipment,Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.



We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.



KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as China, Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.



We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!












Our Services

Pre-sale service

Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;



Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.



After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;

6.Provide technical support;
7.Establish long-term and friendly relationship.



Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.






FAQ

Special Notice:

           In order to quota you the right XSG Cassava Starch flash dryer / Cassava Starch dryer / Cassava dryer with best price, we would like to get the following information include in your inquiry:

  • -What is the raw material?  Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.

  • -What is the capacity per hour you need (kg/h)?

  • -What is the initial moisture and final moisture of finished products you require to get?

  • -What about the maximum heat temperature of raw material?

  • -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?

  • -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?

  • -Provide us your country’s electricity information, such as phases, voltage, HZ?

  • -How about dust collect requirements?

  • -Other special requirements?

Frequently Asked Questions

                Q: Can I visit your factory?
                A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.



                Q: What’s the quality of your products?
                A:Parts of our products come with best quality, and our products passed CE certification, exported
to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.



                Q: What to do if the machine has a problem?
                A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial
factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.



                Q: How long is the warranty of your equipment?
                A: Our warranty period is one year generally.



                Q: What is your payment term?
                A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also
be received after we both sides discussion and agreement.



                Q: Does your price include freight?
                A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port,
and we will give you CIF price.
