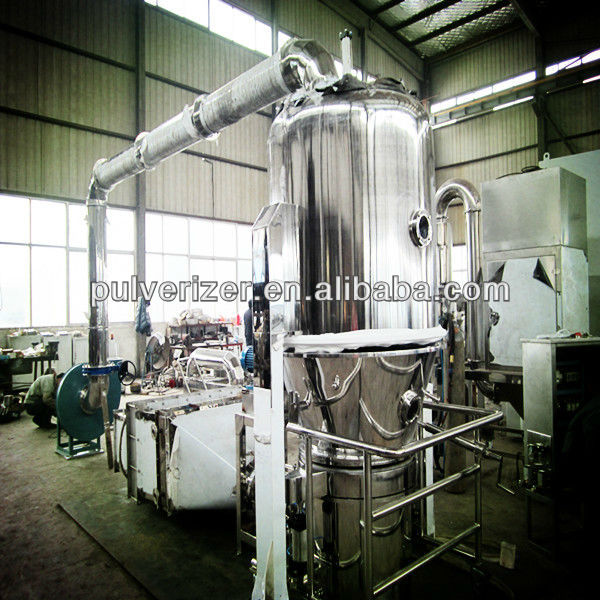

GFGQ high efficiency fluidized bed dryer
Specifications
1,no dead angle2,wide application3,big particle4,fast in drying5,meet the "GMP" requirement
Principle of working
When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Model | GFGQ-100 | GFGQ-120 | GFGQ-150 | GFGQ-300 |
Capacity (kg/h) | 60-100 | 80-120 | 100-150 | 250-300 |
Total power (kw) | 11.55 | 19.05 | 19.05 | 31.5 |
Wind rate of suction fan (m3/h) | 3845 | 4723 | 4723 | 6978 |
Full pressure of blower (pa) | 53307320 | 9590 | 9590 | 8143 |
Steam pressure (Mpa) | 0.40-0.60 | 0.40-0.60 | 0.40-0.60 | 0.40-0.60 |
Air-inlet temperature drying (°C) | 60-110(Adjustable constant temperature) | |||
Overall size of main frame (L×W×H)(mm) | 2105×1500×3050 | 2155×1550×3110 | 2250×1550×3110 | 2700×2130×3600 |
weight of main frame (kg) | 1200 | 1400 | 1600 | 2850 |
