newest type hot air flow wood sawdust flash dryer
Brief information:
The sawdust flash dryer also called pipe dryer or flash dryer,this machine is designed
for drying materials like sawdust, wood shaving, wheat straw, and corn stalks,
paddy straw , etc. The diameter of the raw material should be lower than 3mm,and
the moisture in the raw materials of less than 40% can be drying one time to meet the
requirement for wood briquette production line.
Features about the sawdust flash dryer:
1. This sawdust flash dryer can reduce the moisture of the raw materials to 8-12% one time with the advantages of lower consumption and high capacity.
2,sawdust flash dryer is considered as the most cheapest sawdust dryer, and the
capacity can be 200-1500kg/h,we can make the machine according to your requirement.

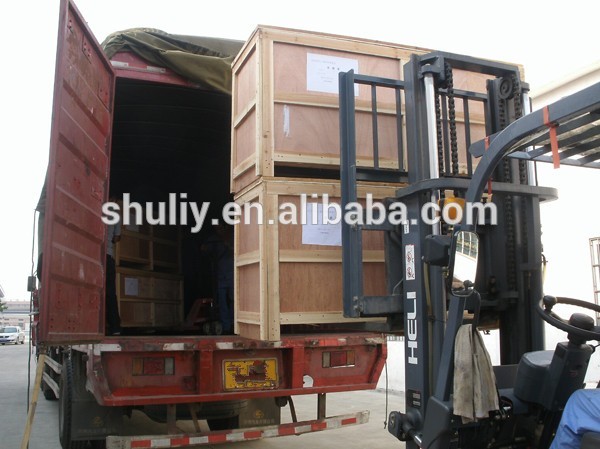

3,for the transportation,this machine can be taken apart and reassemble later,and this
machine is easy to install.
The process about the wood sawdust briquette production line:
1,crusher machine:before into the dryer machine,the diameter of your wood material
shlould be less than 3mm.if your wood material can not meet this require,you should
use a crusher.
2,airflow sawdust dryer:Too high moisture content in your sawdust will make your wood
briquette production failed, so this machine can help you make the crushed material from
35-50% to 8%-12%.
3,wood sawdust briquette machine:this machine can make the the dried material into
briquette shape.
Parameters of Drying Machine
Model No. | SL-1 | SL-2 | SL-3 |
productivity(Kg/hour) | 250-300 | 600-800 | 1000-1400 |
The diameter of the materials (mm) | < 3 & < 5 | < 3 & < 5 | < 3 & < 5 |
The temperature of the heating air(°C) | 180 ~250 | 180~250 | 180~250 |
Motor power(kw) | 4 | 5.5 | 7.5 |
Weight(kg) | 1200 | 1600 | 2100 |
Size of the machine(m) | 10*1.0*2. | 15*1.0*2.0 | 21*1.2*2.5 |

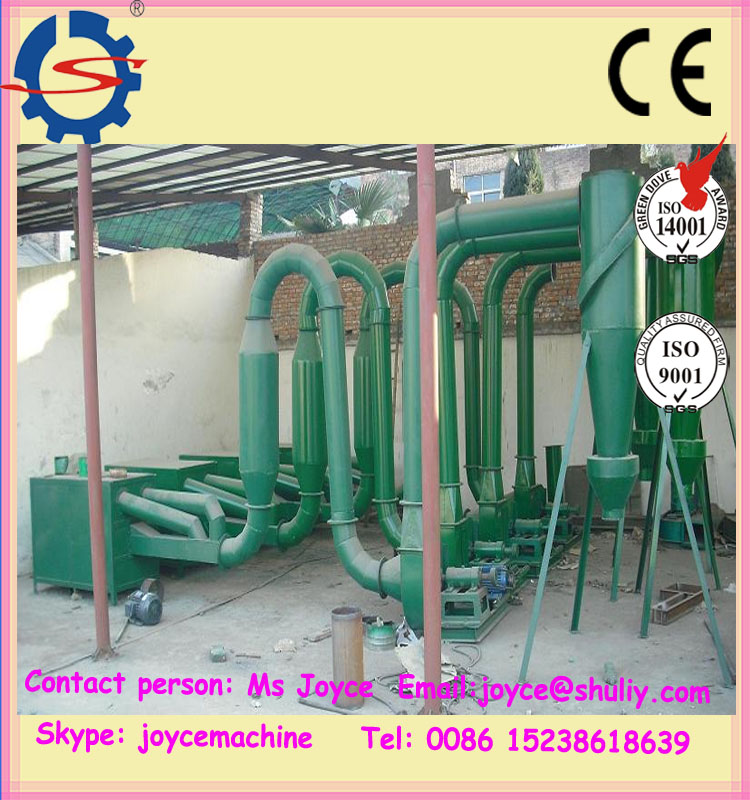

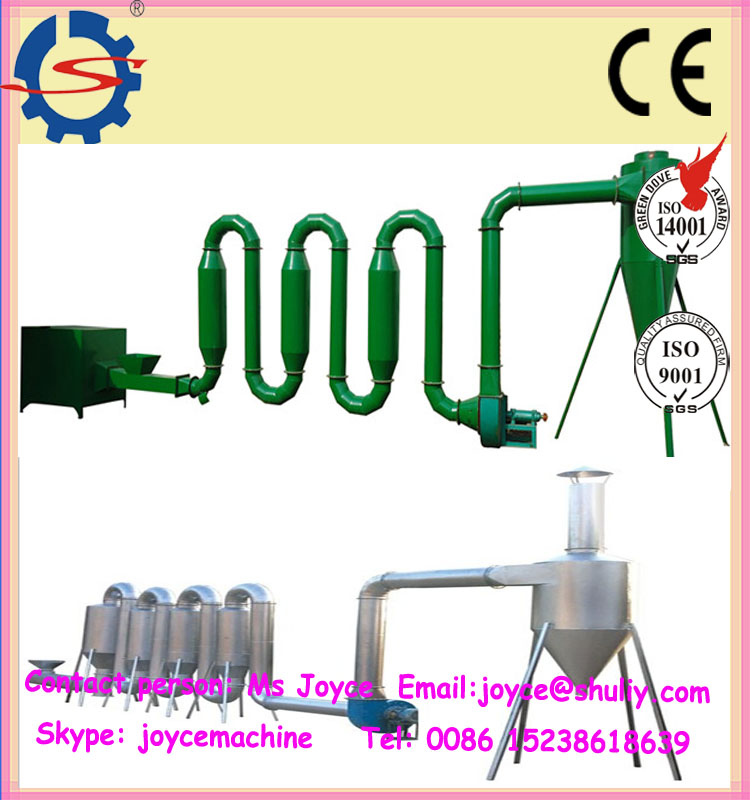

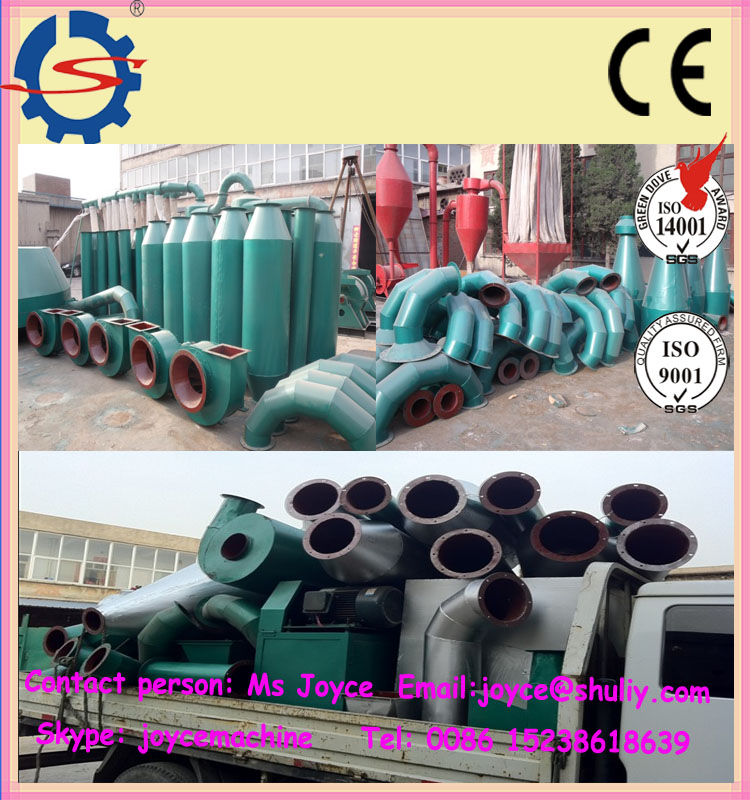

Pictures of Drying Machine
For more information, pls contact Joyce and will reply you within 24 hours!
