Flash Hot Air Flow Pipe Dryer For Wood Sawdust - Buy Dryer For Wood Sawdust,Pipe Dryer For Wood Sawdust,Hot Air Flow Pipe Dryer
Air dryer is a hot air pulse dryer, also called hot-air duct dryer. The advantage of this dryer is direct heating, fast drying, and folding installation, saving space. Air dryer refers to adding dry material such as powder or fibrous body wet material in a suitable manner, and continuously adding it into the drying tube. In the transportation and dispersion of the high-speed hot gas flow, moisture in the wet material is evaporated to obtain a powdery or fibrous dry product.

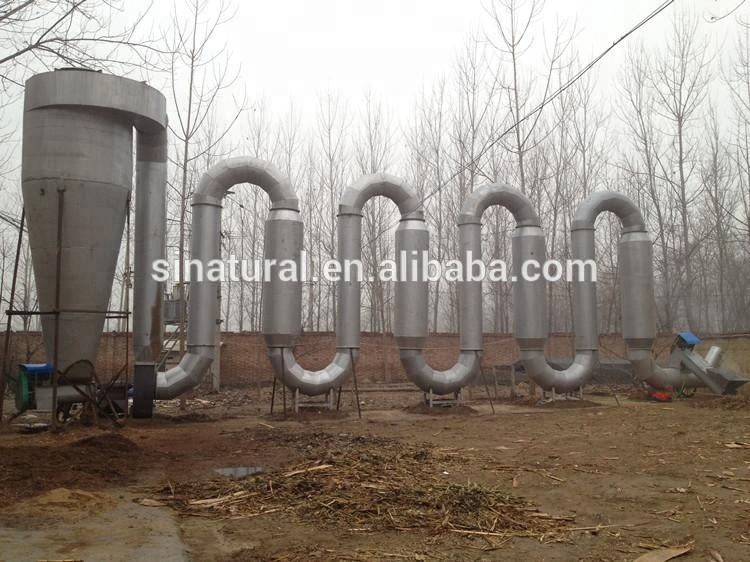

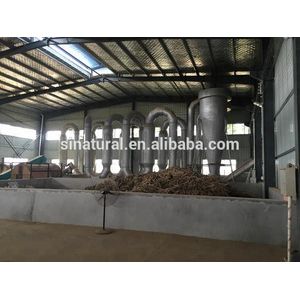

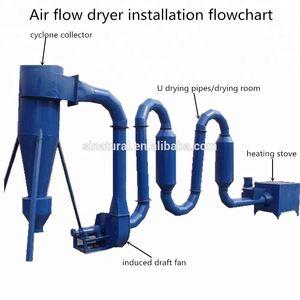

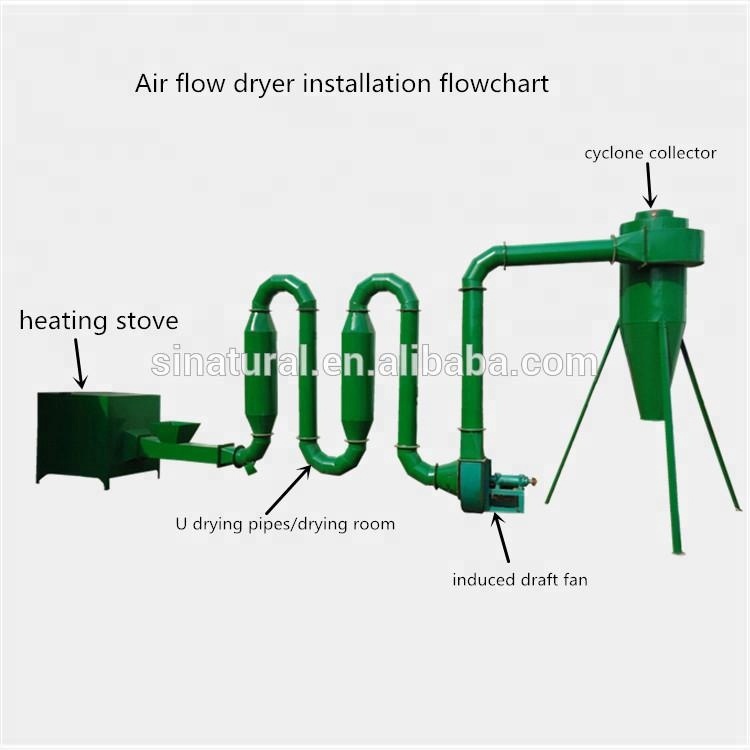

Compose of air heater, feeder, air drying tube, cyclone separator, fan and other components.
1. High drying strength . Since the material is highly dispersed in the air stream, the entire surface of the material is actively dry and effective.
2, Short drying time
3. The sawdust sawdust dryer has a simple structure, small footprint, and easy construction and maintenance.
4, a large amount of processing, high thermal efficiency. When drying unbound water, the thermal efficiency can reach 60%.
Air dryers are widely used in biomass raw materials, chemical industry, petroleum, food industry, pharmaceutical industry, agriculture and animal husbandry engineering, fishery, forestry and other industries.
| Item | QL-200 | QL-400 | QL-600 |
| Power(Kw) | 7.5 | 15 | 22 |
| Dry Chamber(Pcs) | 3 | 4 | 4 |
| Input size of Material(mm) | ≤10 | ≤10 | ≤60 |
Productivity(Kg/h) sawdust mositure reduce from 45% to 15%. | 400~600 | 800~1200 | 1500~2000 |
| Heating Mode | coal or biomass | coal or biomass | coal or biomass |
| Dimention(cm) | 1400×150×400 | 1900×180×500 | 2300×250×700 |
| Weight(kg) | 1500 | 3000 | 6000 |
