XSG Series Rotary Air Flash Dryer

PRIMARY PARAMETERS

Condition

New

Type

fertilizer

Place of Origin

Jiangsu, China (Mainland)

Brand Name

YI BU

Model Number

XSG

Voltage

according to customer needs

Power(W)

24-45(KW)

Dimension(L*W*H)

900*4600(mm)

Weight

one ton

Certification

ISO14001&9001

Warranty

one years

After-sales Service Provided

Engineers available to service machinery overseas

purpose

efficient is high

character

energy consumption is low

ISO14001

certification

be used for

chemcial material

certification

ISO9001

feature

high speed

DETAIL DESCRIPTION

XSG (Spin) Flash Drying equipment for titanium pigment

Absorbed the foreign advanced equipment and technology,our factory and Shenyang Chemical Research Institute of the Chemical Ministry of the State have developed this machine.This is a new kind of drying equipment used for drying the materials,such as paste state, cake state, thixotropy,thermal senstive powder and particles.Our factory is equipped with the testing sample machine,which can be used for carrying out the drying tests of various feeds for our users and for to provide the parameters to select the applicable machine.

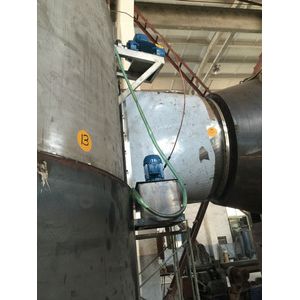

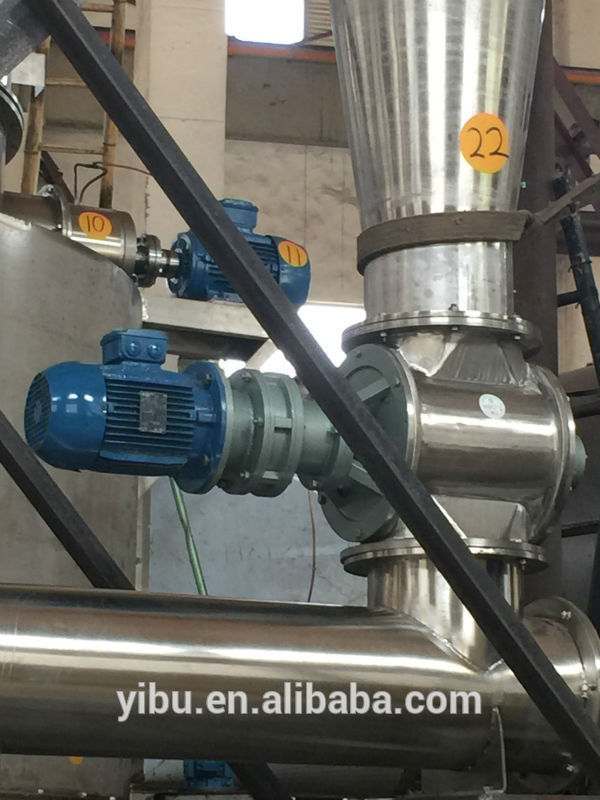

SPARE PARTS FOR THE FLASH DRYER

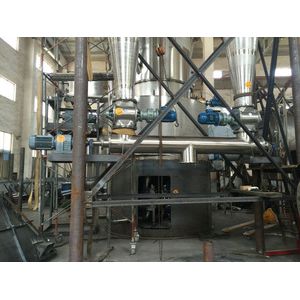

The whole machine

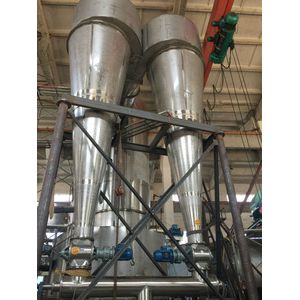

The hot air enters into the bottom of the dryer in tangent direction.Under the driving of the stirrer,a powerful rotating wind area is formed.The paste state materials enter into the dryer through the screw charger.Under the powerful function effect of stirring at high-speed roation,the materials are distributed under the function of strike,friction and shearing force.The block state materials will soon be smashed and contact the hot air fully and the materials are heated and dried.The dried materials after the de-watering will go up with the hot-air flow.The grading rings will stop and keep the big particles.Small particles will be sidcharged out of the dryer from the ring center and will be collected in the cyclone and dust collector. The not-fully-dried or big piece materials will be sent to the wall of the equipment by centrifugal force and be smashed again after they fall down to the bottom.

This machine combines the whirl technology with the fluidity .ejection and smashing step technologies.
The equipment is compact and small in size ,high in production efficiency and continuous in the production .It has realized that "a small equipment can perform the large production ".
The drying capacity for this machine is big but its energy consumption is low. Its heat efficiency is high.
The materiral stay time is very short .The quality of the final products is very good ,The machine can be used for drying the heat sensitive materials .
For the negative pressure or the micro-negative pressure operation ,the machine is good for its tightness and high in the efficiency so as to eliminate the environmental pollution .

spec	Barrel diameter(mm)	Main machine dimensions(mm)	Main machine power ( kw )	air velocity ( m³/h )	Water evaporation capacity ( Kg/h )
XSG-2	200	250×2800	5-9	300-800	10-20
XSG-3	300	400×3300	8-15	600-1500	20-50
XSG-4	400	500×3500	10-17.5	1250-2500	25-70
XSG-5	500	600×4000	12-24	1500-4000	30-100
XSG-6	600	700×4200	20-29	2500-5000	40-200
XSG-8	800	900×4600	24-35	3000-8000	60-600
XSG-10	1000	1100×5000	40-62	5000-12500	100-1000
XSG-12	1200	1300×5200	50-89	10000-20000	150-1300
XSG-14	1400	1500×5400	60-105	14000-27000	200-1600
XSG-16	1600	1700×6000	70-135	18700-36000	250-2000

Qidong Weien Yinong chemical co.,Ltd .
Sanjiu Changzheng Pharmceutical Co.,Ltd.
Shanghai Research Institute of Chemical Indusry.
shanghai xuhang Pharmceutical Factory .
Henan Pingdingshan Yicheng Carbonization Silicon Product Co.,Ltd.
Henan Luoyang Asia Beer Co.,Ltd.
Henan Anyang Jiuzhou Pharmceutical Co.,Ltd.
Shandong Shengli Biota Engineering Co.,Ltd.
Shaoguan Jiqi Pharmceutical Co.,Ltd.
Jiangsu Taibai Group.
Danyang Jiaoguang Material Co.,Ltd.
Anhui Fenglenong Chemical Co.,Ltd.
Hunan Kaifeng New Material Co.,Ltd.
Ningxia Qiyuan Pharmceutical Co.,Ltd.
Ningxia Yipin Biota Technical Co.,Ltd.
Export Iran,Australia.
