CE newest type hot air flow wood sawdust flash dryer

The cost of air flow dryer is much lower than the rotary dryer.

Technical Feature

  • New
  • Drying Oven
  • Henan, China (Mainland)
  • NMB
  • ZBJ-Series AS2566
  • 380v,220v,240v,etc
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~5

PRIMARY PARAMETERS

Condition
New
Type
Drying Oven
Place of Origin
Henan, China (Mainland)
Brand Name
NMB
Model Number
ZBJ-Series AS2566
Voltage
380v,220v,240v,etc
Power(W)
4+1.5kw
Dimension(L*W*H)
8500*1500*3500
Weight
1000kg
Certification
CE,ISO,CNCA
Warranty
24 MONTH
After-sales Service Provided
Engineers available to service machinery overseas
Name
hot air dryer
Heating way
use coal,wood,briquette any type buring material
Final finished moisture
less 8 %
Capacity
300-400kg per hour
Size of input
1-5mm
Temperature of Hot Air
180u00b0 C -250u00b0 C
Consumption of wood waste
10-15kg per hour
Max moisture
50% hot air dryer
Package
wood box
Usage
for different farm waste such as sadust,wood chips,and other wastes

DETAIL DESCRIPTION

2014 hot sale wood sawdust flash dryer

wood sawdust flash dryer Specification
 Type HGJ-I HGJ-IIHGJ-III
 Capacty(kg/h) 300 500 1200
 Power(kw) 4 5.5 7.5
 Dimension(mm) 8500*1500*3500 11600*1500*3500 15000*3000*5000
wood sawdust flash dryer features

1)The air flow dryer machine can reduce the humidity of wood material below 10%per time
2)The cost of air flow dryer is much lower than the rotary dryer.
3)It is professionally designed for drying different kinds of wood sawdust.

4) Working principle
Wet materials are input into the hopper, the fuel boile generates hot air which mixes with wet materials and thn is sucked into the pipes by the exhaust blower quickly. And then hot air is flowing and going thought the curving pipes and buffer(drying chamber)of dryer, thus wet materials is finished to dry, and The dried materialsare expelled out b the exhaust bower(fan).

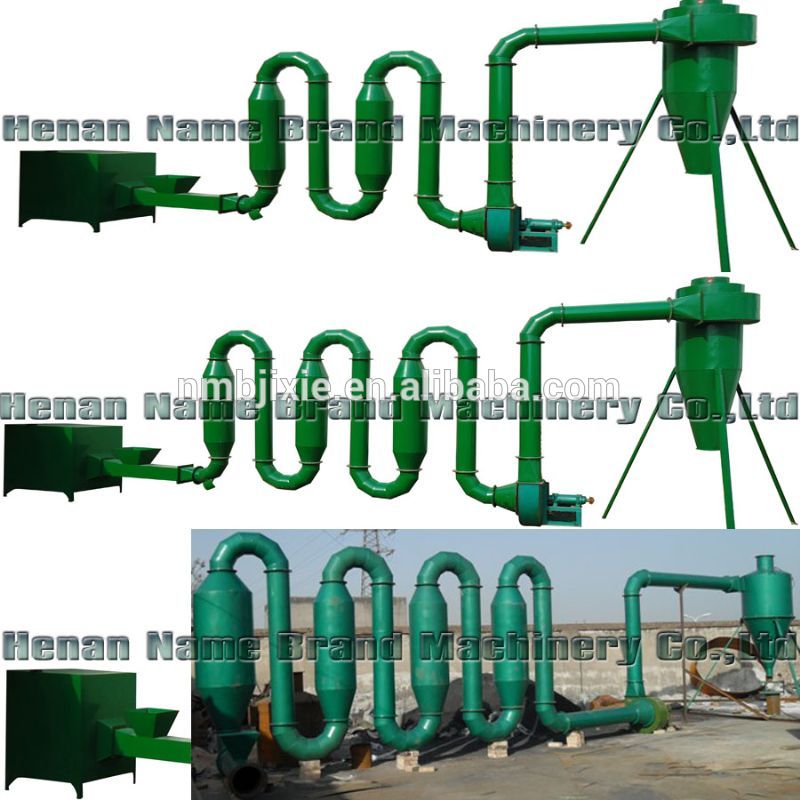

wood sawdust flash dryer  Photos



wood sawdust flash dryer Drying Equipment Name hot air dryer



high quality wood sawdust flash dryer Drying Equipment Heating way use coal,wood,briquette any type buring material

low cost wood sawdust flash dryer Drying Equipment Final finished moisture less 8 %

Payment Terms

 T/T,L/C OR WESTERN UNION

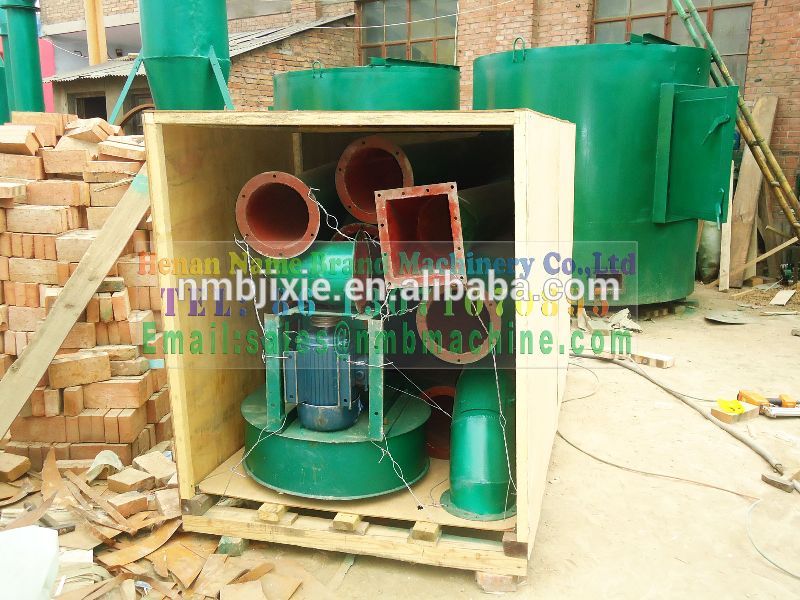

Packing Information

International standard wood fumicated box

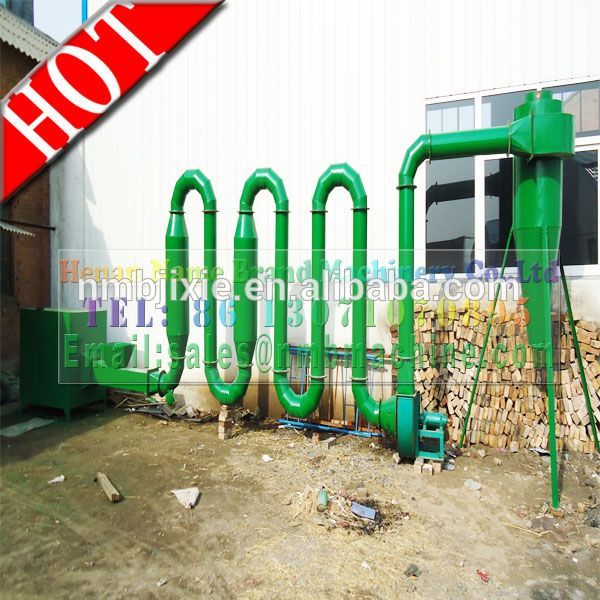

wood sawdust flash dryer More Photos



wood sawdust flash dryer Drying Equipment Capacity 300-400kg per hour

high quality wood sawdust flash dryer Drying Equipment Size of input 1-5mm

low cost wood sawdust flash dryer Drying Equipment Temperature of Hot Air 180° C -250° C

Welcome to contact us !!

wood sawdust flash dryer Drying Equipment Consumption of wood waste 10-15kg per hour
