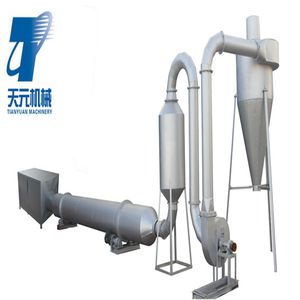

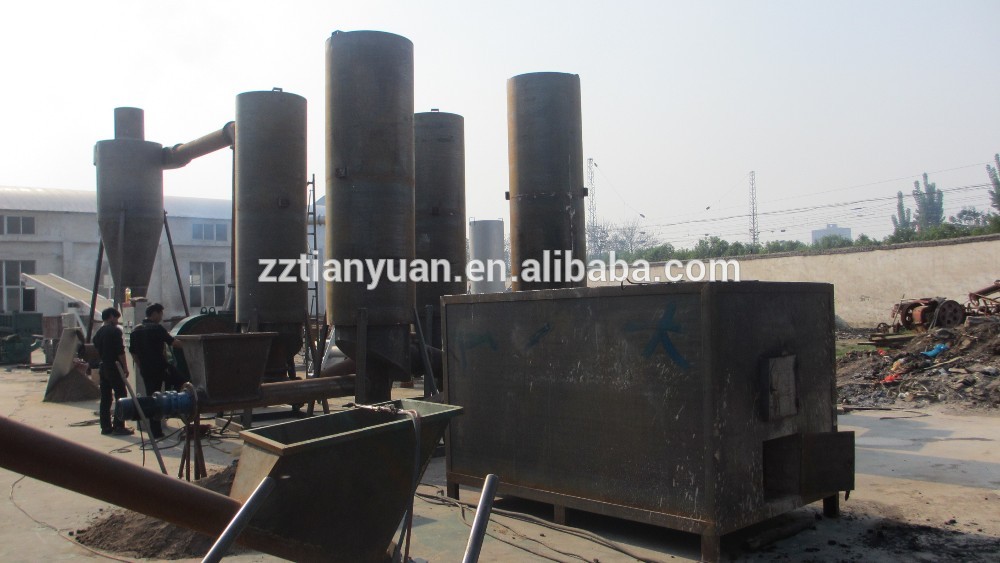

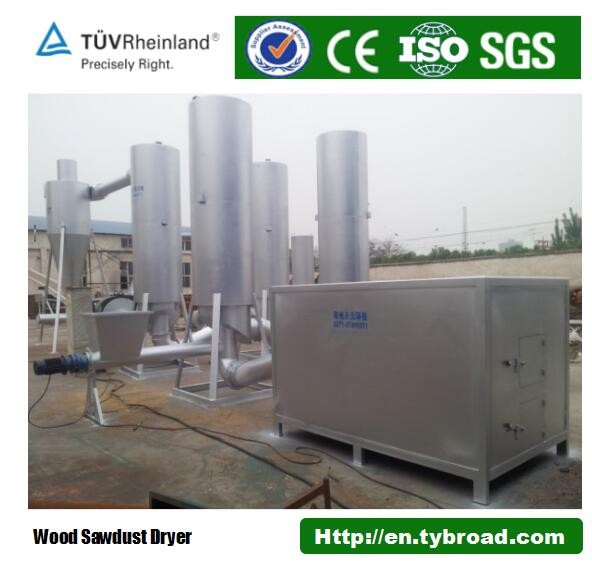

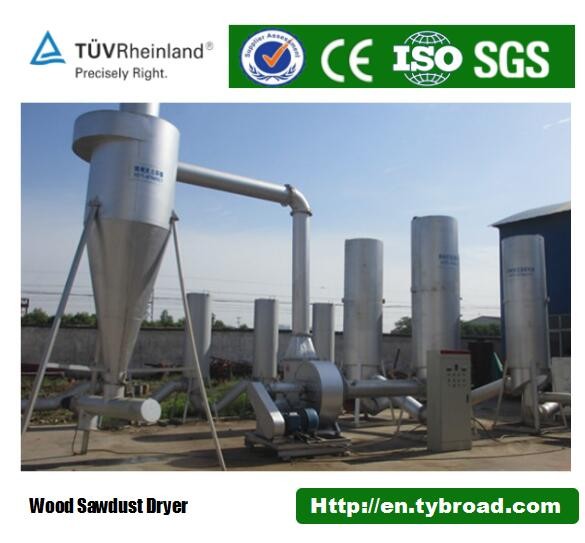

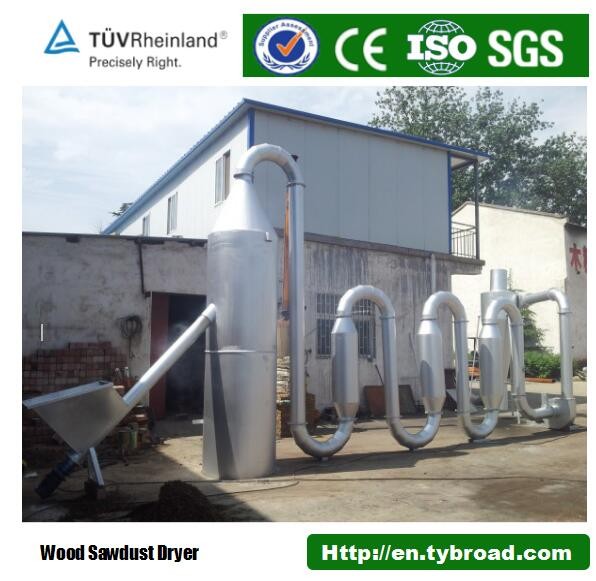

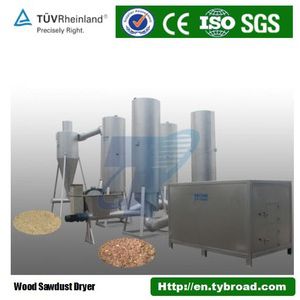

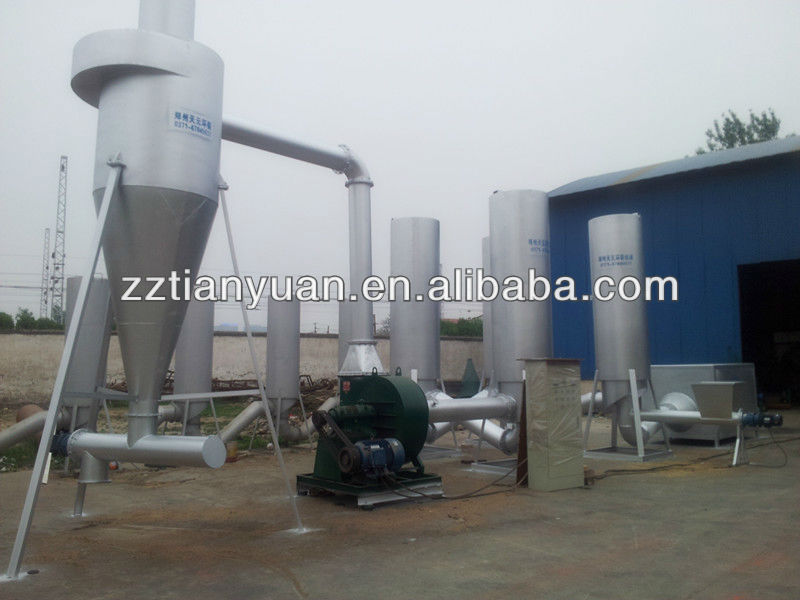

pipe flash dryer sawdust dewatering machine
Sawdust dewatering machine Introduction:
It also named pipline dryer , it is a heating and drying device for material.
Were widely used in cement, mining, building materials, chemical industry, drying coal, limestone,
grain, sand, clay and other materials.
The Feature of sawdust dewatering machine
1. The raising materal plate with reasonable distribution and angle.
2. With reliable performance,that high efficiency on heat power.Uniform on dry,less time on cleaning machine,convenience in maintenance.
3. Machine adopted Tug-aligning type structue ,tug working well with the type-roller,greatly reduce the wear anf power consumption.
4. The equipment specialized in the dsign of catch wheel structure,and greatly reduce the horizontal thrustwhich cause for the equipment tilt to work.
5.Strong resistance to overload, operating smoothly ad high raliability.
6. With high heat resisting,can use high temperature and heat wind rapid drying,strong extensible ability.
7. The design of drum dryer considering the productio margin,even a small increase in production,and do not replace equiment.
8. Round drum dryer wth large capacity,less fule cnsumption ,low dry cost.
Model | Specification | Photo |
TYHG450 | Drying cylinder dia.: 450mm Feeding humidity :10-80% Output humidity : 5% Feeding size :≤3 mm Water evaporation :200-400 kg/h Dimension :6*1.5*4 m Power:5.65 kw Weight: 1550 kg |  |
TYHG650 | Drying cylinder dia. :650mm Feeding humidity :10-80% Output humidity : 5% Feeding size :≤3 mm Water evaporation: 300-600kg/h Dimension :8*1.5*4 m Power : 17.2 kw Weight: 5500 kg |  |
TYHG950 | Drying cylinder dia. :950mm Feeding humidity : 10-80% Output humidity :5% Feeding size : ≤3 mm Water evaporation: 400-800kg/h Dimension :15*2.5*5 m Power :34.4 kw Weight: 7500 kg |  |
