GKH SIPHONE PEELER CENTRIFUGE FOR STARCH DEWATERING

PRIMARY PARAMETERS

Condition

New

Type

Separating Plant

Product Type

pharmaceutical machine

Place of Origin

Jiangsu, China (Mainland)

Brand Name

Peony

Model Number

GKH1050

Voltage

110V/220V/380V/440V

Power(W)

45kw

Weight

8000kg

Dimension(L*W*H)

2615*2300*2200mm

Certification

CE,TUV

Warranty

12 monthes

After-sales Service Provided

Engineers available to service machinery overseas

Name

GKH Horizontal Scraper Centrifuge Pharmaceutical Machine

Separation factor

1072

Max rotation speed

1350r/min

Loading limit

250kg

Application

pharmaceutical

More application

chemical industry,medical manufacture,food

Material

stainless steel,titanium alloy...

DETAIL DESCRIPTION

GKH Horizontal Scraper Centrifuge Pharmaceutical Machine

Product Description

GK Series siphon type peeler centrifuge manufacturer/peeler centrifuge/scraper discharge centrifuge/blade centrifuge/scraper centrifuge

GK Series siphon type peeler centrifuge

Peeler centrifuge can continuously work and intermittently filter. It is either automatic control or manual control.

The whole process of operation including materials feeding, separating, cleaning, dewatering, discharging and filter cloth recycling can be achieved at full speed. Single cycle of processing material is shortly but with large quantity. The solids cake can be well dried and cleaned.

Peeler centrifuge are applicable to chemical industry, light industry, pharmacy especially for dewatering the suspended liquids containing big, medium and small size particles, like thiamin, PVC.

Fundamental

-- Working principle:

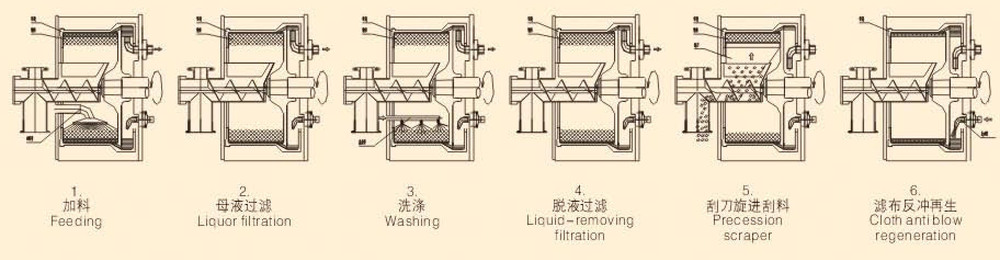

GKH Working principle
Main machine starts and automatically speeds up, meanwhile gas inside machine can be exchanged with nitrogen or other inert gas. When predetermined index is met and drum speed is suitable for discharging, feeding valve opens automatically and material level detection begins to work. When layer depth is high enough to reach the material detection slab, feeding valve closes to stop feeding. Under the effect of centrifugal force, most of the liquid in suspension of thrown out through the holes on filter cloth (or filter net) and drum wall then flows onto mother liquid tank through horizontal liquid outlet (initial filter process). With material dehydration going on, centrifuge will automatically slow down to a speed for washing according to technical requirement. Washing valve opens automatically. With washing liquid rising to a certain height, washing valve speeds up automatically for further dehydration (secondary filter process).
After a moment of operation, material gets fully dried, when discharging is in process. Then discharging valve opens and discharging cylinder begins to work when centrifuge automatically slows down to predetermined speed. With scraper rising spirally and automatically, solid material is scraped down into the hopper equipped with spiral discharger. With constant motion of spiral discharger, material is pushed out and discharged from centrifuge. Scraper rises closer to filter cloth. When there still exists a certain distance between scraper and cloth, the bar on scraper device approaches proximity switch to stop scraper rising then retreats quickly after a short pause (about 15s) then enters next cycle.

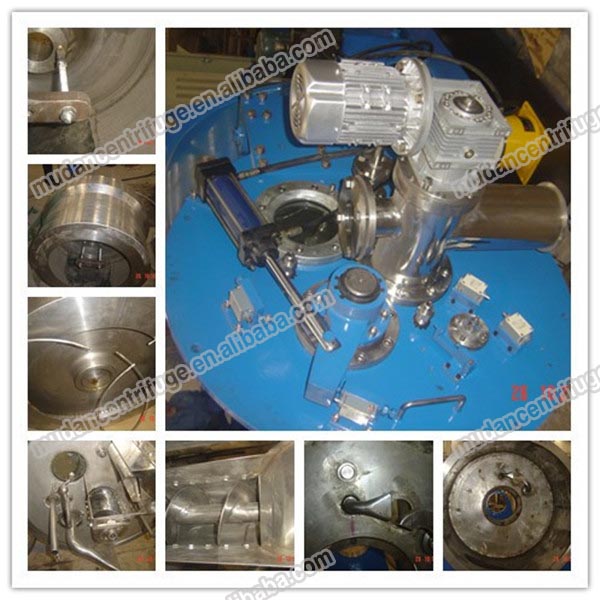

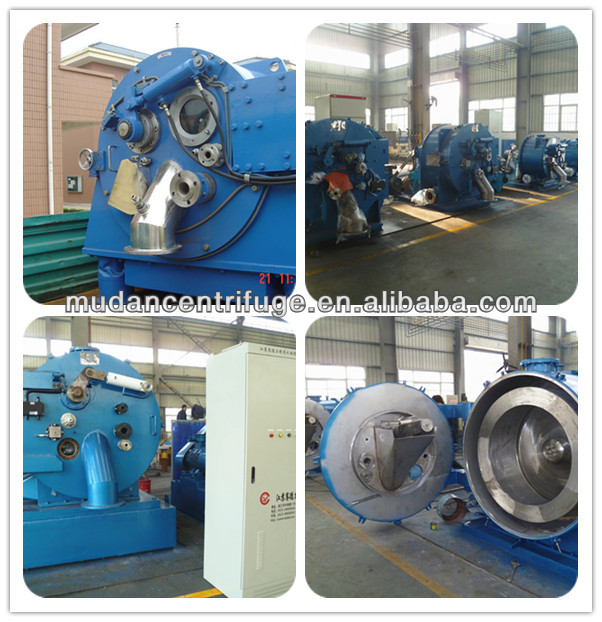

Details

Main Features

GKH series of peeler centrifuge is a new type machine. which is horizontally fitted, automatically controlled, scraper unloading and siphon filtered. In order to speed up filtering, it makes used of dual effects of centrifugal force and siphonic force to enhance the filtering thrust. As a result, it can shorten separating time and gain higher production and lower moisture content in residue. It is widely used in separation of the materials, which have a small solid—size and low density when the materials are difficult to be separated. It is especially used in the occasion of overloaded production and sufficient washing.

Because of its sealed and corrosion resisting stainless steel structure to be up to the standard of GMP. It can be used in high cleaning requirement industries, such as pharmaceutical, foodstuff and so on.

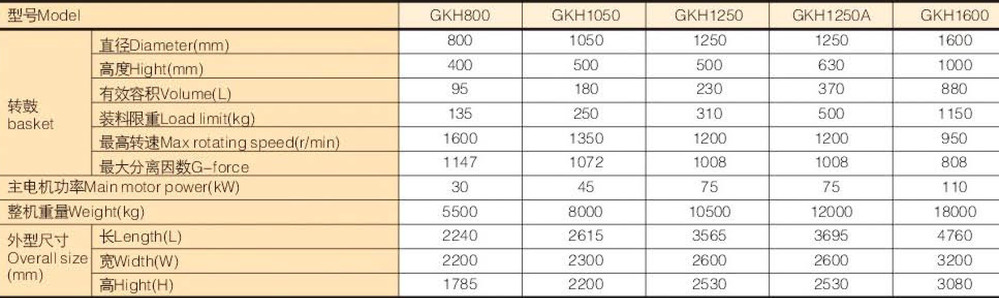

Parameter

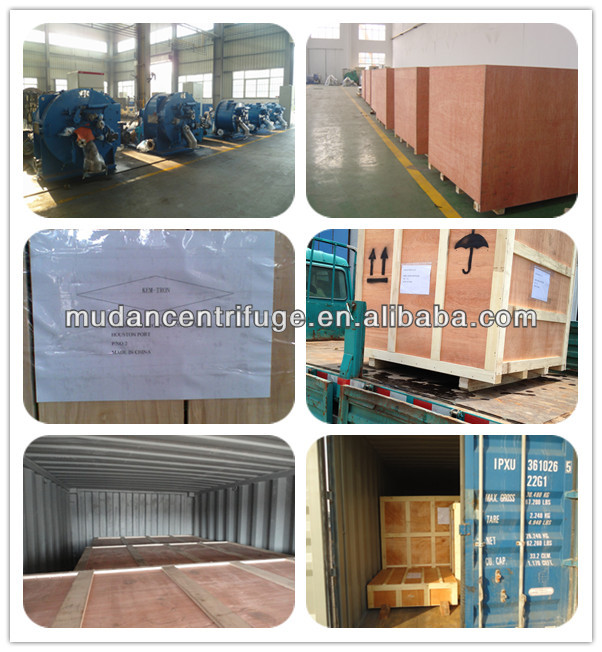

Packaging & Shipping

Our Services

1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated in priority.

9. Marketing team will visit you during our visit in your country if you require.
