Product Description

 Cheap Cassava Starch Dewatering Centrifuge

Starch powder separation centrifuge

Solid liquid separation centrifuge

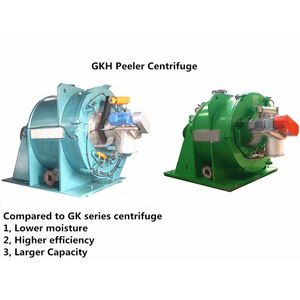

GKH Siphon Peeler Centrifuge

Working Principle

Introduction For Cassave Starch Dewatering  Centrifuge

GKH horizontal siphon peeler/scraper discharge centrifuges mainly apply to sperate/washing /dewatering/ kinds of materials especially that are sticky ,

GKH Series are centrifuges with scraper discharge and automatic  operation at full speed.. they are capable of full automatic (PC controller) . Matching electric and hydraulic controller , it can control all the process of  the feeding ,separating ,washing and discharge at full speed

Principle For Cassava Starch  Dewatering Centrifuge

The main motor drives the inside and outside bowl at full speed, the materials to be separated fed into the bowl, under the huge centrifugal force, the liquid phases go through the filtering bag and the inside bowl and gathering at the gap between the two bowl, the liquid phase continuously go across the room of siphon, and finally move out the machine (centrifuge). At the same time, the solid phase stay at the inside drum and are becoming the filter cake. Stop feeding when reach the max. loading capacity, continuously separate and wash until being over, the scraper automatic rotate and discharge the solid phase out of the machine, after self-cleaning , begin the next cycling

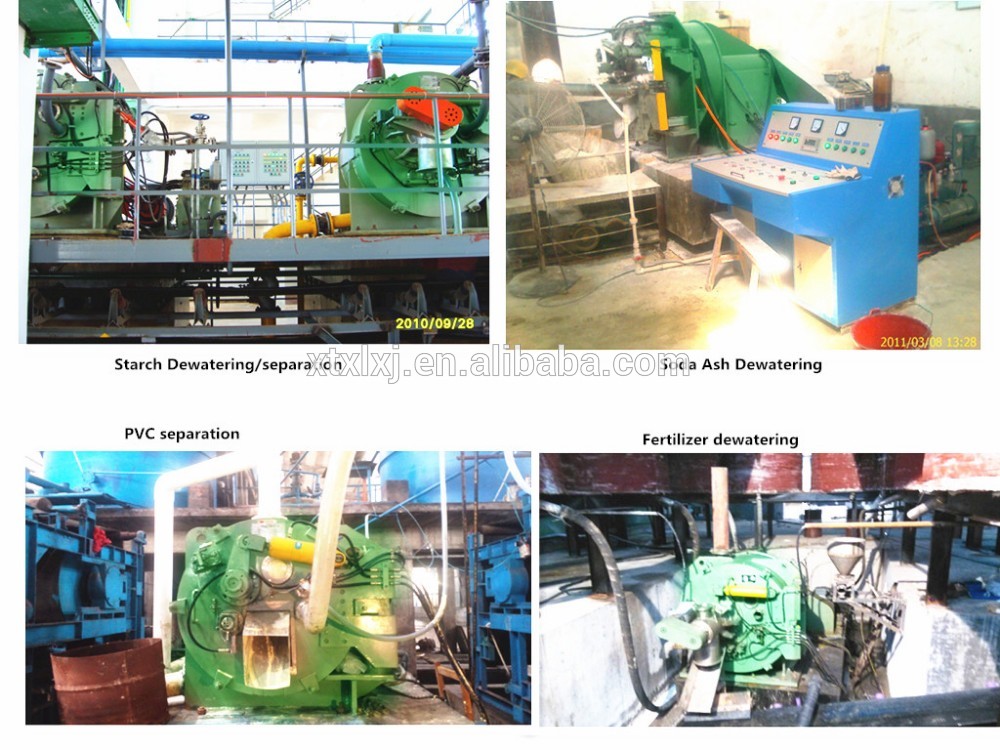

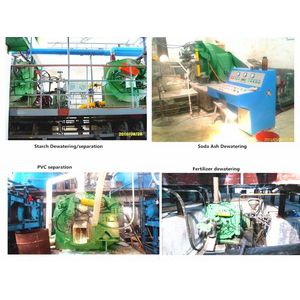

Applications

It appliy to Chemical, food , pharmaceutical, plastic, pesticide and other industries

Topical products

Starch

Citric acid

Amino acid

PVC

Anthracene

Features

GKH Series are kinds of horizontal peeler/ scraper discharge and siphon filtering Centrifuge with full automatic control and continuously cycling operation .It can automatic accomplish the continuous process of feeding, separating ,washing , dewatering ,unloading, discharge and cleaning the filter bag.

1. With new structure system

2. Shock-proof

3. High full automatic

4. Low labor

5. Huge load capacity

6. Clean washing

7. Moisture decreased notably

 Working Condition

1 The materials to be separated are suspend liquid ,solid-liquid and so on .

2 There are density contract of the suspended liquid

3 the concentration of the solid phase >20%, while that of the liquid phase < 10-2Pa.s . and the diameter of the solid phase > 0.015mm

4 Working temperature: no more than 100 c

Optional Parameter

1 Material contactedthe liquid to be separated : Carbon steel(G), Corrosion resisting steel (N), Titanium(I), Metal coat (J), Rubber ,and so on

2 Motor Type: General motor or explosion proof motor

3 Speed controller: AC frequency , electromagetric or mechanical belt

4 The range of speed difference: 10 r/m - 50 r/m

5 Discharge: Mother liquid and washing solution can be discharged mixed or separately

6 All the machine made match the GMP standard

7 Design and produce all customized

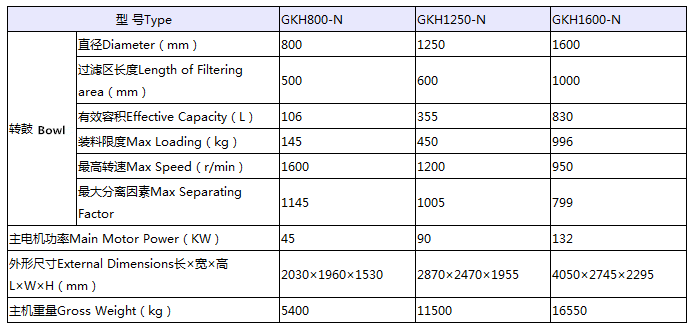

Techincal Parameter
