Application:

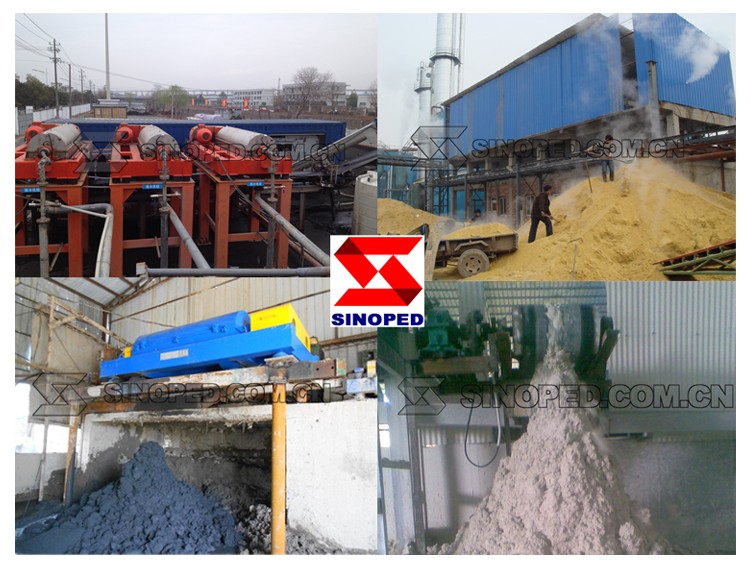

The machine is widely used in industries as municipal and industrial waste water treatment, food processing, pharmaceuticals and chemicals, etc.
1. Solid phase dehydration: dehydration effect for processing materials of solid particles.
2. Particle size classification: used in the removal of material of large diameter solid particles.
3. Liquid clarification: used for removing solid particles in the suspension liquid are clarified.
Features:

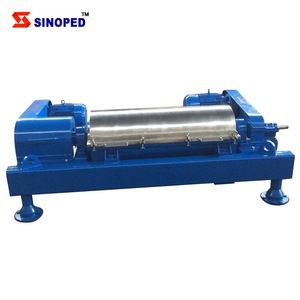

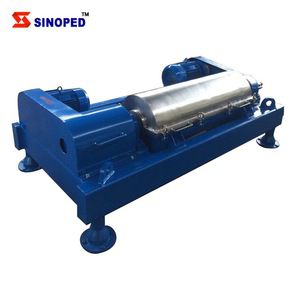

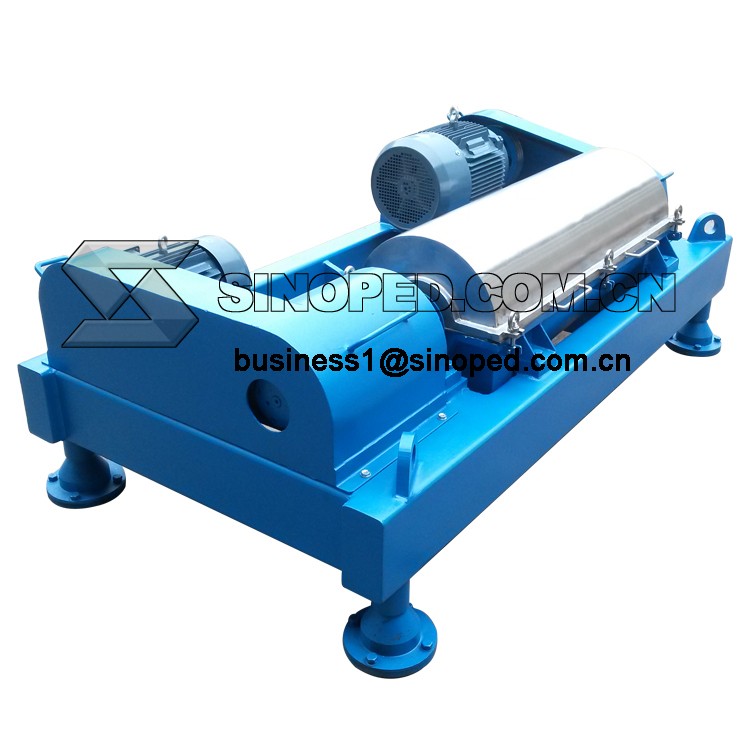

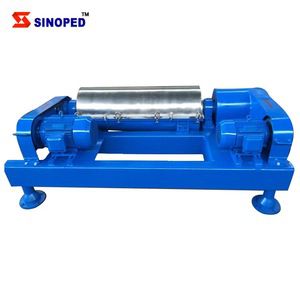

The decanter centrifuge can be adjusted to suit individual requirements by varying:
1. Bowl speed to ensure the exact relative centrifugal force required for optimized separation.

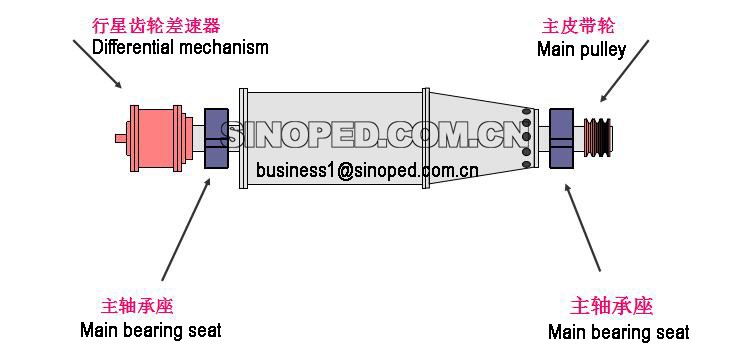

2. Differential speed, for optimized balance between liquid clarity and solids discharge capacity.
3. Pond depth in the bowl for optimized balance between liquid clarity and solid dryness.
| Model | Bowl diameter | Bowl length | Capacity | Motor | Weight | Dimention |
| LW250-720 | 250mm | 720mm | 0.3-1.8 m3/h | 7.5kw | 850kg | 1915*1250*680mm |
| LW250-960 | 250mm | 960mm | 0.5-5 m3/h | 7.5kw | 950kg | 2120*1250*680mm |
| LW300-900 | 300mm | 900mm | 1-6 m3/h | 11kw | 1160kg | 2150*1300*900mm |
| LW300-1200 | 300mm | 1200mm | 2-6 m3/h | 11kw | 1350kg | 2450*1300*900mm |
| LW355-1160 | 355mm | 1160mm | 2-8 m3/h | 15kw | 1400kg | 2470*1350*830mm |
| LW355-1460 | 355mm | 1460mm | 2-10 m3/h | 15kw | 1800kg | 2750*1350*830mm |
| LW400-860 | 400mm | 860mm | 2-8 m3/h | 15kw | 1600kg | 2270*1480*980mm |
| LW400-1600 | 400mm | 1600mm | 3-15 m3/h | 22kw | 2000kg | 3130*1600*1080mm |
| LW450-1800 | 450mm | 1800mm | 4-25 m3/h | 37kw | 2500kg | 3320*1700*1130mm |
| LW500-1250 | 500mm | 1250mm | 5-25 m3/h | 37kw | 2500kg | 2770*1800*1170mm |
| LW500-2000 | 500mm | 2000mm | 5-35 m3/h | 45kw | 4000kg | 3520*1800*1170mm |
| LW600-1800 | 600mm | 1800mm | 6-40 m3/h | 55kw | 4000kg | 4490*1425*1690mm |

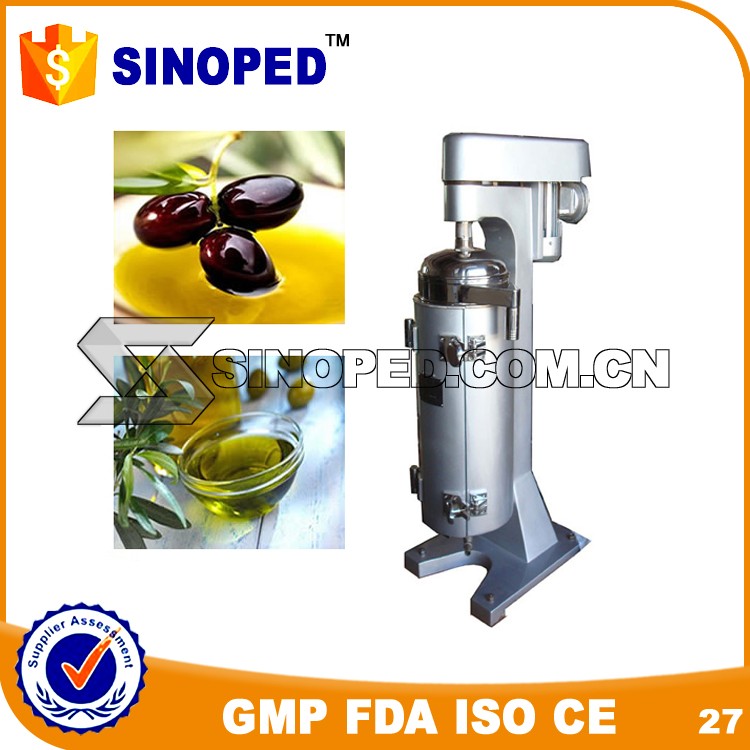

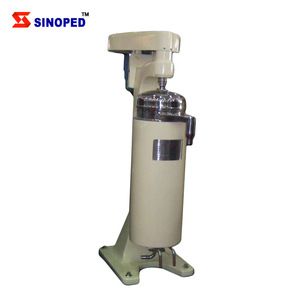

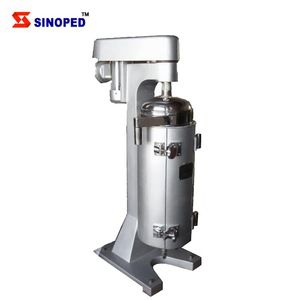

Tubular separator centrifuge
95.8% Response Rate

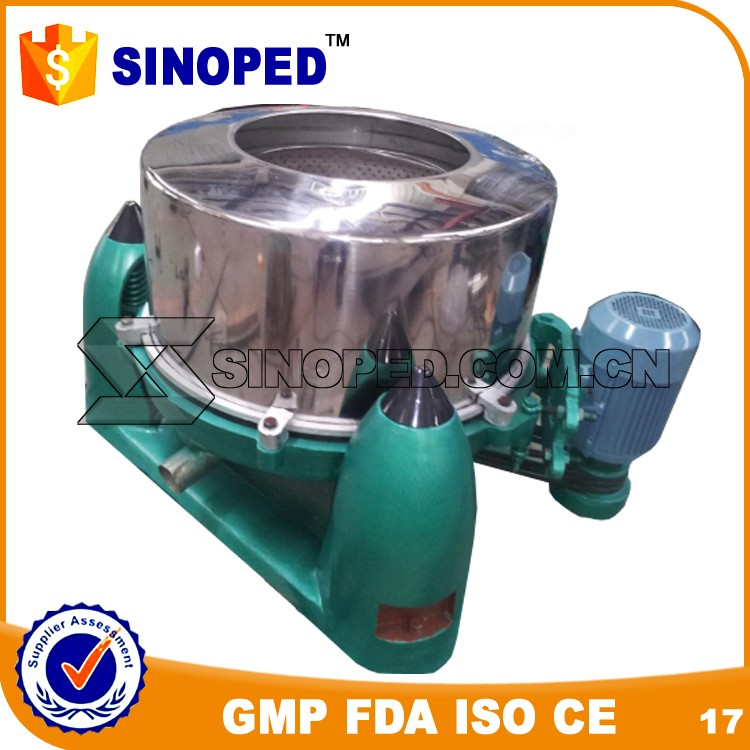

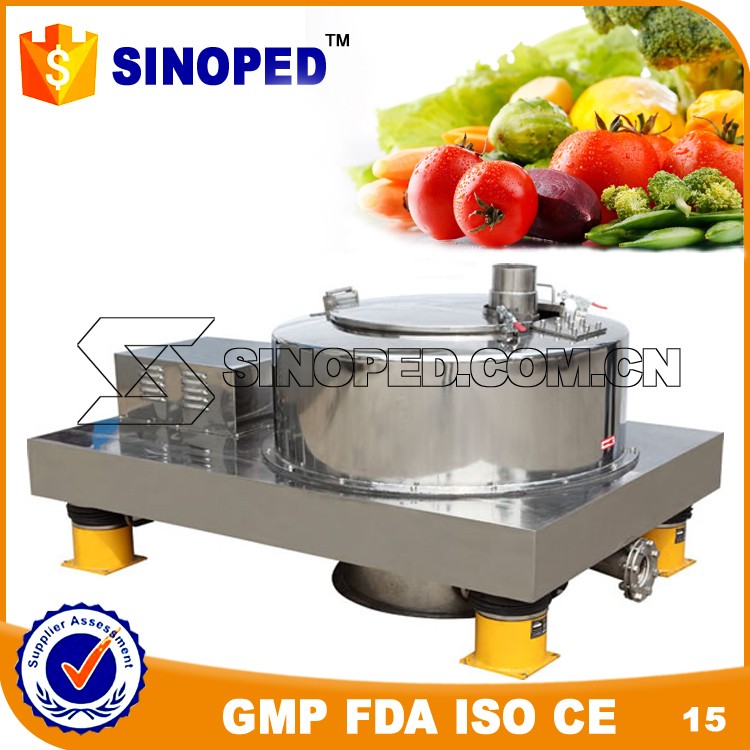

Flat centrifuge
