MY-RXH series warm air cycle granule dryer
Main Application:
The air circulating oven is a versatile drying equipment,it is suitable for heating,soliding and drying material and product in the field of pharmaceutics,chemical,foodstuff,light industry
such as:raw material medicine,Chinese traditional medicine,power granule,crude drug,packing bottle,pigment,dyestuff,dehydration vegetable,foodstuff,plastic resin,electric component,
coat,wool,salt,catalyzer etc.
Features:
Most hot air is circulated in the oven.The heat efficiency is high and the energy is saved.
It use the forced ventilating function,there are adjustable air distribution plates inside the oven,the materials can be dried uniformly.
The heating source might be steam,hot water,electricity and far infrared,with a wide selection.
The machine is low in the noise.The operation is in balance.The temperature is controlled automatically.
The installation and maintenance are easy.
The application is wide.The machine can be used for drying various materials and is a versatile drying equipment.
Parameter:
Model No.L | RXH12C | RXH-14C |
Drying capacity for each time(kg) | 50 | 100 |
Power (kw) | 0.45 | 0.45 |
Steam to be consumed(kg/h) | 9 | 15 |
Air capacity (m³/h) | 3000 | 3400 |
Temperature between the top and the bottom(°C) | ±2 | ±2 |
Plate for each machine | 24 | 48 |
Machine Size | 1400*1200*2000 | 2300×1200×2300 |
Detail | Single door | Double door |

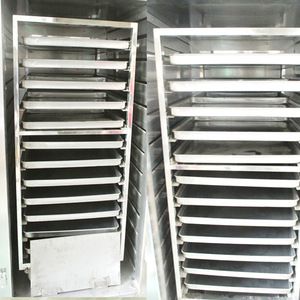

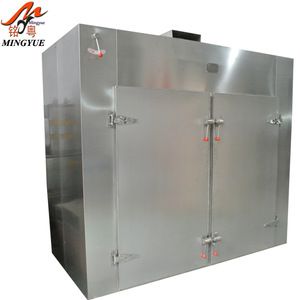

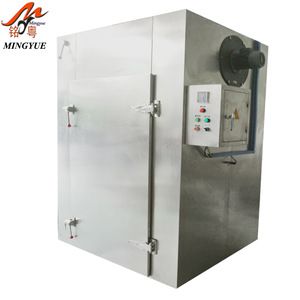

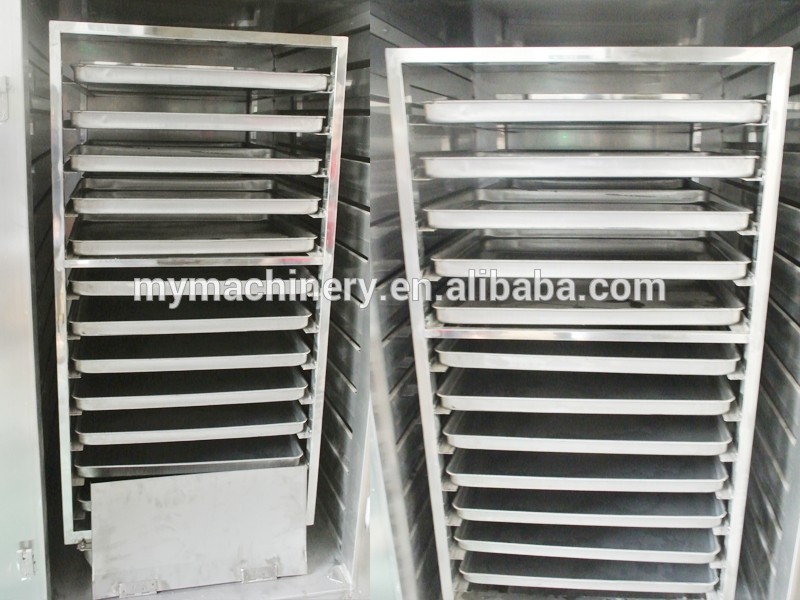

machine picture:
Sample:
What information need to offer for quote?
The product to be packed
The filling weight of per bag
The bag size or packing film width
The picture of your product if necessary.
What kind of bag shape can be choosed?
If you want to design the special packing machine, we can manufacture the packing machine
as your requirements.
