Inlet temperature: 35 °C
Inlet oil content::≤0.1PPM
Work pressure: 0.7MPa
Pressure loss: 0.15 bar
Designed pressure dew point: -40°C
Regeneration purge loss: ≤7%
Cycle time:1h

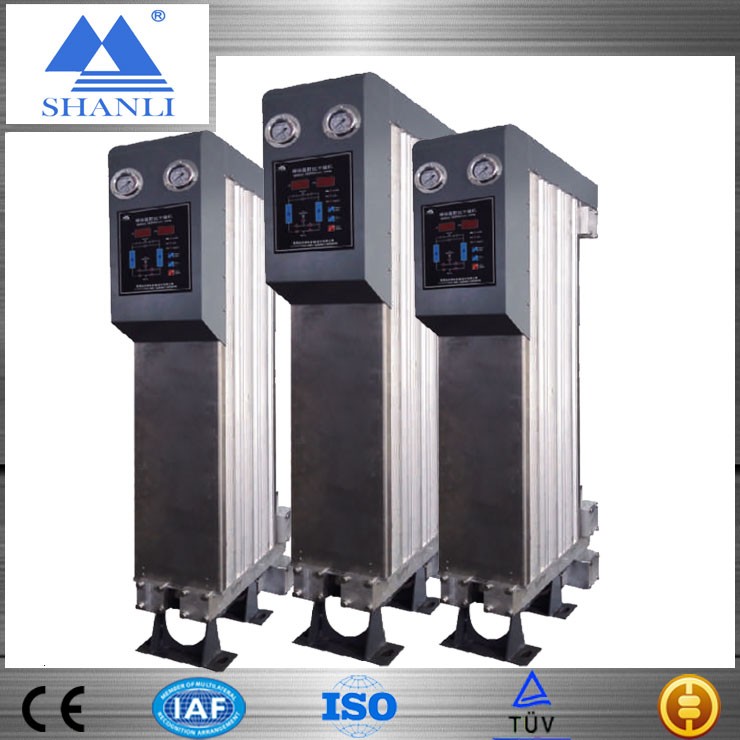

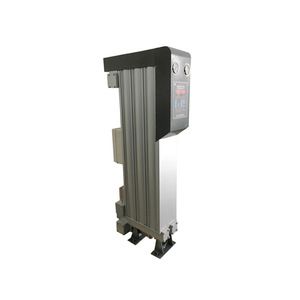

Features:
High efficient desiccant
High-strength aluminum alloy structure with corrosion-resistant
Core design with 1/2 dimension to traditional dryer
Tornado filling to prevent tunnel effect
Unique multiple parallel insallation
Specification:
| Technical Specafication And Quotation Heated Type | |||||||||
| Model | Capacity | Air Pipe Diameter | Air Comsuption | Power | Net Weight | Length | Width | Height | |
| m3/min | cfm | (Kg) | (mm) | (mm) | (mm) | ||||
| SDXM-1J | 1.5 | 53 | G1" | <7% | 220V 50Hz | 11 | 465 | 290 | 1205 |
| SDXM-2J | 2.7 | 95 | G1" | 21.5 | 585 | 290 | 1205 | ||
| SDXM-3J | 3.9 | 138 | G1" | 32 | 705 | 290 | 1205 | ||
| SDXM-4.5J | 4.5 | 159 | G1 1/2" | 33 | 585 | 290 | 1645 | ||
| SDXM-6J | 6.6 | 233 | G1 1/2" | 50 | 705 | 290 | 1645 | ||
| SDXM-8J | 8.7 | 307 | G2" | 66 | 825 | 290 | 1645 | ||
| SDXM-10J | 10.8 | 381 | G2" | 82.5 | 945 | 290 | 1645 | ||
| SDXM-15J | 15.1 | 533 | G2 1/2" | 115.5 | 1190 | 290 | 1645 | ||
| SDXM-17J | 17.2 | 607 | G2 1/2" | 132 | 1310 | 290 | 1645 | ||
| SDXM-20J | 21 | 742 | G2 1/2" | 165 | 1550 | 290 | 1645 |
There are still some areas and applications where Shanli refrigerated air dryers can be used, such as power construction, packing
food, making ship, cleaning medical molding,removing EDM recast and discoloration, finishing and texturing injection
mold cavities, cleaning orifices in turbine blades,engraving optical lenses,cleaning and preparation of semi-precious
stones and jewelry, etc.
Packing Details:Wooden crate pallet plus foam board and bubble film,Full closed wooden case.
1pcs/each package.All products are covered with air bubble film before put them into the wooden case,
Our Service
(1). Pre-service
A:24 Hours online service
B:Our prefessional sales will help choosing the right products for you
2. Middle service
A:Try to give you our best offer
B:Costomized products as your requirment
C:Discuss the payment term as your convienent.
D:Talking about the delivery and packing
E:Can provide invoice value as you like to decrease your tax.
3. After sale service
A:1 year warranty service after the equipment debugging.
B:Technical Egineer are avalible for oversea trainning.
C:Free change for some parts
D:Free installation DVD
E:Maintenance plan

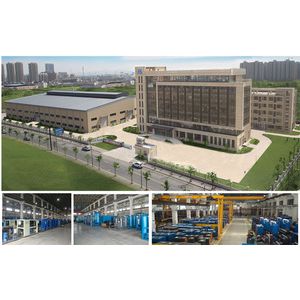

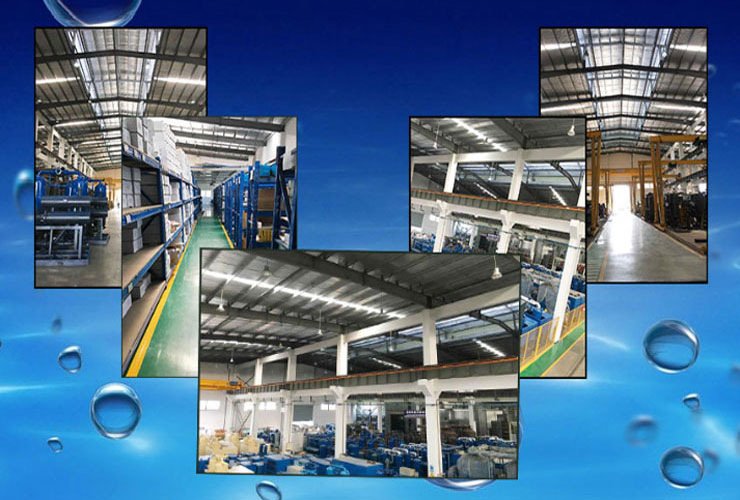

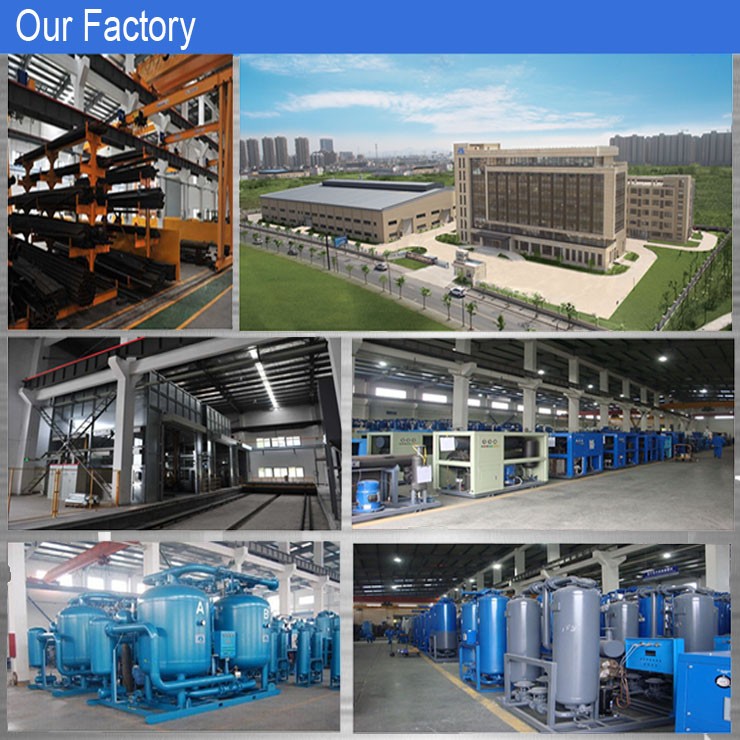

Established in 1997, Hangzhou Shanli Purify Equipment Corporation is an enterprise specialized in design, development and production of compressed air dryers, filters and other purification equipments. Our company has a workshop of
30, 000 square meters and more than 300 staff. Shanli has become one of the largest manufacturers in the Chinese purification industry
with the top sales turnover. Our self-design and self-made equipment is compatible with many famous brands of air compressor to
efficiently remove water, oil and dust from compressed air. On basis of IS0 9001 certification standard, our design, production, test and
services of the machine are all well- managed and strictly controlled since year 2001.
1 Business Type
♦ Factory located in Hangzhou
♦ Factory covers an area of 40,000m²
♦ Employees, over 300 people
2 What are your main products?
♦ Refrigerated air dryer
♦ Adsorption air dryer
♦ Combined refrigerated and adsorption air dryer
♦ Water chiller
♦ Water chiller
♦ Oil filter
♦ Dust filter
3 How to make order?
♦ Communicate with our salesman
♦ Provide your customized technical parameters
♦ Offer you a price as your requirement
♦ Payment term,shipping packing
♦ Start the bulk production after receiving your deposit
♦ Forwarder books the cargo
♦ Delivery the goods and balanced after receiving the copy of B/L
♦ Welcome your second order and further more orders in future
4 Quality Assurance
♦ 100% inspection before shipment
5 Why choose us?
♦ With more than 20 years experiences in compressed air dryer
♦ Shanli is the leading brand in China
♦ Professional engineers and workers
♦ Experienced OEM service made to customer specifications
♦ Dedicated customer service and technical support
The biggest air dryer manufacturer in China!
