Product Application
Blower purge desiccant compressed air dryer uses air blower and external electrical heater to produce purge air for desiccant regeneration.
The blower intakes atmospheric air flow through the heater, then through the desiccant media thereby regenerating it. With this design, no dried compressed air is consumed for regeneration, which maximizes the amount delivered to the air system. Blower heater Air Dryer is usually suitable for large flow from 23 -510m3/min ,outlet air pressure dew point is -40°C.
Main Features
1.High Performance pneumatic Valves Oil-less pneumatic valves are designed specifically for high temperature applications and feature stainless steel internals and filled PTFE seats.
2.Low wattage heater with high temperature interlock Low-wattage high incoloy sheathed heater for efficient regeneration. Heater high temperature with interlock alarm provides continuous monitoring of heater sheath temperature. The heater will de-energize in a high temperature condition.
3.High Efficiency Centrifugal Blower Reliable, quiet generation of purge air. Intake filter is positioned for convenient access to facilitate filter element changeout.
4.High performanced desiccants Double fixed bed layers, respectively filled with high performanced activated alumina and molecular sieve.
5.Advanced PLC controller PLC Controlling system executes and monitors all dryer functions, 7’’ Touch screen panel displays dryer status.
6.Dew Point Display Highly accurate ceramic dew point sensor and high dew point alarm.
7.Pressure Gauges Stainless steel gauges, located on each tower, provide visual indication of pressure during drying and regeneration processes.
8.Large Purge Mufflers Large mufflers minimize noise and include built-in safety relief valves.

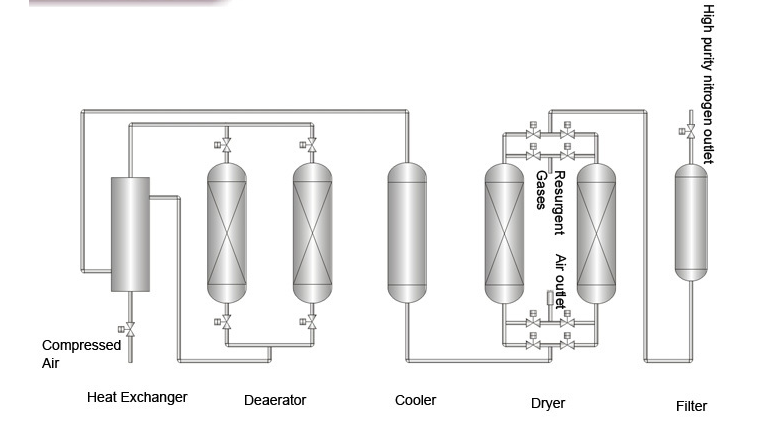

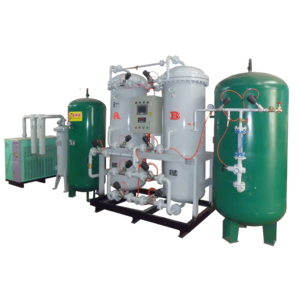

Nitrogen generator system
Brand: TAYQ
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic.
Main Features
Name: Cylinder
Brand: TAYQ
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | 2500*1800*2300mm |
| Weight | 800kg |
| Packaging Details | wooden case or wooden box |
