Product introduction

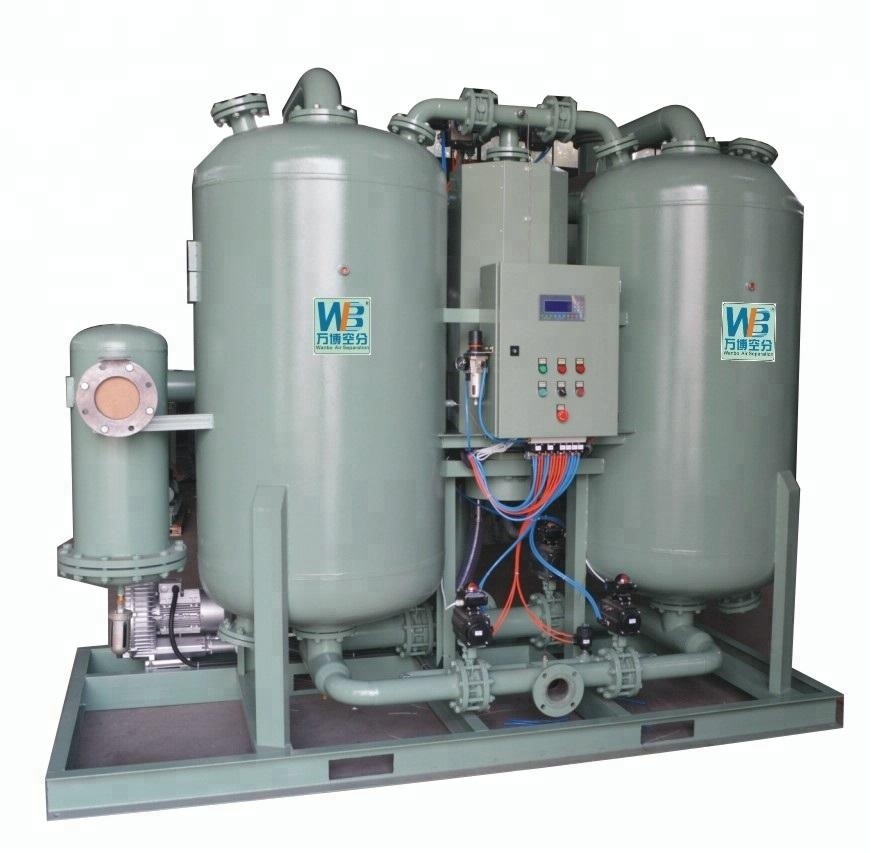

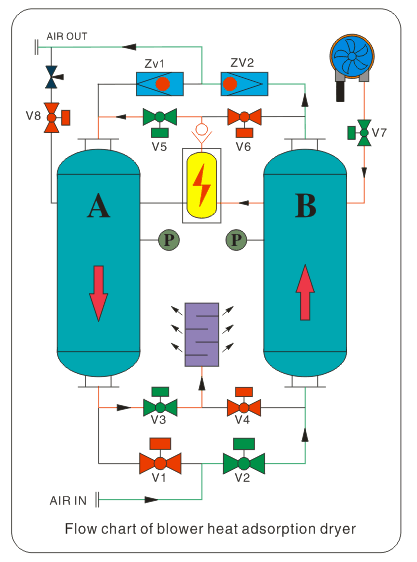

        WGF series blast heat regenerative adsorption dryer (hereinafter referred to as the hot blast) are the main working principle is to use extract ambient air blower, after heating to regenerate the desiccant adsorption tower, avoids the micro heat regenerative adsorption dryer in the heating stage of the product gas loss, was only a small part of the finished product gas purge the stage in consumption, so the overall gas consumption is small, especially suitable for the requirements of renewable gas consumption is small.The equipment is made into a two-cylinder form. Under the control of automatic PLC microcomputer, the two cylinders work alternately and continuously.

Technical features:

1, scientific and reasonable structural design, is a leading technology in the industry the most adsorption tower design, realization of adsorption water thoroughly, cool enough, 30% of the extra adsorbent with compensating adsorbent natural aging, so as to ensure the drum wind hot dryer export dew point and stability.
2, hot blast drying and regeneration of the scheme of reverse convection drying for updraft, make water and heavy pollution load from the airflow when it enters the dry bottom separation, thus preventing the pollution of adsorption bed, making it easier for the pollutants in the adsorption tower decompression eduction closed.
3. Special air flow diffusion device and automatic regeneration ensure the service life of blast heat desiccant.
4. Reasonable heater design, good dehumidification and regeneration effect, low gas consumption, high heating efficiency and maximum energy consumption.
5. The amount of reactivation can be adjusted according to the operating load demand of the equipment to achieve the energy-saving effect.
6. Adopt famous brand disc valve with reliable performance, stable switch and accurate action.
7. Separate flanged filler and discharge nozzle for easy replacement of adsorbent.
8. The reactivation discharge of the blower heat adsorption dryer is equipped with a muffler to reduce the emission noise. The muffler can be moved from the side of the machine to the outside to further avoid the noise pollution to the environment of the machine room.
9. PLC programmable control system is adopted for the control system of blast air and heat purification device.
10. High strength and hygroscopic adsorbent is adopted, with stable dew point, less dust and long service life.

Technical Index：

 inlet pressure: 0.6-1.0MPA

Inlet temperature:≤45℃
Inlet oil content:≤0.01ppm
Environmental temperature: ≤35℃

Pressure dew point：-40℃

Regenerated gas consumption：≤3%
